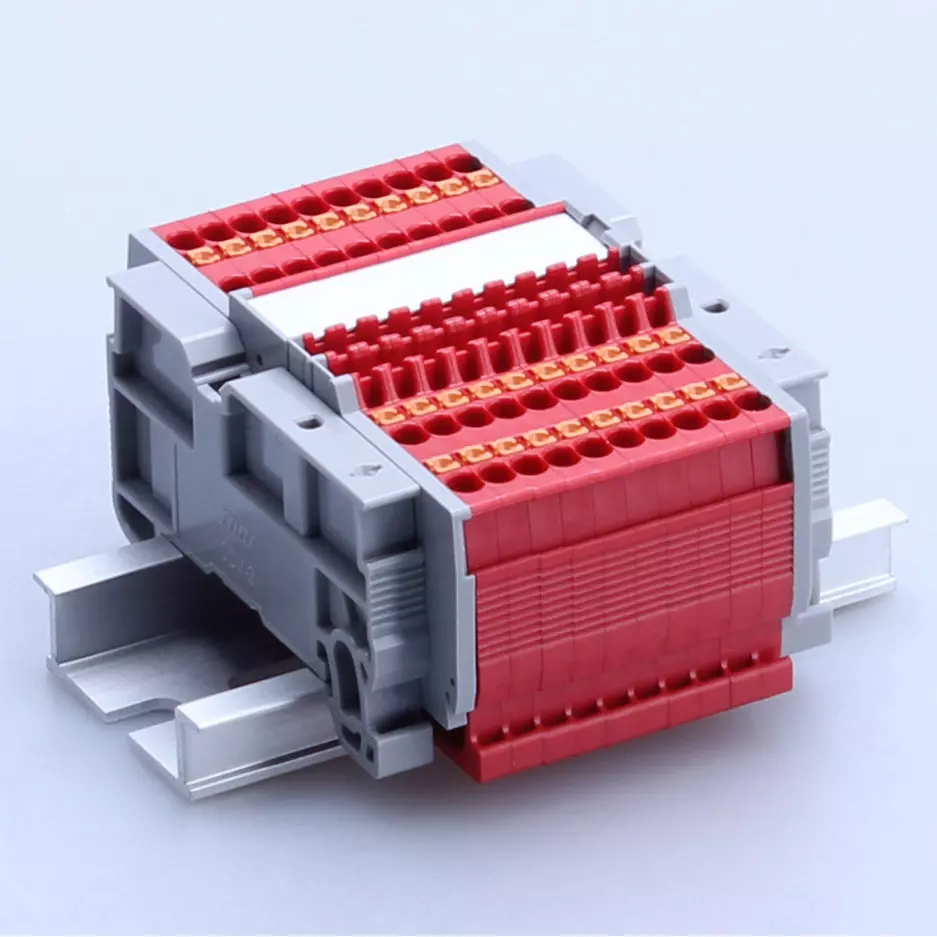

| Model No | VTXL-1.5/4R-7P |
| Type of Product | Assembly Terminal Block |
| Shape | 1 Stage |
| Monotaro ID | 59066388 |
Model No |
VTXL-1.5/4R-7P |
Type of Product |
Assembly Terminal Block |
Shape |
1 Stage |
Monotaro ID |
59066388 |
No. of Pole |
7 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
DIN35 mm |
Applicable crimp terminal |
DIN46228-4 compliant |
Terminal Spacing |
3.5 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Spring Lock |
Overall Length L |
Terminal block: 28.5 mm |
Overall Length (mm) |
Terminal block: terminal width (3.5) x number of poles (P) + 2 side plates (4) |
Mounting Screw Spacing (mm) |
B：50 |
Constitution |
[Intermediate Panel] VTX-1.5/4 [Side Panel] VTX-1.5/4E, VTX-1.5/4E1 [Name Plate] AM-10 [Rail] DAV4 [Fastener] SDV-3 |
Wire Stripping Length |
10 to 11 mm |
Rail Length |
A：60 mm |
