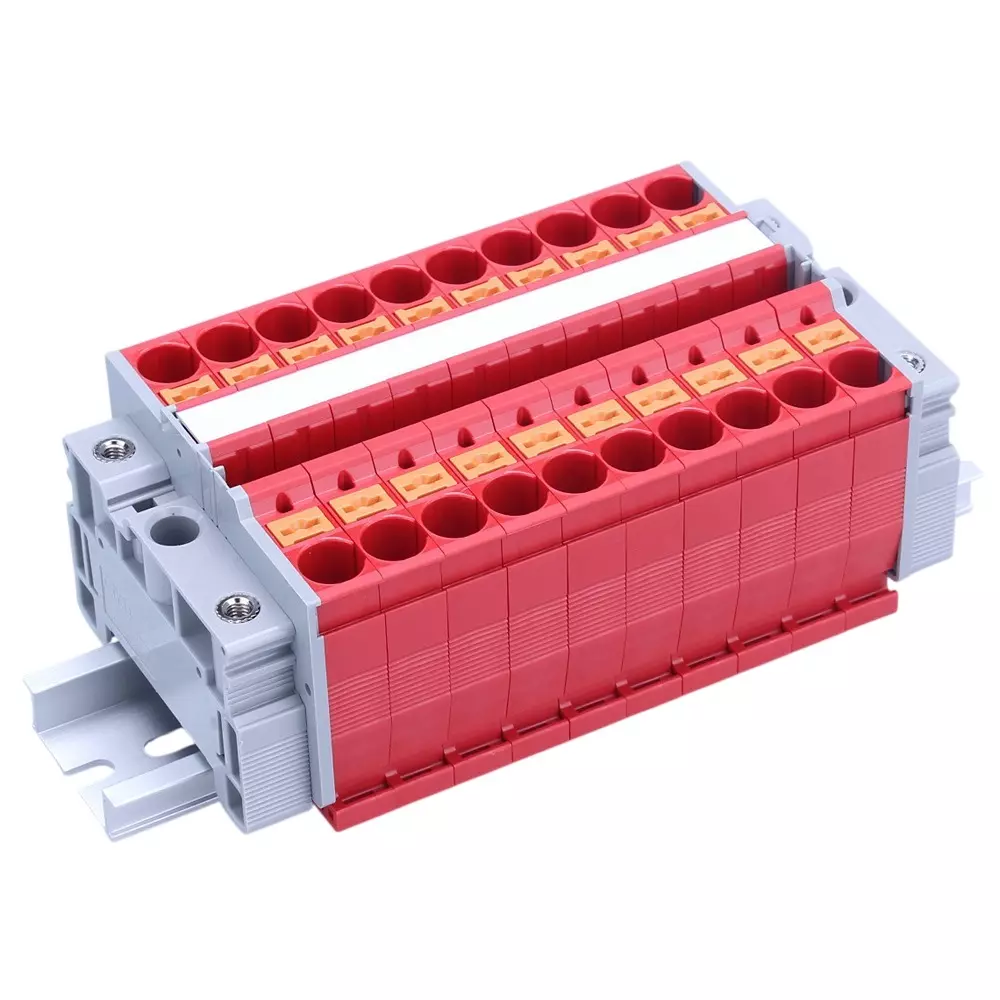

| Model No | VTXL-10/2R-76P |
| Color | Red |
| Type of Product | Assembly Terminal Block |
| Shape | 1 Stage |
Model No |
VTXL-10/2R-76P |
Color |
Red |
Type of Product |
Assembly Terminal Block |
Shape |
1 Stage |
Monotaro ID |
61018155 |
No. of Pole |
76 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Compatible Cable |
0.5 to 10 |
Applicable crimp terminal |
DIN46228-4 compliant |
Rated Insulation Voltage (V) |
AC DC1000, UL/cUL certified specifications: AC DC600, TUV certified specifications: AC DC1000 |
Terminal Spacing |
10.2 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Spring Lock |
Rated Carrying Current (A) |
57, UL/cUL certified specifications: 60, TUV certified specifications: 57 |
Overall Length L |
779.6 mm |
Type of Terminal Fitting |
DIN35mm |
Applicable Wire Size |
UL/cUL certified specifications: AWG20 to 6 (stranded wire), AWG20 to 10 (solid wire), AWG16 to AWG8 (insulated ferrule), TUV certified specifications: 0.5 mm²to 10 mm²(stranded wire), Φ0.5 mm to Φ3.2 mm (solid wire), 1.25 mm²to 10 mm²(insulated ferrule) |
Wire Stripping Length |
18 to 19 mm |
