Ships within 25 days
View
View
View
View

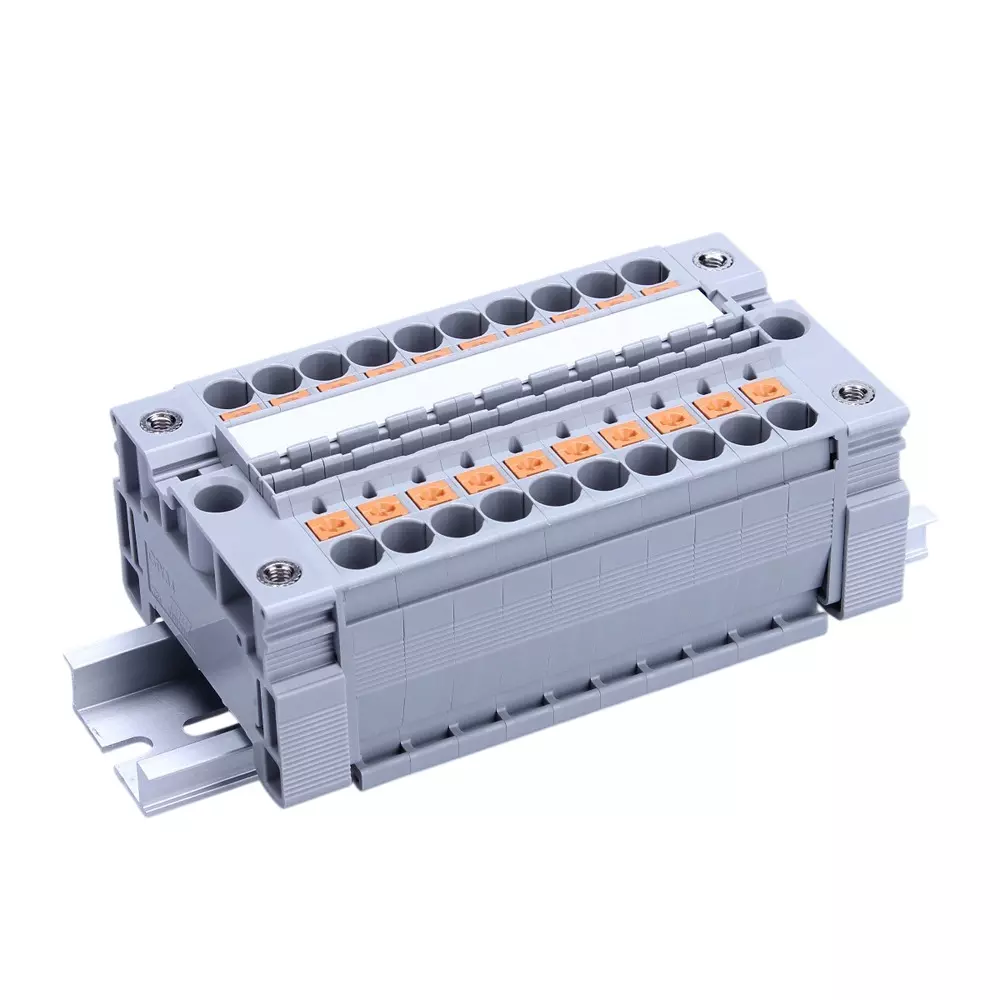

| Model No | VTXL-6/2-40P |
| Color | Gray |
| Type of Product | Assembly Terminal Block |
| Shape | 1 Stage |
Model No |
VTXL-6/2-40P |
Color |
Gray |
Type of Product |
Assembly Terminal Block |
Shape |
1 Stage |
Monotaro ID |
71007645 |
No. of Pole |
40 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Applicable crimp terminal |
DIN46228-4 compliant |
Rated Insulation Voltage (V) |
AC・DC 1000 |
Terminal Spacing |
8.2 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Spring Lock |
Cable Size |
0.75, 1.5, 2.5, 4, 6 |
Overall Length (mm) |
[Terminal block] 332.4 |
Component Part |
Intermediate plate: VTX-6/2, Side plates: VTX-6/2E, VTX-6/2E1, Nameplate: AM-10, Rail: DAV4, Fasteners: GTY34 |
Type of Terminal Fitting |
DIN35mm |
Wire Stripping Length |
12 to 13 mm |
