| Type | Interface compatible PLC / K-CPU |
| Model No | PCN7-1H40-TB40-K-CPU |

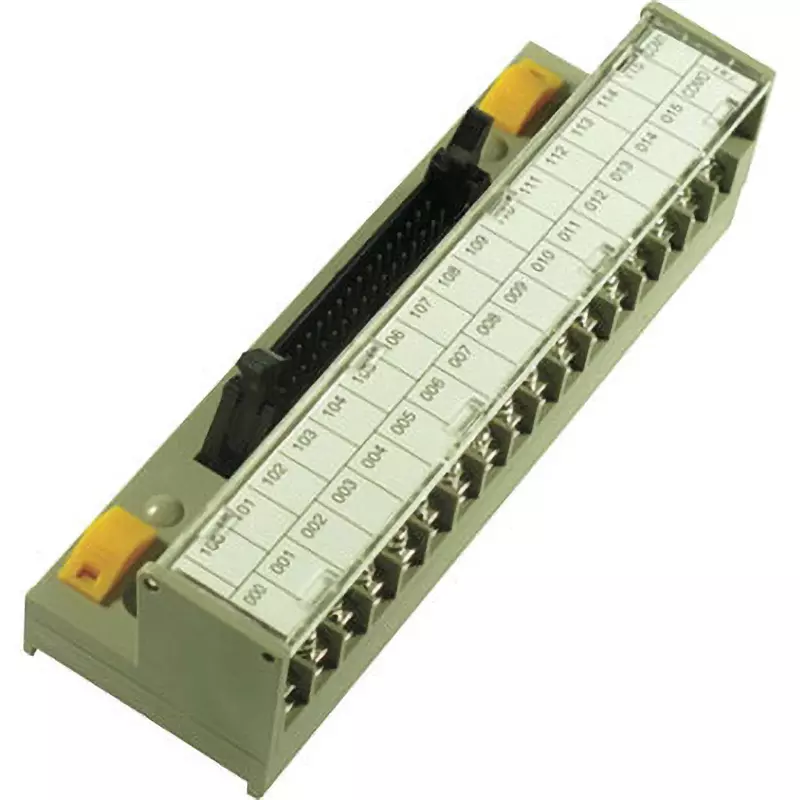

| Type of Product | Connector Terminal (PCN7 Series) PLC Compatible Type |
| Connector | Hirose Electric Co., Ltd./MIL standard connector |
Type |
Interface compatible PLC / K-CPU |
Model No |
PCN7-1H40-TB40-K-CPU |
Type of Product |
Connector Terminal (PCN7 Series) PLC Compatible Type |
Connector |
Hirose Electric Co., Ltd./MIL standard connector |
Monotaro ID |
39383768 |
Tightening Torque (Nm) |
1.2 |
No. of Pole |
40 Pole |
Terminal Screw |
M3 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
DIN Rail / Direct Mounting |
Compatible Cable |
Up to 1.25 |
Rated Insulation Voltage (V) |
125 V AC/DC |
Terminal Spacing |
7 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Operation Ambient Temperature (°C) |
-10 to +50°C (no freezing or condensation) |
Withstand voltage (V / min) |
AC600 |
Trusco Part No. |
451-4220 |
Terminal Connection Type |
Screw / Flat |
Insulation_Resistance (MΩ) |
100 or more (DC500V mega) |
Current Rating, IEC (A) |
1/COM2 |
Current Rating, UL (A) |
1/COM2 |
Current Rating, JIS (A) |
1/COM2 |
