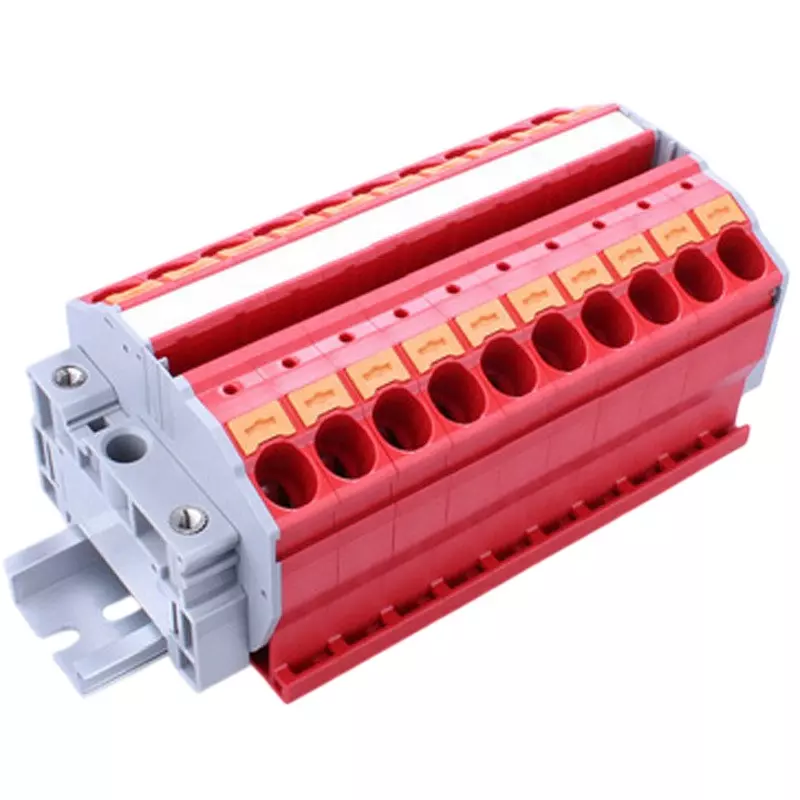

| Model No | VTXL-16/2R-4P |
| Type of Product | Assembly Terminal Block |
| Shape | 1 Stage |
| Monotaro ID | 61053225 |
Model No |
VTXL-16/2R-4P |
Type of Product |
Assembly Terminal Block |
Shape |
1 Stage |
Monotaro ID |
61053225 |
No. of Pole |
4 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Terminal Block |
Terminal width (12.2mm) x number of poles (P) + 2 side plates (4.4mm) |
Rated Insulation Voltage (V) |
1000 V |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Spring Lock |
Rated Carrying Current (A) |
24 / 32 / 41 / 57 / 76 A |
Mounting Hole Spacing |
90 |
Component Part |
[Intermediate Panel] VTX-16/3 [Side Panel] VTX-16/3E, VTX-16/3E1 [Name Plate] AM-10 [Rail] DAV4 [Fastener] GTY34 |
Rail Length |
100 mm |
Terminal Block Used |
VTX-16/2R |
