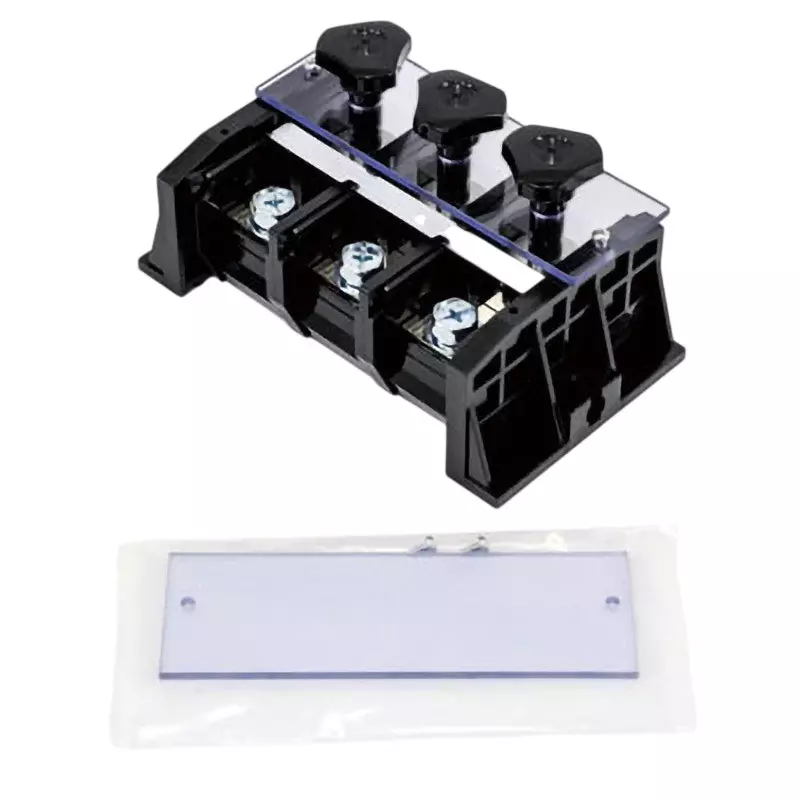

| Model No | NW-203CT |
| Type of Product | Temporary Knob Terminal Block (NW Series) |
| Standard | JIS C 2811 |
| Relative Humidity | 45 to 65% |
Model No |
NW-203CT |
Type of Product |
Temporary Knob Terminal Block (NW Series) |
Standard |
JIS C 2811 |
Relative Humidity |
45 to 65% |
RoHS Directive |
Correspondence |
Monotaro ID |
87048622 |
Tightening Torque (Nm) |
Tighten screw Side / 14.7, hand tightening Side / 2 or more |
No. of Pole |
3 Pole |
Terminal Screw |
M10 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Direct Attachment |
Compatible Cable |
22/60/150 |
Rated Insulation Voltage (V) |
600 V AC/DC |
Terminal Spacing |
47 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Operation Ambient Temperature (°C) |
-25 to +60°C (no freezing or condensation) |
Terminal Connection Type |
screw |
Current Rating, JIS (A) |
60/100/200 |
Tightening Screw |
Screw side / M10 ± Hexagon bolt with SW / SP, Hand tightening side / M8 knob bolt |
