Ships within 25 days
View
View
View
View

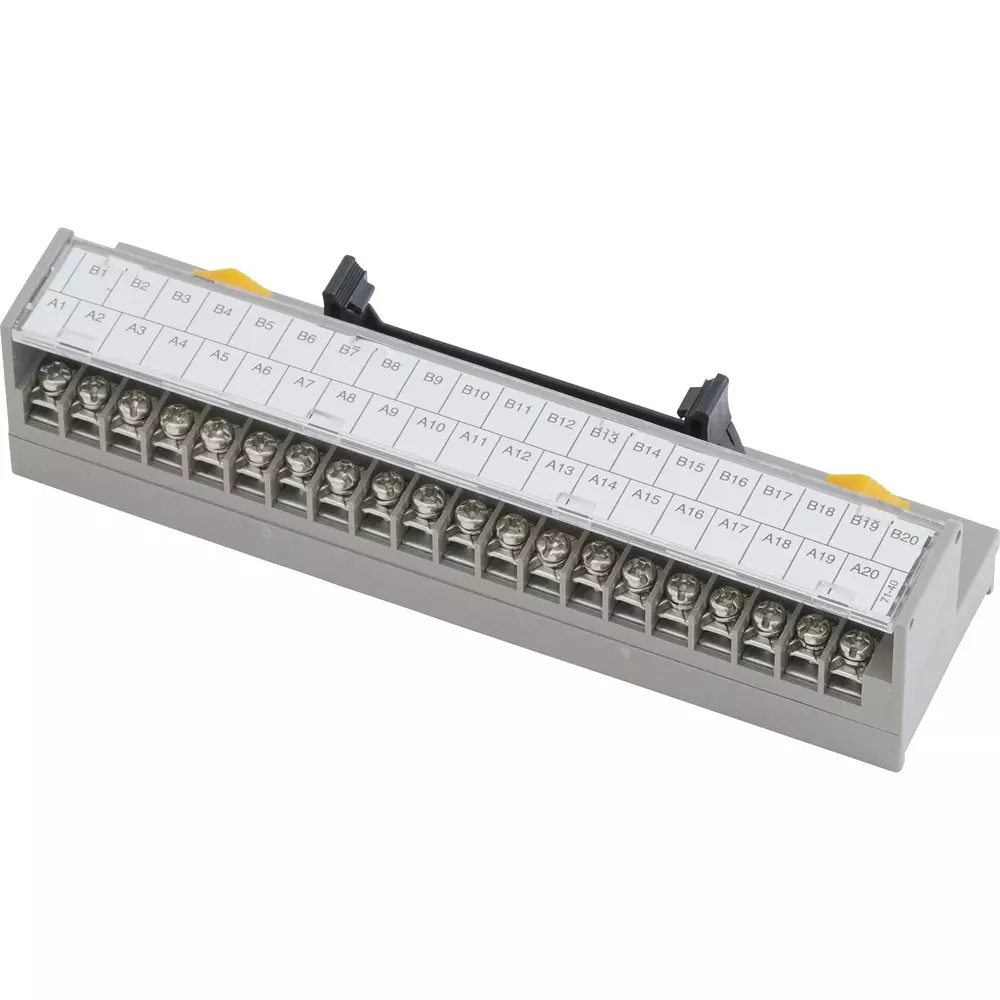

| Model No | PCN7-1T40 |
| Type of Product | Connector Terminal Block (PCN7 Series) |
| Connector | OMRON / XG4M-4031 |
| Material | [Terminal block, case] PPE (gray) UK94V-0 [Substrate] Glass epoxy |
Model No |
PCN7-1T40 |
Type of Product |
Connector Terminal Block (PCN7 Series) |
Connector |
OMRON / XG4M-4031 |
Material |
[Terminal block, case] PPE (gray) UK94V-0 [Substrate] Glass epoxy |
RoHS Directive |
Correspondence |
Dimensions A (mm) |
149 |
Monotaro ID |
87059007 |
Tightening Torque (Nm) |
1.2 |
No. of Pole |
40 Pole |
Terminal Screw |
M3×9.5 |
Dimensions B (mm) |
110 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
DIN Rail / Direct Mounting |
Compatible Cable |
Up to 1.25 |
Rated Insulation Voltage (V) |
125 V AC/DC |
Terminal Spacing |
7 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Operation Ambient Temperature (°C) |
-15 to +60°C |
Withstand voltage (V / min) |
AC600 |
Terminal Connection Type |
Screw / Flat |
Insulation_Resistance (MΩ) |
100 or more (DC500V mega) |
Current Rating, JIS (A) |
1 |
Suitable Sockets |
OMRON Corporation / XG4M-4030 |
