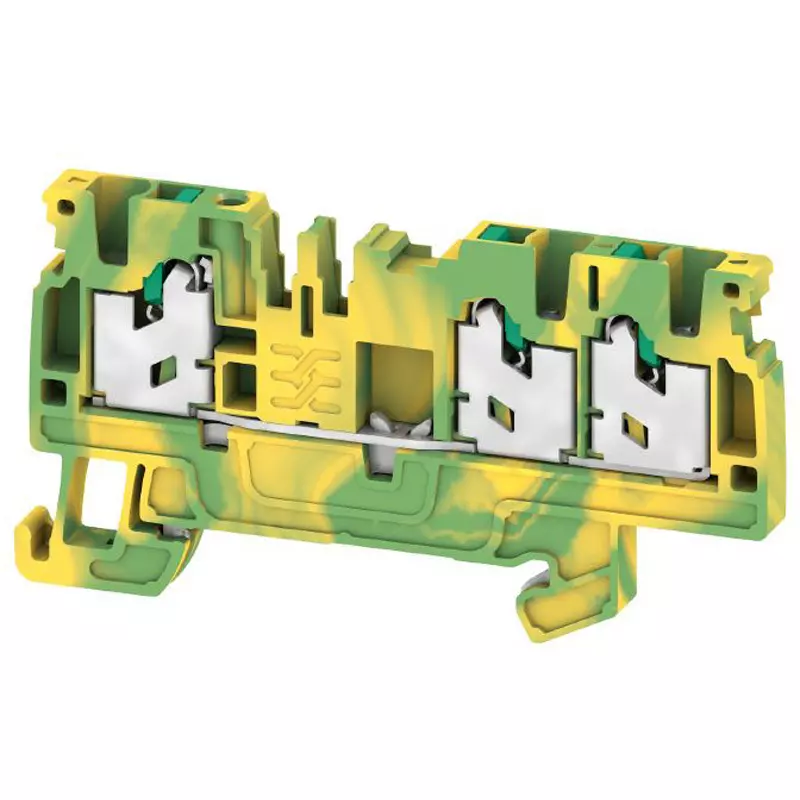

| Model No | 2674570000 S3C 2.5 PE |
| Color | Green/yellow, operating elements: green |
| Type of Product | Terminal Block |
| Material | Wemid |
Model No |
2674570000 S3C 2.5 PE |
Color |
Green/yellow, operating elements: green |
Type of Product |
Terminal Block |
Material |
Wemid |
Width (mm) |
5.1 |
Height (mm) |
71.5 |
Depth (mm) |
38 |
Suitable For |
N function: No, PE function: Yes, PEN function: No, Conductor cross section: (Max) AWG 14 |
RoHS Directive |
Correspondence |
Monotaro ID |
9436790 |
Length (mm) |
37.9 |
No. of Pole |
3 |
Number of Level |
1 |
Country of Origin |
Japan |
Maximum Operating Temperature |
Consecutive: 130℃ |
Minimum Operating Temperature |
-60℃ |
Import Country |
Direct Import from Japan |
Storage Temperature |
-25 ...55℃ |
Suitable Rails |
TS 35 |
Name of Manufacturer/Packer/Importer |
Japan Weidmüller Co., Ltd. |
Mass (g) |
13.699 |
Conform to |
End cover plates required: Yes, Number of clamping points per level: 3, Internally cross-connected levels: No, Number of potentials per layer: 1, Standard: IEC 60947-7-2, Number of potentials: 1 |
Wiring Connections |
Cross section: (minimum) AWG 22 |
Accuracy Grade |
UL 94 Flammability: V-0 |
