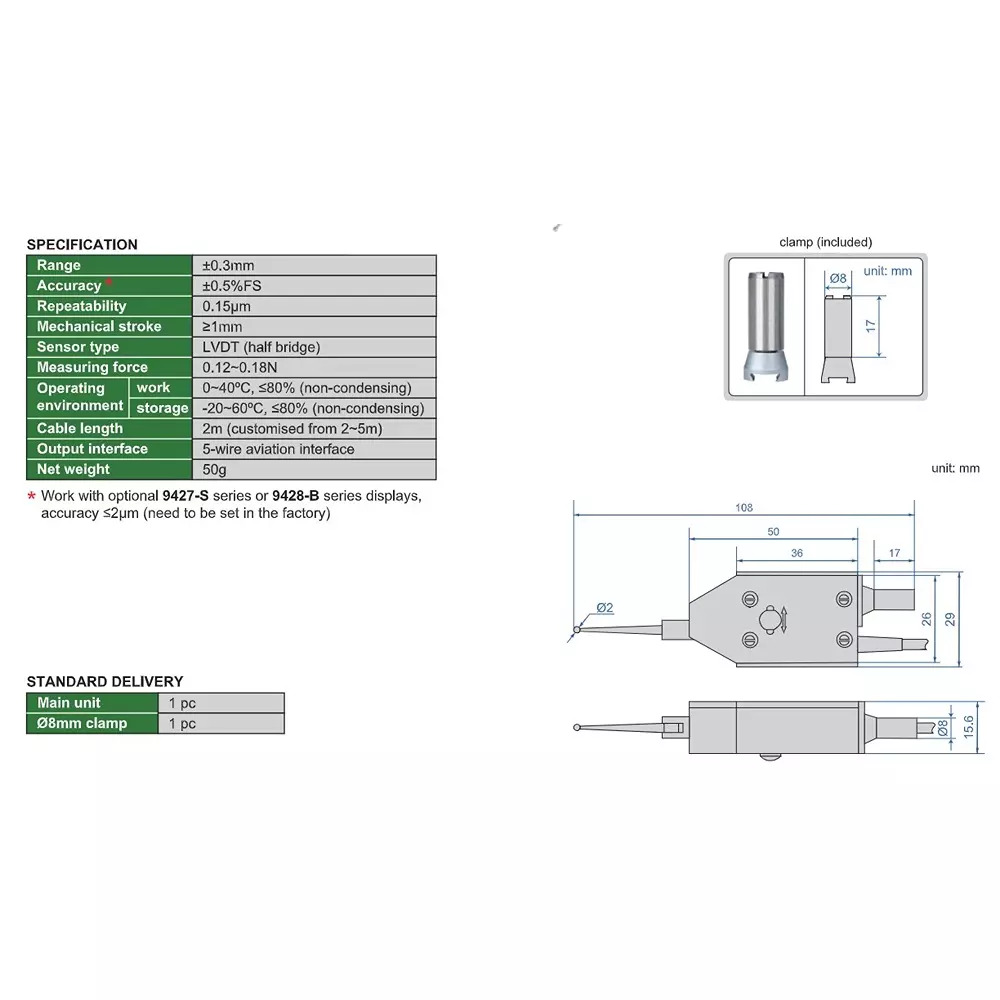

| Type | Lever Type |
| Country of Origin | China |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
Type |
Lever Type |
Country of Origin |
China |
Operating Temperature |
0°C to 40°C |
Storage Temperature |
-20°C to 60°C |
Repeatability |
0.15 µm |

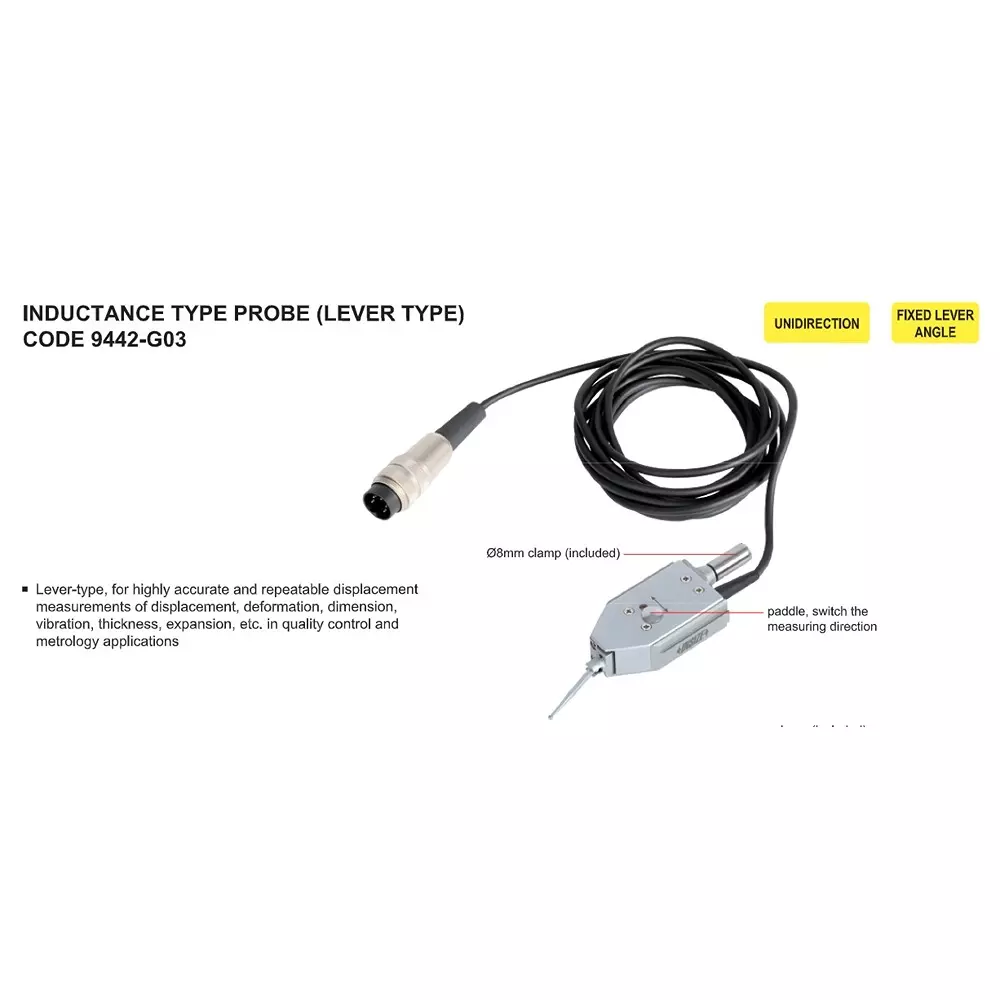

Type of Product |
Inductance Type Probe |
Range |
±0.3 mm |
Accuracy |
±0.5% FS |
Package Contains |
1 x Main Unit, 1 x 8 mm Clamp |
Cable Length |
2 m |
Model No |
9442-G03 |
Sensor Type |
lvdt (half bridge) |
Stroke |
Mechanical: ≥ 1 mm |
Measuring Force |
0.12 - 0.18 N |
Operating Humidity |
< 80% RH (Non Condensing) |
Name of Manufacturer/Packer/Importer |
INSZIE |
Storage Humidity |
≤ 80% RH, Non Condensing |
output interface |
5 Wire Aviation Interface |
Net Weight |
50 g |
