| Country of Origin | China |
| Power Supply | 24 V DC |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 50°C |
Country of Origin |
China |
Power Supply |
24 V DC |
Operating Temperature |
0°C to 40°C |
Storage Temperature |
-20°C to 50°C |
Repeatability |
Overall: 0.3 µm |
Type of Product |

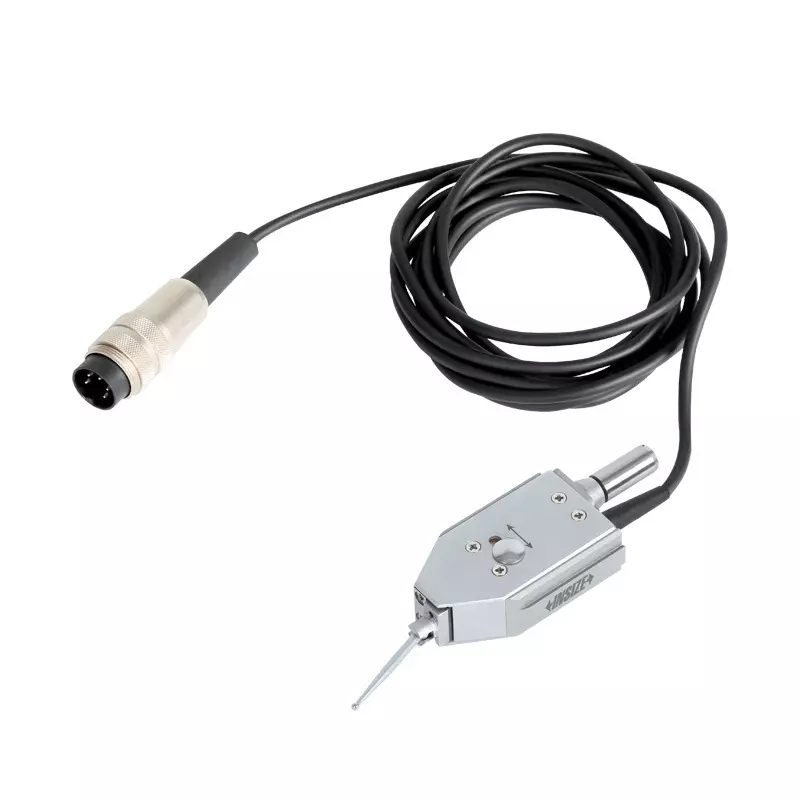

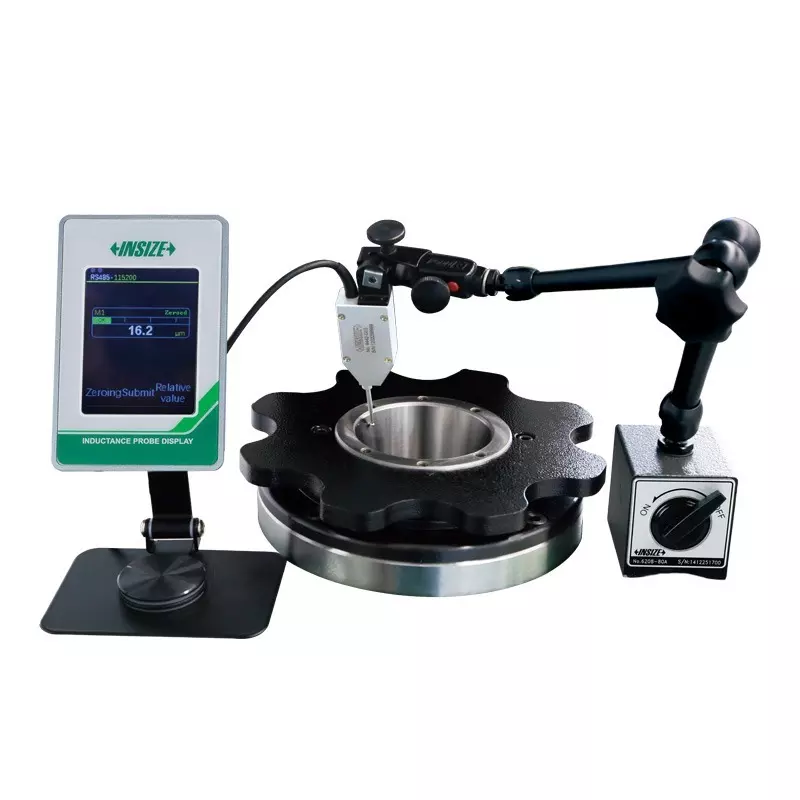

Inductance Type Probe & Display Unit |
Range |
±0.3 mm |
Resolution |
0.1, 1 μm |
Accuracy |
Overall: ± 2 µm |
Package Contains |
1 x Main Unit, 1 x Power & RS485 Cable, 1 x Stand |
Dimension |
113x73x30 mm |
Model No |
9442-SET1 |
Operating Humidity |
< 80% RH (Non Condensing) |
Name of Manufacturer/Packer/Importer |
INSZIE |
Storage Humidity |
≤ 80% RH, Non Condensing |
Net Weight |
252 g |
Channel |
1 |
Units |
μm, mm |
Display Mode |
Banner Display, Dial Display |
Display Type |
3.5 inch (88.9 mm) Touchable LCD Screen |
Communication Ports |
RS485 (Modbus RTU) |
Sampling time |
2, 4, 8, 16, 32 (Adjustable) |
