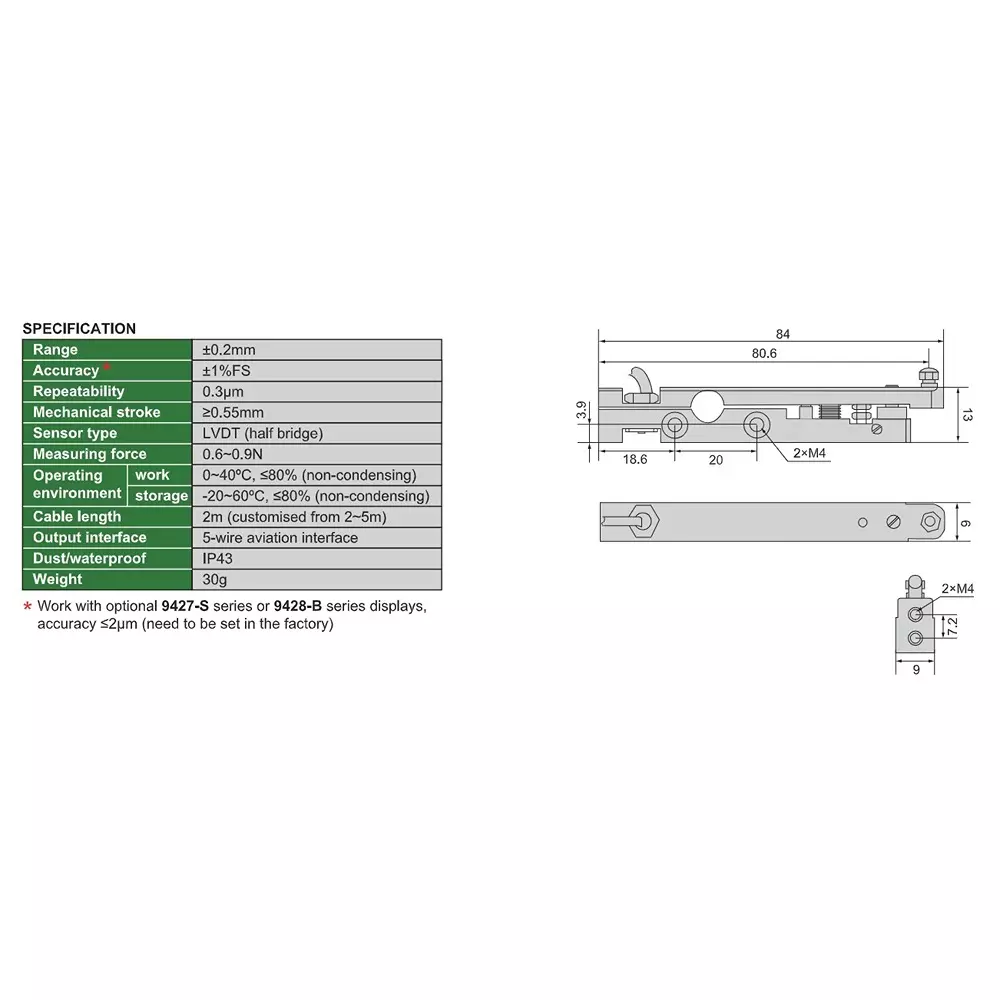

| Type | Spring Loaded Type |
| Country of Origin | China |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
Type |
Spring Loaded Type |
Country of Origin |
China |
Operating Temperature |
0°C to 40°C |
Storage Temperature |
-20°C to 60°C |
Repeatability |
0.3 µm |
Type of Product |

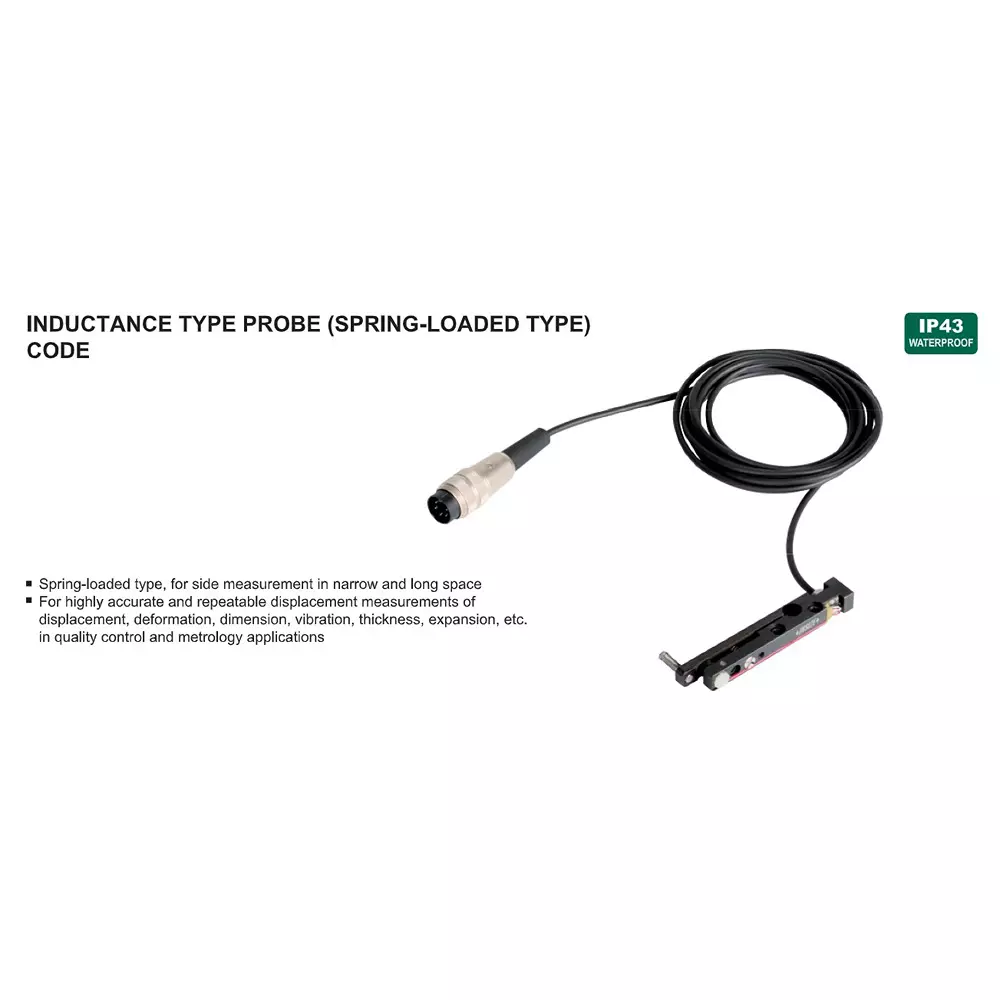

Inductance Type Probe |
Weight |
30 g |
Range |
±0.2 mm |
Accuracy |
±1% FS |
Cable Length |
2 m |
Usage For |
Side measurement in narrow and long space |
Model No |
9443-L02 |
Sensor Type |
lvdt (half bridge) |
IP Rating |
IP43 |
Stroke |
Mechanical: ≥ 0.55 mm |
Measuring Force |
0.6 - 0.9 N |
Operating Humidity |
< 80% RH (Non Condensing) |
Name of Manufacturer/Packer/Importer |
INSZIE |
Storage Humidity |
≤ 80% RH, Non Condensing |
output interface |
5 Wire Aviation Interface |
