Depth Micrometer

Everything About Depth Micrometer

A depth micrometer is a precision measuring instrument used to measure the depth of holes, slots, shoulders, and other projections. It consists of a base, a spindle, a thimble, and a ratchet. The base is placed on the surface to be measured, and the spindle is extended into the hole or slot. The thimble is turned until the spindle touches the bottom of the hole or slot. The measurement is then read from the thimble and the scale. Depth micrometres are used in a variety of industries, including manufacturing, engineering, and construction. They are an essential tool for accurate measurement of depth.

When should you use a depth micrometer?

A depth micrometre, also known as a depth gauge micrometre or deep gauge, is an essential tool for precise depth measurement in various industries. Here are some scenarios where a deep gauge proves invaluable:

a. Machining Operations: Depth micrometres are crucial for measuring the depth of holes, grooves, or recesses during machining processes, ensuring accurate and consistent results.

b. Woodworking and Carpentry: Whether you're creating mortises, checking dowel hole depths, or ensuring precise dado cuts, a deep gauge is indispensable for achieving the desired measurements.

c. Metalworking: From checking the depth of threads to measuring the depth of metal components, a depth micrometer helps maintain precision in metalworking tasks.

d. Engineering and Fabrication: Engineers and fabricators rely on depth micrometres to accurately measure the depths of channels, slots, and other critical dimensions in their designs.

e. Quality Control: Depth micrometres are essential in quality control processes, enabling inspectors to ensure that components meet specific depth specifications and tolerances.

Using a deep gauge helps you achieve unparalleled accuracy and in-depth gauging, guaranteeing the integrity and precision of your work. Explore our wide range of depth micrometres and complement your measurement arsenal with other related tools such as inside micrometres, outside micrometres, and micrometer accessories.

How does a depth micrometer work?

Here's a breakdown of how a deep gauge operates:

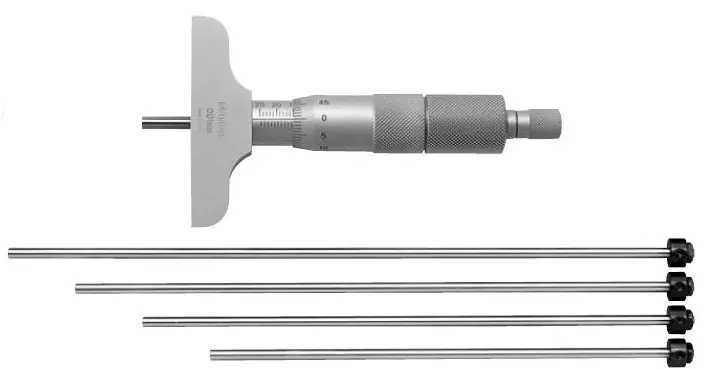

Construction: A deep gauge consists of a sturdy frame with a calibrated screw mechanism. It typically includes a base, a thimble, and a measuring rod.

1. Measurement Process:

• a. Set-Up: Place the base of the depth micrometre on the surface to be measured and secure it in position.

• b. Adjust: Rotate the thimble to move the measuring rod downward until it gently touches the surface.

• c. Read the Measurement: Read the measurement on the thimble scale or digital display, depending on the type of depth micrometre.



2. Precision and Accuracy:

• a. Calibrated Screw: The calibrated screw mechanism ensures precise movement of the measuring rod for accurate depth measurements.

• b. Vernier Scale (optional): Some depth micrometres feature a vernier scale, allowing for even finer measurement resolution.

• c. Applications: Depth micrometres are utilized in various industries, including machining, woodworking, metalworking, and engineering, for measuring hole depths, grooves, recesses, and more.



Enhance your measurement capabilities by exploring our range of depth micrometres and complementing them with other essential tools like inside micrometres, outside micrometres, and micrometre accessories.

Why are depth micrometers important in precision measurement?

Here are the key reasons why deep gauge play a crucial role in precision measurement:

a. Accuracy: Deep gauge provide exceptional accuracy, enabling precise measurement of depths with high reliability and repeatability.

b. Versatility: These depth measurement instrument are versatile and can be used across different applications, such as machining, woodworking, metalworking, and engineering, making them indispensable in various industries.

c. Depth Gauging: Depth micrometers specialize in measuring depths of holes, grooves, recesses, and other critical dimensions, ensuring components meet specific depth specifications.

d. Quality Assurance: By using deep gauge, manufacturers can maintain quality control by verifying the accuracy and consistency of depth measurements during production processes.

e. Efficiency: Deep gauge offer quick and efficient measurements, allowing professionals to save time and increase productivity in their respective fields.

f. Compatibility: Depth micrometres can be complemented with other measuring tools like inside micrometres, outside micrometres, and micrometre accessories to provide comprehensive measurement capabilities.

What are the different types of depth micrometers?

It is also known as deep gauge or deep gauges, and comes in various types, each catering to specific measurement needs. Here are the key types of deep gauges available:

a. Mechanical Deep Gauge: These traditional depth micrometers use a calibrated screw mechanism for precise depth gaugings. They require manual adjustments for accurate readings.

b. Digital Deep Gauge: Featuring an electronic display, digital deep gauge provide instant and accurate measurements, eliminating the need for manual interpretation.

c. Vernier Deep Gauge: These micrometers incorporate a vernier scale, enabling users to obtain finer resolution measurements for enhanced precision.

d. Dial Deep Gauge: Dial depth gauge micrometers employ a dial gauge, simplifying measurement readings by directly displaying the depth value on the dial face.

e. Three-Point Deep Gauge: Designed specifically for measuring the depth of grooves or recesses, these micrometers utilize three contact points to ensure accurate and consistent readings.

Who can benefit from using a depth micrometer?

There are some beneficiaries of using a deep gauge. Let’s explore:

a. Machinists and Engineers: Professionals in the machining and engineering industries benefit from deep gauge to accurately measure hole depths, grooves, and recesses in their precision manufacturing processes.

b. Woodworkers and Carpenters: Deep gauge are essential for woodworking and carpentry tasks, allowing craftsmen to achieve precise depth measurements for mortises, dowel holes, and dado cuts.

c. Metalworkers: Metalworking professionals rely on depth gaugemicrometers to measure the depth of threads, channels, and critical dimensions in metal components.

d. Quality Inspectors: Inspectors in various industries use deep gauge to ensure components meet specific depth specifications and tolerances, maintaining quality control.

e. DIY Enthusiasts: Hobbyists and DIY enthusiasts who work with intricate projects, such as model building or fine woodworking, can benefit from the precision and accuracy offered by depth gauge micrometers.

Browse the landing page to discover a wide range of deep gauge, along with additional tools like outside micrometers, internal micrometers, gages and micrometer tools. Elevate your depth gauging capabilities and achieve superior precision in your respective field or hobby.

What are the advantages of using a depth micrometer?

a. High Accuracy: They provide exceptional precision, ensuring accurate and reliable depth gaugings.

b. Versatility: These depth measurement instrument are suitable for a wide range of applications across industries such as machining, woodworking, metalworking, and engineering.

c. Ease of Use: They are user-friendly, with clear markings and intuitive operation, making them accessible to both professionals and beginners.

d. Time Efficiency: They enable quick measurements, saving valuable time and increasing productivity in various tasks.

e. Durability: Constructed with high-quality materials, depth gauge micrometers are durable and resistant to wear and tear, ensuring long-lasting performance.

f. Portability: Many deep gauge are compact and lightweight, making them easily portable for on-site measurements or fieldwork.
