Digital Leakage Current Clamp

What is a Digital Leakage Current Clamp?

It is an electronic device that measures electrical leakage flow through a conductor. It is an electrical testing instrument used to measure the amount of electrical leakage in a circuit or equipment. It is also known as an earth leakage tester or current probe. The device is commonly used to detect and measure electrical leakage in appliances, machinery, and electronic devices.

Some features of the Current Clamp include:

1. Ability to measure low-level leakage currents

2. Provides accurate and reliable measurements

3. Easy to use and portable

If you are looking for an earth leakage clamp meter or leakage current meter, the Current Clamp is a great option. Other popular options include the Fluke earth leakage tester and the earth leakage meter.

How does Digital Leakage Current Clamp work?

The Current Clamp is an electrical testing instrument that measures the amount of electrical leakage in a circuit or equipment. The Current Clamp is designed to be clamped around a conductor or wire to measure the current flowing through it. This device is also known as an earth leakage tester or current probe.

Here's how it works:

1. The clamp meter is clamped around the conductor or wire

2. The clamp senses the magnetic field generated by the current flowing through the conductor or wire

3. The clamp converts the magnetic field into an electrical signal

4. The signal is then processed and displayed on the meter, providing an accurate reading of the electrical leakage or current flow.

The Current Clamp is popular for measuring electrical leakage and current flow in appliances, machinery, and electronic devices. Other popular options include the earth leakage clamp meter, earth leakage meter, earth leakage clamp, fluke earth leakage tester, leakage current meter, and leakage current measurement.

Where is Digital Leakage Current Clamp commonly used?

The Current Clamps are commonly used in industries and applications to measure electrical leakage and flow. This device is also known as an earth leakage tester or probe. Some typical applications include the maintenance of electrical power systems: The Current Clamps are used in power plants and substations to test the electrical safety of generators, transformers, and switchgear. The clamps can detect electrical leakage in insulation and identify faults that must be addressed.

1. Troubleshooting electrical circuits: The Current Clamps are used to locate the source of current leaks or faults in electrical circuits. These can help electricians and technicians pinpoint the problem area and take corrective action to fix it.

2. Testing the electrical safety of medical equipment: The Current Clamps are used to test the electrical safety of medical equipment and appliances. They are commonly used in hospitals and clinics to ensure the equipment operates within safe electrical parameters.

3. Measuring the earth leakage current in automotive electrical systems: The Current Clamps are used in automotive workshops to measure the earth leakage current in electrical systems. It is essential to ensure that the electrical system is operating within safe parameters and to identify any faults that may be present.

4. Detecting electrical leakage in underground and overhead power lines: The Current Clamps see electrical leakage in underground and overhead power lines. It is essential to ensure that the power lines are not leaking electricity, which can cause damage to the environment and pose a risk to public safety.

There is a wide range of electrical testing instruments, including digital LCR Meter and resistance box.


What are the types of digital leakage current clamps?

The Current Clamps come in various types, each designed to suit different electrical applications. Some common types of Current Clamps are:

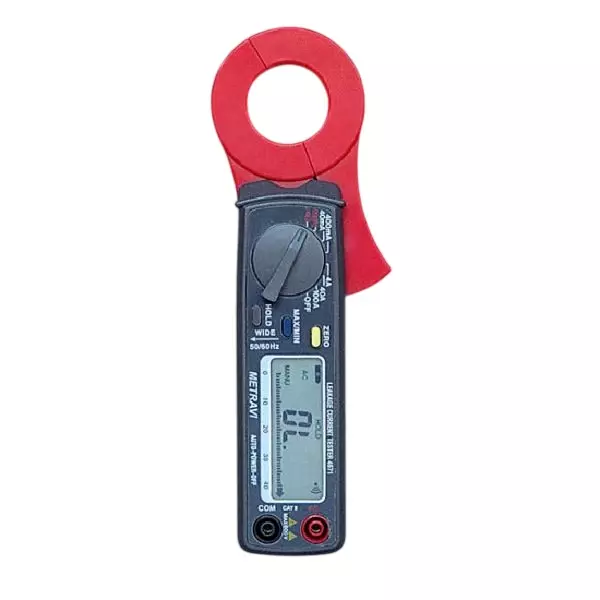

1. AC Leakage Current Clamp Meter: This clamp measures AC leakage current in electrical systems. It is commonly used foto detect ground faults and other issues in power distribution systems.

2. DC Leakage Current Clamp Meter: The current clamp measures DC leakage current in electrical systems. It detects and diagnoses issues with battery systems, solar panels, and other DC-powered equipment.

3. Earth Leakage Clamp Meter: A type of Current Clamp specifically designed to detect earth leakage currents. It is commonly used in electrical safety testing and compliance checks.

4. Fluke Earth Leakage Tester: A highly accurate Current Clamp manufactured by Fluke Corporation. It is designed to measure earth leakage current in low-voltage electrical systems.

5. Clamp-On Leakage Current Meter: A type of Current Clamp that can be attached to the outside of a conductor to measure the leakage current. It is commonly used for non-invasive testing and troubleshooting.

6. True RMS Leakage Current Clamp Meter: The Current Clamp that measures the actual RMS value of the leakage current. It makes it suitable for use in both sinusoidal and non-sinusoidal waveforms.

7. High-Sensitivity Leakage Current Clamp Meter: The current clamps are highly sensitive to small leakage currents. It is commonly used in applications where high accuracy is required, such as in medical equipment and aerospace testing.

8. Low-Resistance Leakage Current Clamp Meter: A type of Current Clamp that can measure low resistance values, typically in the milli-ohm range. It is commonly used in the automotive industry to test the resistance of wiring and connections.

Beside these, you can also find a range of Non-Electrical Properties Testing products available at discounted prices on our website.

What are the advantages of digital leakage current clamps?

1. Accurate measurement of leakage current levels: The current clamps offer precise measurement of electrical leakage, ensuring that any faults in insulation are detected and resolved promptly.

2. Non-intrusive testing without disconnecting circuits: With a clamp design, the current clamps allow for non-intrusive testing without disconnecting circuits or powering down equipment, saving time and minimising disruption to operations.

3. Easy-to-use with one-handed operation: The current clamps are designed for easy one-handed operation, making them convenient to use in various locations.

4. Portable design allows for use in various locations: Compact and lightweight. The current clamps can be used in multiple applications, from power distribution systems to appliances and electronics.

5. Offers a variety of measurement functions: The current clamps provide multiple measurement functions, including AC/DC, resistance, and frequency, making them versatile tools for testing and maintenance.

6. Provides data logging and analysis capabilities: Many current clamps come with data logging and analysis capabilities, allowing for easy tracking and reporting of results.

7. Offers a wide measurement range: The current clamps have a wide measurement range, making them suitable for low and high-existing applications.

8. Detects faults in electrical insulation: By accurately measuring leakage current levels, the current clamps can detect defects in electrical insulation, preventing damage to equipment and electrical systems.

9. Helps prevent damage to equipment and electrical systems: By detecting faults and identifying potential issues before they become significant problems, the current clamps can help prevent damage to equipment and electrical systems.

Visit our website to learn more about these products and more.
