Measuring Tool Accessories

The Chisel Compass is a unique construction tool used by professional carpenters to mark precise hole locations. Place the pivot scribe in position, then simply move around it to create perfect circles and radial lines. Made of 16 in solid fiberglass rod with a carbide tipped point, this compass is built to last.

The STANLEY 200 mm Steel Try Square, identified by model number 2-46-500, is a compact yet powerful tool designed to meet the precision requirements of carpenters, woodworkers, and DIY enthusiasts. With a modest 200 mm size, this try square offers a convenient and portable solution for a variety of layout and marking tasks. Crafted from durable steel, the 2-46-500 model embodies the robustness needed for accurate measurements in diverse woodworking applications. The steel construction ensures the tool's longevity and stability, providing a reliable platform for verifying right angles during layout and assembly tasks. The 200 mm size strikes a balance between ease of handling and functionality, making it suitable for tasks such as marking, squaring, and verifying the squareness of small to medium-sized projects. Equipped with clear and easily readable markings, the 2-46-500 Try Square facilitates precise measurements, contributing to the efficiency and accuracy of woodworking projects. The tool's compact design enhances its versatility, allowing it to be easily carried and utilized in various work environments. Whether used by professionals in carpentry or by individuals engaged in DIY projects, this try square reflects STANLEY's commitment to delivering reliable, high-quality tools that cater to the diverse needs of users across a range of precision tasks in woodworking and construction.

The Kusam-Meco Magnetic Hanger for Multimeter is a versatile accessory designed to enhance the convenience and usability of multimeters in various electrical testing scenarios. This innovative hanger provides a secure and convenient solution for hands-free operation, allowing users to effortlessly suspend their multimeters in strategic locations during testing tasks. Crafted with strong magnetic material, the Kusam-Meco Magnetic Hanger offers a powerful grip, ensuring reliable attachment to metallic surfaces such as electrical panels, cabinets, machinery, and more. This robust magnetic attachment capability enables users to position their multimeters securely at the desired location, minimizing the risk of accidental drops or damage. The hanger features a flexible and adjustable design, allowing users to customize the angle and orientation of their multimeters for optimal visibility and accessibility during testing. This adaptability ensures maximum comfort and efficiency, enabling users to focus on their testing tasks without the hassle of holding or supporting the multimeter manually. Designed for compatibility with a wide range of multimeter models, the Kusam-Meco Magnetic Hanger offers versatility and flexibility in various electrical testing applications. Whether performing measurements in tight or elevated spaces, this accessory provides a practical solution for positioning multimeters in hard-to-reach areas, improving accessibility and safety for users. In addition to its functionality, the magnetic hanger is built with durability in mind, featuring a rugged construction that withstands the rigors of daily use in demanding work environments. Its sturdy design ensures long-lasting performance, making it a reliable companion for professionals and DIY enthusiasts alike. Overall, the Kusam-Meco Magnetic Hanger for Multimeter is an indispensable accessory that enhances the convenience, safety, and efficiency of electrical testing tasks. With its strong magnetic grip, adjustable design, and durable construction, this hanger provides a practical solution for hands-free multimeter operation, empowering users to tackle their testing tasks with confidence and ease.

The Ingco Chalk Line Reel X6 Fast and 30 m Length for Marking Straight Layout Lines, HCLR0630 is designed to draw crisp, unwavering layout lines across long surfaces, letting contractors and DIY builders sketch their intentions onto concrete, wood, or brick. With its 30-metre reach, the reel behaves like a taut whisper guiding carpenters toward straightness, while the fast-retrieval mechanism keeps workflow fluid. The high-visibility chalk delivery ensures clear lines, even in dusty or bright outdoor environments, making the Ingco Chalk Line Reel X6 Fast and 30 m Length for Marking Straight Layout Lines, HCLR0630 a dependable partner for layout marking. Engineered for efficiency, the Ingco Chalk Line Reel X6 Fast and 30 m Length for Marking Straight Layout Lines, HCLR0630 features a durable casing that resists worksite abrasion and rough handling. Its ergonomic form sits comfortably in the hand, supporting long hours of marking without strain. The reel’s fast-wind system reduces idle time, while the precise chalk flow helps maintain consistent thickness along the entire stretch. Whether framing a foundation or aligning tiles, the Ingco Chalk Line Reel X6 Fast and 30 m Length for Marking Straight Layout Lines, HCLR0630 offers reliability that keeps lines sharp and work aligned.

KUSAM-MECO presents Fuse Extractor Head - ADP-HS120. KUSAM-MECO's ADP-HS120 Fuse Extractor Head is a hand operated device designed for the extraction of fuses from electrical equipment. It features an ergonomic pistol grip handle with a trigger mechanism for easier operation and has a maximum fuse diameter of 3/4 inch. The tri-blade extractor head is made of hardened steel with a chrome plated finish and includes two replaceable blades, one for 3/4 inch fuses and one for 1 inch fuses.
The KUSAM-MECO Fuse Extractor Head - ADP-HS120 is a tool that allows technicians to easily remove fuses from electrical panels. With its quick-turn action, the head can be used to remove fuses in any direction and it can also apply pressure to the fuse, which helps ensure the proper removal of a fuse. The extractor head has a durable plastic handle and a rubber grip for easy handling.
We don't often think about fuses. But when they save lives and property, it's worth knowing a little bit about them. The KUSAM-MECO Fuse Extractor Head - ADP-HS120 is one tool for safely removing blown fuses from electrical circuits. It features a blade that can be inserted into the fuse itself to pull it out of the circuit. The blade is made from tempered steel, so you know it's durable, and it's coated in chrome to resist corrosion and wear. There are also two jaws on an adjustable clamp that can be used to pry the fuse out without damaging any of the surrounding wires or components. You'll never accidentally touch a live wire again!

The Kusam-Meco Magnetic Hanger for Insulation Testers is a specialized accessory designed to enhance the convenience and efficiency of insulation testing tasks in electrical maintenance and troubleshooting applications. This innovative hanger offers a practical solution for securely mounting insulation testers, allowing users to perform hands-free testing operations with ease and precision. Crafted with high-quality magnetic material, the Kusam-Meco Magnetic Hanger provides a strong and reliable grip, ensuring secure attachment to metallic surfaces such as electrical panels, cabinets, machinery, and more. This robust magnetic capability enables users to position their insulation testers conveniently at the desired location, minimizing the risk of accidental drops or damage during testing procedures. The hanger features a flexible and adjustable design, allowing users to customize the angle and orientation of their insulation testers for optimal visibility and accessibility during testing tasks. This adaptability ensures maximum comfort and efficiency, enabling users to focus on their testing procedures without the hassle of holding or supporting the tester manually. Designed for compatibility with a wide range of insulation tester models, the Kusam-Meco Magnetic Hanger offers versatility and flexibility in various electrical insulation testing applications. Whether conducting insulation resistance tests on electrical equipment, cables, or wiring installations, this accessory provides a practical solution for positioning testers in hard-to-reach or elevated areas, improving accessibility and safety for users. In addition to its functionality, the magnetic hanger is built with durability in mind, featuring a rugged construction that withstands the rigors of daily use in demanding work environments. Its sturdy design ensures long-lasting performance, making it a reliable companion for professionals in electrical maintenance, inspection, and testing tasks. Overall, the Kusam-Meco Magnetic Hanger for Insulation Testers is an indispensable accessory that enhances the convenience, safety, and efficiency of insulation testing operations. With its strong magnetic grip, adjustable design, and durable construction, this hanger provides a practical solution for hands-free insulation testing, empowering users to conduct accurate and reliable tests with confidence and ease.

The OZAR 57 mm Dia Magnetic Back for Dial Indicator, AMH-4974 is a high-quality accessory designed to securely mount dial indicators in a variety of measurement applications. With a 57 mm diameter, this magnetic back provides a strong and stable base for your dial indicator, ensuring reliable and precise readings during inspections, calibrations, and machining processes. The powerful magnetic force allows for quick and secure attachment to any ferrous surface, making it ideal for use in workshops, manufacturing environments, and other precision measurement tasks.Engineered for durability, the OZAR AMH-4974 magnetic back is constructed from robust materials that provide long-lasting performance, even under heavy use. The magnetic base features an easy-to-use on/off switch for quick activation and removal, while the compact design ensures that it doesn’t take up much space, making it convenient to store and use in tight working conditions. Whether you're performing routine checks or detailed inspections, this magnetic back provides the stability and support you need for accurate, repeatable measurements.

The Insize Dial Test Indicator Holder 0-200 mm +0.03mm, 7151-CL1, also known as a test indicator stand or holder arm, is an essential tool used in conjunction with dial test indicators to facilitate precise and stable measurements. These holders are designed to securely position the dial test indicator and ensure its stability during measurement tasks. They are widely employed in machining, quality control, and inspection processes to enhance the accuracy of measurements. A typical dial test indicator holder consists of a robust base, an adjustable arm, and a clamping mechanism. The base provides stability and support on a flat surface, while the adjustable arm allows for positioning the dial test indicator at the desired angle, height, and orientation. The clamping mechanism secures the indicator in place, preventing movement during measurements. Key features and applications of dial test indicator holders include: Stability: The holder arm ensures that the dial test indicator remains steady and prevents unintended movement, contributing to measurement accuracy. Versatility: These holders allow for precise positioning of the indicator, making them suitable for various measurement tasks, including surface flatness checks, runout measurements, and alignment procedures. Flexibility: They are designed to be adjustable, enabling users to set the indicator at the optimal angle and height for the specific measurement. Reproducibility: Dial test indicator holders make it easier to reproduce measurement conditions, ensuring consistency in quality control and inspection processes. Time Efficiency: They improve measurement efficiency by allowing the operator to easily and accurately position the indicator for each measurement. Dial test indicator holders are invaluable tools for ensuring the accuracy and repeatability of measurements performed with dial test indicators. They play a crucial role in a wide range of industries, including manufacturing, machining, and quality control, where precise measurements are essential for maintaining product quality and reliability.

Insize Magnifier with Illumination 2X/6X Magnification and 90 mm Lens Dia, 7519-26 is a specialized optical device designed to provide enhanced visibility and magnification for reading, examining fine details, or performing intricate tasks. It incorporates built-in illumination, typically in the form of LED lights, to provide optimal lighting conditions for the subject being observed or examined. These magnifiers are invaluable tools for a wide range of applications, from reading small print to inspecting jewelry and conducting medical examinations.
Key features and functions of a Magnifier with Illumination:
Magnification: The primary function of a magnifier is to enlarge the size of the subject, making it easier to see and analyze fine details. These devices come in various magnification levels, allowing users to select the appropriate level for their specific needs.
Illumination: A built-in light source, often consisting of energy-efficient LED lights, is integrated into the magnifier. The illumination enhances the visibility of the subject and reduces eye strain, particularly in low-light conditions.
Adjustable Focus: Some magnifiers are designed with adjustable focus settings, allowing users to fine-tune the focus to achieve the clearest and most detailed view of the subject.
Lens Types: Magnifiers with illumination can have different types of lenses, including single lenses, multiple lenses, or even specialized lenses with coatings for reducing glare or enhancing clarity.
Handheld or Stand-Mounted: These magnifiers come in both handheld and stand-mounted configurations. Handheld magnifiers are portable and suitable for on-the-go use, while stand-mounted models provide hands-free operation for tasks that require both hands.
Compact and Portable: Many magnifiers with illumination are designed to be compact and lightweight, making them easy to carry and use in various settings.
Power Source: These devices are typically powered by batteries or rechargeable batteries for portability, while some models are designed to be connected to a power source directly.
Applications of Magnifiers with Illumination:
Reading: Individuals with low vision or those who struggle with small print use these magnifiers for reading books, newspapers, and documents.
Jewelry Inspection: Jewelers and gemologists rely on magnifiers with illumination to inspect gemstones, settings, and fine details in jewelry.
Hobby and Craftwork: Artists, crafters, and hobbyists use these magnifiers for tasks such as model building, stamp collecting, and intricate painting.
Medical Examination: Medical professionals use illuminated magnifiers for physical examinations, wound care, and analyzing tissue samples.
Electronics and PCB Inspection: Engineers and technicians employ these magnifiers for inspecting circuit boards, soldering, and electronic components.
Forensic Analysis: Forensic experts use magnifiers with illumination for detailed examination of evidence and forensic specimens.
Sewing and Needlework: Seamstresses and needleworkers use these devices to see fine stitches and embroidery work more clearly.
Magnifiers with illumination are versatile tools that enhance visual clarity and precision in numerous applications. Their combination of magnification and built-in lighting makes them indispensable for tasks that require meticulous attention to detail and clear vision.

http://www.farnell.com/datasheets/1669380.pdf

http://www.farnell.com/datasheets/1821191.pdf

http://www.farnell.com/datasheets/1821191.pdf

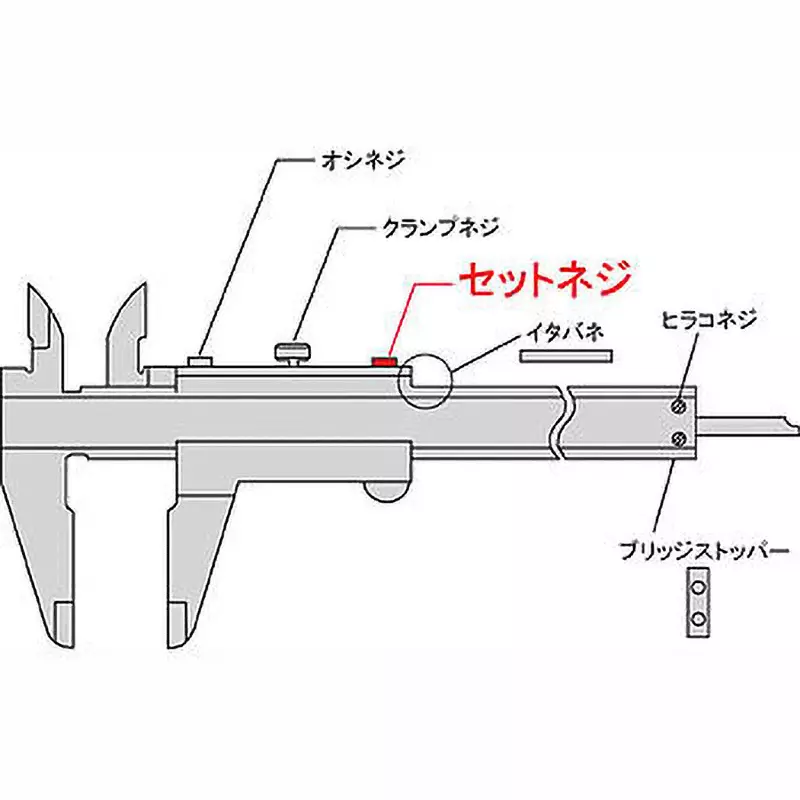

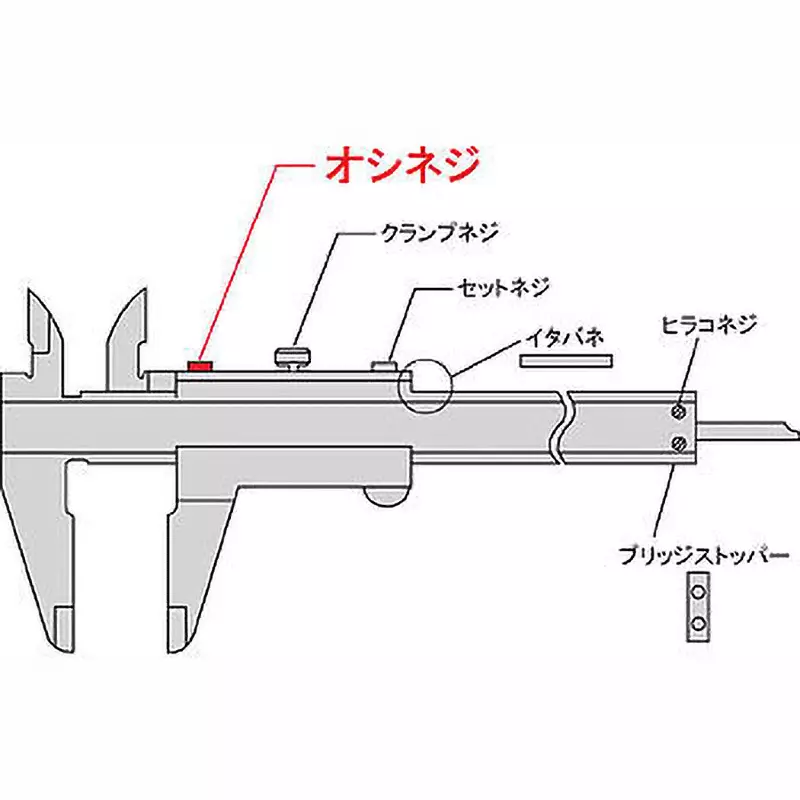

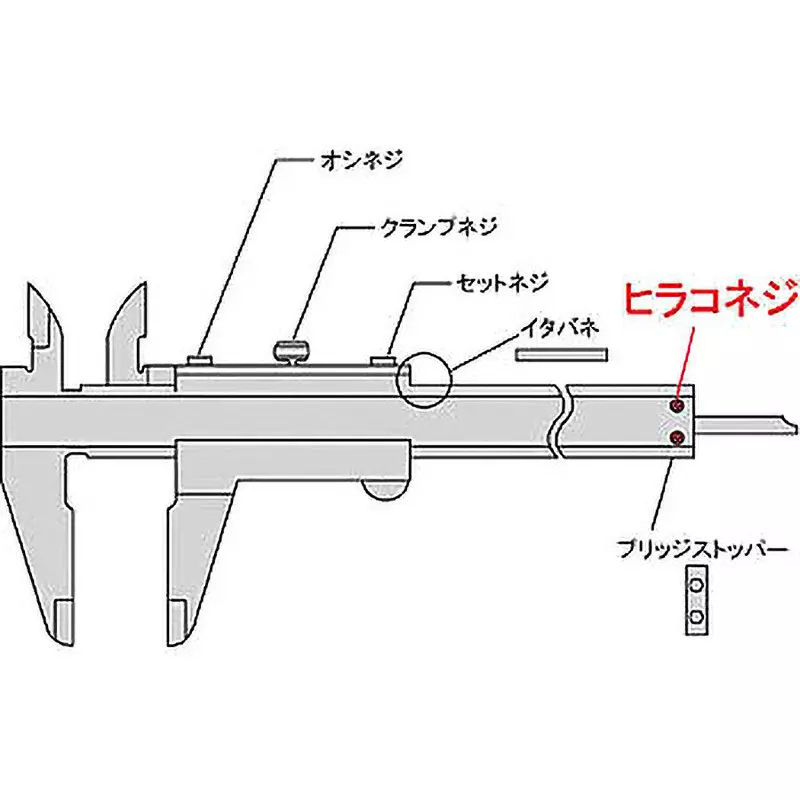

Introducing the Mitutoyo Vernier Caliper Parts – a comprehensive range of precision components designed to maintain and enhance the functionality of your Vernier calipers. Crafted with Mitutoyo's renowned commitment to quality and precision, these parts ensure the longevity and accuracy of your calipers, making them an indispensable addition to your toolkit. The Mitutoyo Vernier Caliper Parts are meticulously engineered to meet the highest standards of quality and precision. From the main scale to the sliding jaw and depth probe, each part is crafted with precision machining and durable materials, guaranteeing reliability and long-lasting performance. With a wide range of available parts, you can easily find replacements or upgrades to suit your specific needs. Whether you require a new main scale, replacement jaws, or a fine adjustment thumb roller, these parts are designed to seamlessly integrate with your Mitutoyo Vernier calipers, ensuring consistent and accurate measurements. Designed with user-friendliness in mind, these parts are easy to install, allowing for hassle-free maintenance or customization of your calipers. The precision engineering of each component ensures a smooth and precise movement, contributing to the overall accuracy of your measurements. The Mitutoyo Vernier Caliper Parts are a testament to Mitutoyo's commitment to precision metrology. Each part undergoes rigorous quality control and calibration procedures, ensuring that they meet the highest international standards of accuracy and reliability. Experience the precision and reliability of Mitutoyo Vernier Caliper Parts. Trust in Mitutoyo's legacy of excellence and elevate your measurement capabilities today. Whether you are a machinist, engineer, scientist, or craftsman, these parts are essential in maintaining the integrity of your caliper measurements.

Introducing the Mitutoyo Depth Gauge Parts ITA Spring – a critical and precision-engineered component that enhances the performance and accuracy of your depth gauge. Crafted with Mitutoyo's renowned commitment to quality and precision, this ITA spring is an essential accessory for professionals in various industries, where precise depth measurements are paramount. The Mitutoyo Depth Gauge Parts ITA Spring is meticulously designed to provide the necessary tension and stability to the depth gauge's measuring rod. This crucial function ensures consistent and reliable depth measurements, allowing users to achieve accurate readings with confidence. Crafted from high-quality materials, this ITA spring is built to withstand the demands of industrial use. Its durability and resilience make it a dependable companion for countless measurement tasks, even in challenging working conditions. The ITA spring is engineered for easy installation and compatibility with various Mitutoyo depth gauge models. Its precise engineering guarantees a seamless fit and enhances the overall performance of your measuring instrument, contributing to the accuracy of your measurements. Designed with user convenience in mind, the Mitutoyo Depth Gauge Parts ITA Spring features a user-friendly design that ensures smooth movement of the measuring rod. Its ergonomic shape provides a comfortable grip, ensuring effortless operation and reducing the chances of errors during depth readings. This ITA spring is a testament to Mitutoyo's commitment to precision metrology. Each component undergoes rigorous quality control and testing procedures, ensuring that they meet the highest international standards of accuracy and reliability. Experience the precision and reliability of the Mitutoyo Depth Gauge Parts ITA Spring. Trust in Mitutoyo's legacy of excellence and elevate your depth measurement capabilities today. Whether you are in machining, engineering, or research and development, this ITA spring is essential in maintaining the integrity of your depth measurements.

The Mitutoyo Back Pig is a specialized accessory designed to enhance the functionality of precision measuring instruments. Known for its robust construction and compatibility, this component is often utilized to provide additional stability or support during measurement tasks. Its name may vary depending on regional or industry-specific terminology. Crafted from high-quality materials, the Mitutoyo Back Pig ensures durability and long-lasting performance even in demanding environments. It is engineered to integrate seamlessly with a range of Mitutoyo tools, contributing to the precision and accuracy that the brand is renowned for. The design minimizes vibrations and unwanted movement, making it particularly useful for applications requiring high levels of stability. This accessory is ideal for use in quality control, inspection, and calibration processes, where precise measurements are critical. Its compatibility with various models ensures versatility, while its easy installation and maintenance make it a user-friendly addition to any setup. The Mitutoyo Back Pig exemplifies the brand's commitment to delivering high-performance tools and accessories that meet the exacting standards of professionals across industries. Whether in a workshop or laboratory setting, this accessory supports the precise and reliable measurements that are essential for achieving optimal results.

http://www.farnell.com/datasheets/1669380.pdf

http://www.farnell.com/datasheets/1669380.pdf

The Insize Extension Rod 12.5 mm Steel, identified by model number 6282-2022, is a precision accessory designed to extend the reach of measuring instruments, enhancing their versatility in various industrial and workshop applications. This extension rod is specifically crafted from durable steel, providing strength and stability to the measuring setup.With a diameter of 12.5 mm, this extension rod is designed to seamlessly integrate with compatible measuring instruments, such as micrometers or calipers, extending their range for measuring recessed or hard-to-reach areas. The steel construction ensures durability, making it suitable for use in demanding industrial environments.The 6282-2022 extension rod is engineered to meet high standards of accuracy, minimizing any potential measurement errors introduced by the extension itself. This is particularly crucial in applications where precision is paramount, such as in machining, quality control, or any situation requiring accurate measurements of internal dimensions.The design of the extension rod includes practical features for ease of use. The threaded ends facilitate secure attachment to compatible instruments, ensuring a stable and reliable connection during measurement tasks. The extension rod's length, 2022 mm, offers substantial reach, allowing for measurements in deeper recesses or longer components.Whether used in a workshop, manufacturing facility, or quality control setting, the Insize Extension Rod 6282-2022 provides a reliable solution for professionals who require extended reach for their measuring instruments. Investing in this steel extension rod ensures not only durability and precision but also enhances the overall functionality of compatible measuring tools, making it an indispensable accessory in various measurement applications.

Insize Extension Rod Length 4 inch for Dial Indicators with 4-48 UNF Thread, 6282-2020 is a common tool used in various mechanical and construction applications to increase the reach or length of hand tools and power tools. It consists of a cylindrical or hexagonal rod that can be securely attached to the end of a driver, socket, drill bit, or other similar tools, effectively extending their reach. Extension rods come in various sizes, materials, and configurations, making them versatile and valuable in many tasks. Here's an explanation of their key features and uses:
Key Features:
Design: Extension rods are typically cylindrical in shape, with one end featuring a connection mechanism, often a square drive or hex drive, to attach to a tool, while the other end is designed for connecting to a socket, bit, or driver.
Length: These rods are available in various lengths, ranging from a few inches to several feet, providing flexibility in extending the reach of tools to access hard-to-reach areas.
Material: Extension rods can be made of different materials, including steel, stainless steel, chrome vanadium, or other alloys, depending on the intended application.
Connection Types: Extension rods come with different drive types, such as square drives (e.g., 1/4-inch, 3/8-inch, or 1/2-inch), hex drives, or specialty connections to accommodate various tool types.
Uses:
Extension rods are widely used in a variety of applications, including:
Mechanics and Automotive: Mechanics use extension rods to reach bolts and nuts in confined or awkward spaces, such as engine compartments, suspensions, and undercarriages. They are particularly handy for removing and installing fasteners on vehicles.
Construction and Carpentry: In construction and woodworking, extension rods allow carpenters and builders to reach deep recesses, install fixtures, and drive screws in hard-to-access locations.
DIY and Home Improvement: For homeowners and DIY enthusiasts, extension rods come in handy for tasks like assembling furniture, mounting shelves, or conducting repairs in tight spaces.
Plumbing: Plumbers use extension rods to access and tighten fittings and connectors in cramped plumbing installations.
Electrical Work: Electricians use extension rods to access and secure electrical boxes and connections within walls and ceilings.
General Maintenance: Extension rods are invaluable for general maintenance and repair tasks, enabling access to hidden or remote fasteners and components.
Machinery and Equipment Maintenance: In industrial settings, extension rods are essential for maintaining machinery and equipment by reaching concealed bolts and connectors.
Power Drilling and Screwdriving: In combination with drill bits and screwdriver tips, extension rods are used to drill holes and drive screws in hard-to-reach locations.
Extension rods are versatile tools that provide extended reach and access to places that would otherwise be challenging to reach. Their ease of use and compatibility with various tools make them essential for both professionals and DIY enthusiasts in a range of industries and applications.

Lug backs for digital/dial indicators are specialized attachments that provide a convenient and secure way to mount these measuring instruments onto a surface or fixture. They feature a lug or tab that extends from the back of the indicator, allowing it to be easily mounted using screws or other fasteners. Lug backs are designed to provide stability and support, ensuring that the indicator remains in position during measurements. They are commonly used in applications where the indicator needs to be fixed in place, such as in machining, metrology, and quality control. Lug backs are available in various sizes and configurations to fit different types of indicators.
