Radius Gauge

What is a radius gauge used for?

Radius gauge is a measuring tool that is used to measure the radius of an object's edge or curve. It is a simple yet effective radius checking instrument that is commonly used in the manufacturing industry for quality control purposes. These gauges are available in various sizes and shapes, including rectangular, circular, and cylindrical, depth gauge related to the application.

They are particularly useful for measuring radii on small parts and intricate shapes where other radius measuring tools cannot reach. A few common applications of this gauge include the radius checking gauge on a lathe, identifying the size of a fillet, and measuring the radius on sheet metal. With the help of this gauge, one can accurately measure the radius of an object and ensure it meets the desired specifications. These gauges are available in a wide range of sizes and configurations to suit different applications and requirements. It is also related to feeler gauges which is an important concept.

How does a radius gauge work?

It is a measuring tool used to determine the radius or fillet of a surface. It works by comparing the curve of the surface being measured to the curve of the gauged surfaces. Here are some key points about how a gauge with a radius works:

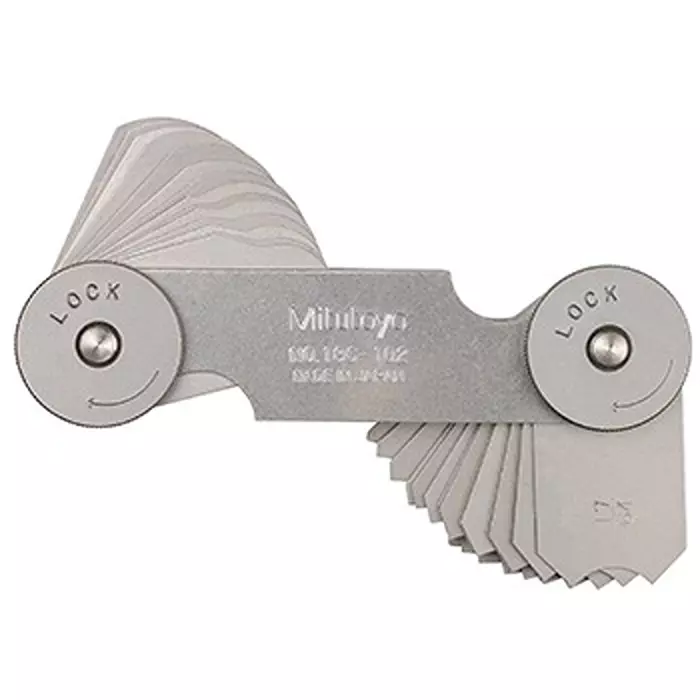

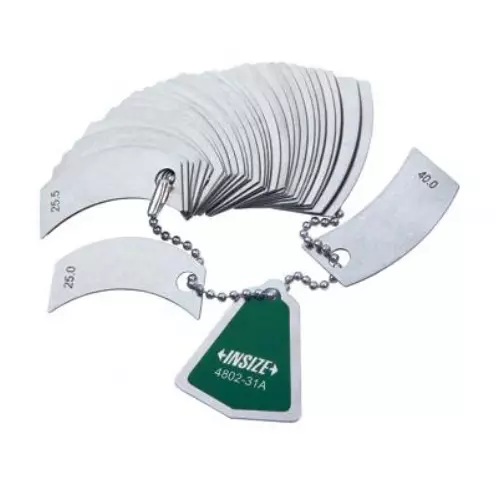

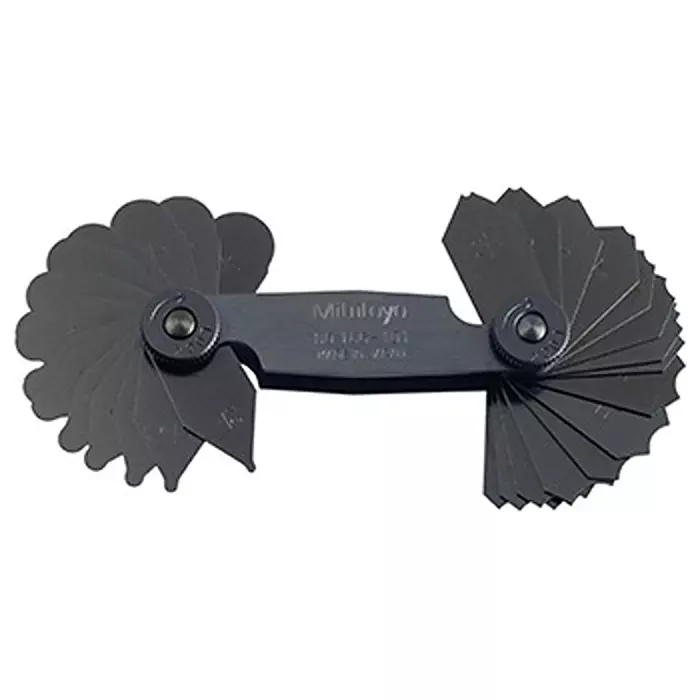

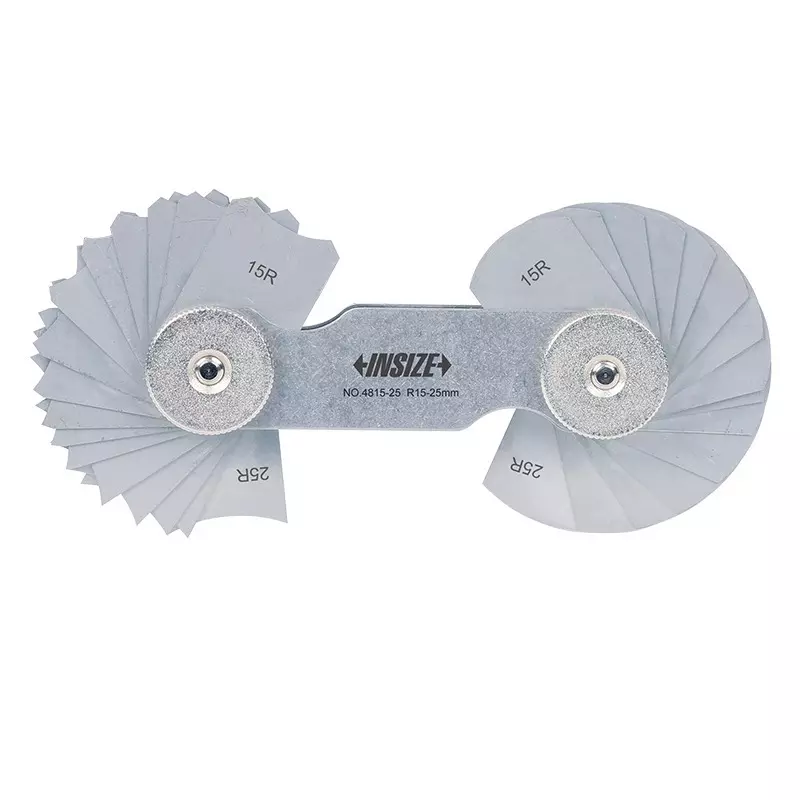

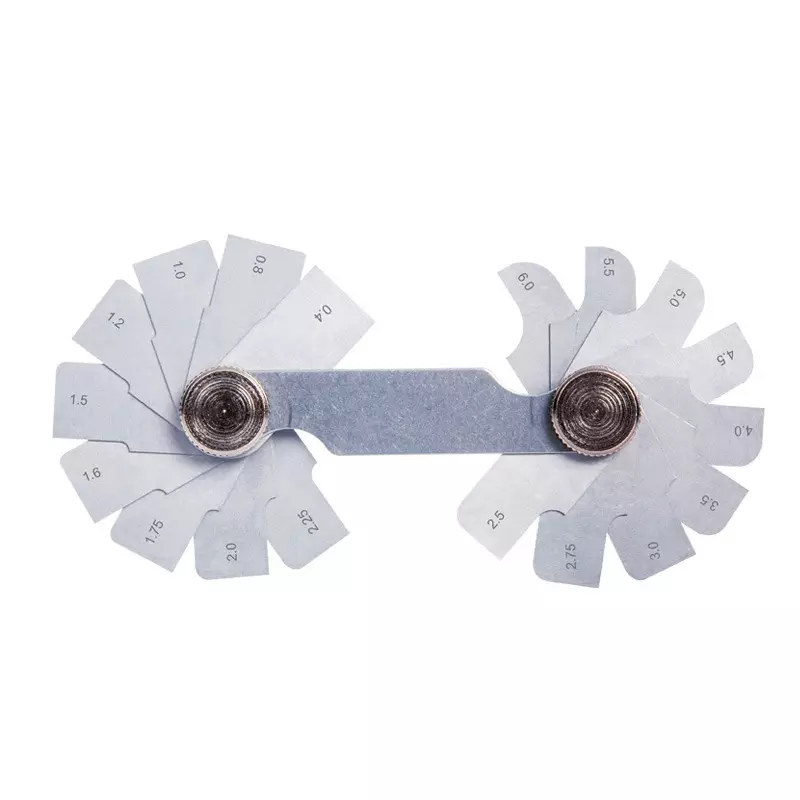

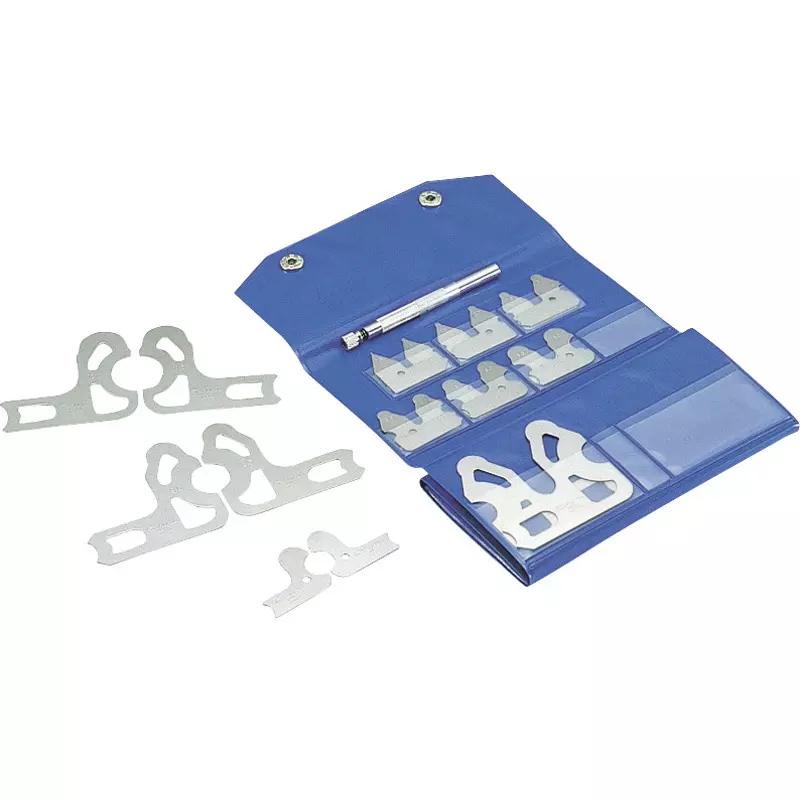

1. The gauge consists of a series of leaves or blades, each with a different radius curve on one end.
2. To use the gauge, the user selects the leaf with the closest matching curve to the surface being measured.
3. The user then slides the leaf along the surface until the curve of the leaf matches the curve of the surface.
4. The user notes the number on the leaf that corresponds to the radius of the surface being measured.
5. The electronic radius gauge can be used on both convex and concave surfaces.

If you need to buy this product in bulk and are worried about the quality and pricing, then you need to check our website - industrybuying.com. We offer best-in-market digital gauge price with quality assurance.

What are the different types of radius gauges available in the market?

These are essential measuring tools in various industries to measure the radius of an object or a surface. There are several types of such gauges available in the market, each having its unique features and applications. Some of the most common types of such gauges are:

a. Fillet Radius Gauges:Used to measure fillet radii on sheet metal parts and other similar components.
b. Screw Pitch Gauges: Electronic radius gauge is used to measure screw pitches and radii.
c. Blade-type Gauges: Used for measuring the radius of the curved surface.
d. Digital Gauges: Used to provide quick and accurate readings through a digital display.
e. Analog Gauges: Used for manual measurement with an analog display.

All these types of process monitoring tools are available on our site at budget-friendly rates.

What are the advantages of using a radius gauge?

Using these gauges offers numerous advantages, including:

a. Precise measurements: These gauges are designed to measure curved surfaces accurately, providing precise readings for your workpiece.
b. Versatility:With a variety of different types and sizes available, these gauges can be used for a wide range of applications and industries.
c. Time-saving: Using this electronic radius gauge can save you time by eliminating the need for guesswork or trial-and-error measurements..
d. Easy to use: These gauges are simple and easy to use, making them accessible to a wide range of professionals in various industries.
e. Versatility: These gauges come in various shapes and sizes, making them versatile and adaptable to different manufacturing and measuring applications.
f. Cost-effective: These gauges are relatively inexpensive compared to other radius measuring instruments, making them a cost-effective option for small and large businesses.
g. Quality control: Using a gauge ensures that products meet quality control standards by ensuring that they meet the required radii specifications.
h. Improved product design: Accurate radius measurements can lead to improved product design, ensuring a better fit, finish, and overall quality.
i. Reduced waste: Using a gauge can help reduce waste by ensuring that materials are cut and shaped accurately, reducing the need for rework and saving time and resources. It is an important component of Non-Electrical properties testing.

How do I choose the right radius gauge for a specific application?

When choosing the right type of gauge for a specific application, it's important to consider various factors such as the radius gauge size of the object being measured, the required accuracy, and the type of measurement needed. Here are some tips to help you choose the right type of gauge:

1. Determine the range of measurements needed for the application
2. Consider the accuracy required for the measurement
3. Look for a gauge with a suitable number of leaves for the job
4. Consider the type of material the gauge is made of
5. Look for a gauge with a clear and easy-to-read scale

You can get measuring tool set if you need to work on a project with multiple handy tools like radius gauges.

Why are radius gauges important in manufacturing?

When it comes to manufacturing, precision is key to ensuring high-quality products. These gauges are important tools used in manufacturing for a variety of reasons. Here are some reasons why these gauges are important in manufacturing:

a. Precise measurements: These gauges help manufacturers take accurate measurements of rounded or curved surfaces, allowing for precise machining and assembly.
b. Quality control: Measuring the radius of a component ensures that it conforms to the required specifications, preventing defects and ensuring consistent quality.
c. Time-saving: These gauges can speed up the measuring process by allowing for quick and accurate measurements, leading to a more efficient manufacturing process.
d. Cost-effective: By ensuring accurate measurements, these gauges can prevent costly mistakes and rework.
e. Versatility: These gauges come in various sizes and shapes, making them suitable for measuring a range of curved surfaces in different industries.
