| Altitude | Operating: 2 000 m, Storage: 12 000 m |
| Frame Rate | 25 Hz |
| Temperature Accuracy | ± 2 % of rdg or ± 2 °C/3.6 °F, whichever is greater (@ 23 °C ± 5°C/73.4 °F ± 9 °F ambient temperature) |
| Operating Humidity | 10 % to 90 % RH, non-condensing |
Altitude |
Operating: 2 000 m, Storage: 12 000 m |
Frame Rate |
25 Hz |
Temperature Accuracy |
± 2 % of rdg or ± 2 °C/3.6 °F, whichever is greater (@ 23 °C ± 5°C/73.4 °F ± 9 °F ambient temperature) |
Operating Humidity |
10 % to 90 % RH, non-condensing |
Temperature Range |
-20 °C to 550 °C |
IP Rating |
IEC 60529: IP56 |
Operating Temperature |
0 ℃ to 40 ℃/32 °F to 104 °F |
Storage Temperature |
-30 ℃ to 60 ℃/–22 °F to 140 °F |

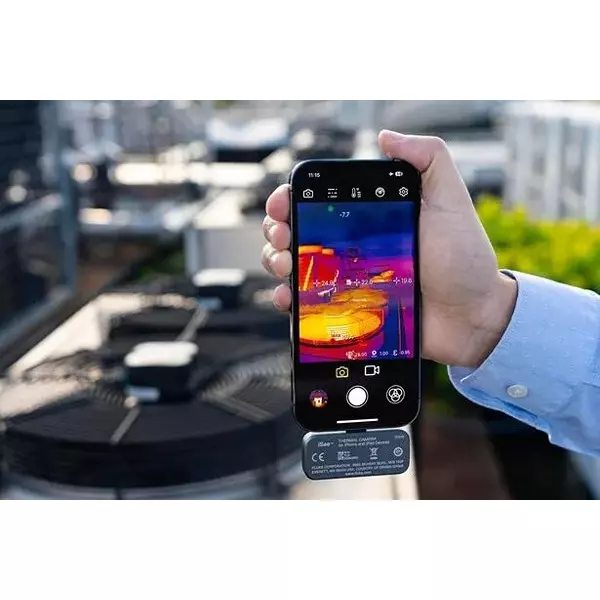

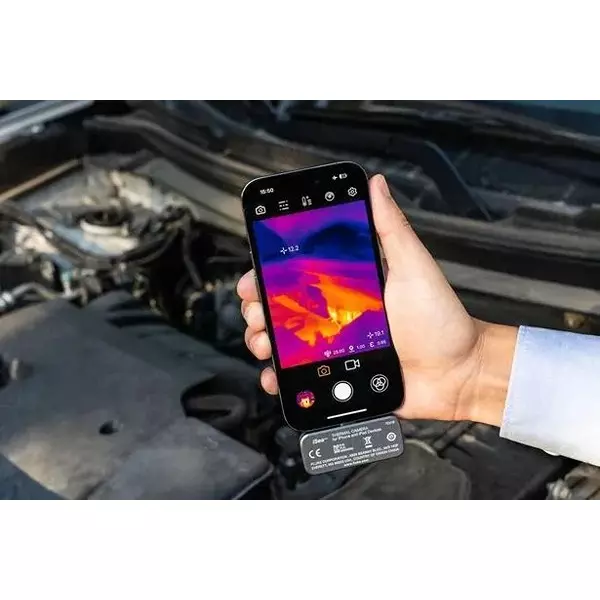

Type of Product |
Mobile Thermal Camera |
Interface |
Lightning |
View Field |
56° x 42° |
Dimension |
60 x 33.5 x 11.2 mm |
Thermal Sensitivity |
50 mK |
IR Resolution |
256 x 192 |
Model No |
TC01B |
Spatial Resolution |
3.81 mrad |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
FLUKE INDIA |
Focal Length (Mm) |
Fixed focal length: 3.2 mm |
Pixel Size |
12 μm |
Drop Test |
1 m/3.3 ft |
Power Consumption |
200 mW (Typical) |
Shutter |
Internal |
Spectral Range |
8 to 14 μm |
Distance |
Temperature Measurement: 0.25 m to 5 m (* -20 ℃/-4 °F to 10 ℃/50 °F, only for 0.25 m to 3 m) |
Warm up Time |
1 minute |
Warranty Duration |
2 Year |
Compatibility |
iOS |
