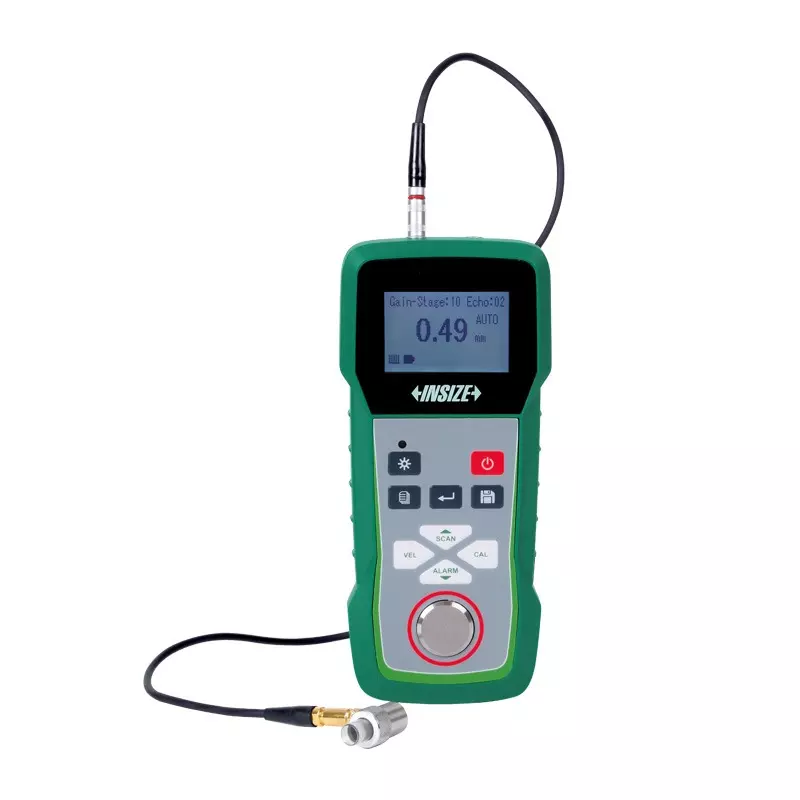

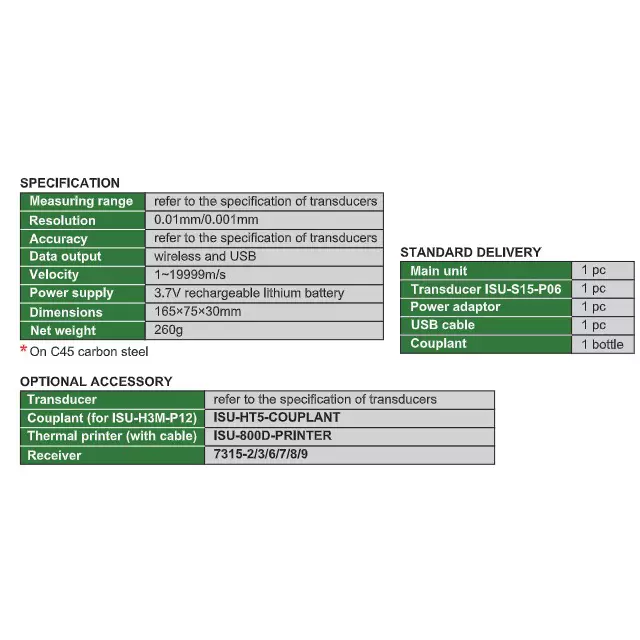

| Type of Product | Ultrasonic Thickness Gauge |
| Model No | ISU-800DWL |
| Dimension | 165x75x30 mm |
| Package Contains | 1 x Main Unit, 1 x Transducer ISU-S15-P06, 1 x Power Adapter, 1 x USB Cable, 1 Bottle Couplant |
Type of Product |
Ultrasonic Thickness Gauge |
Model No |
ISU-800DWL |
Dimension |
165x75x30 mm |
Package Contains |
1 x Main Unit, 1 x Transducer ISU-S15-P06, 1 x Power Adapter, 1 x USB Cable, 1 Bottle Couplant |
Range |
I-E: 0.9 - 28 mm, E-E: 0.15 - 14 mm |
Accuracy |
±0.02 mm/0.3% H |

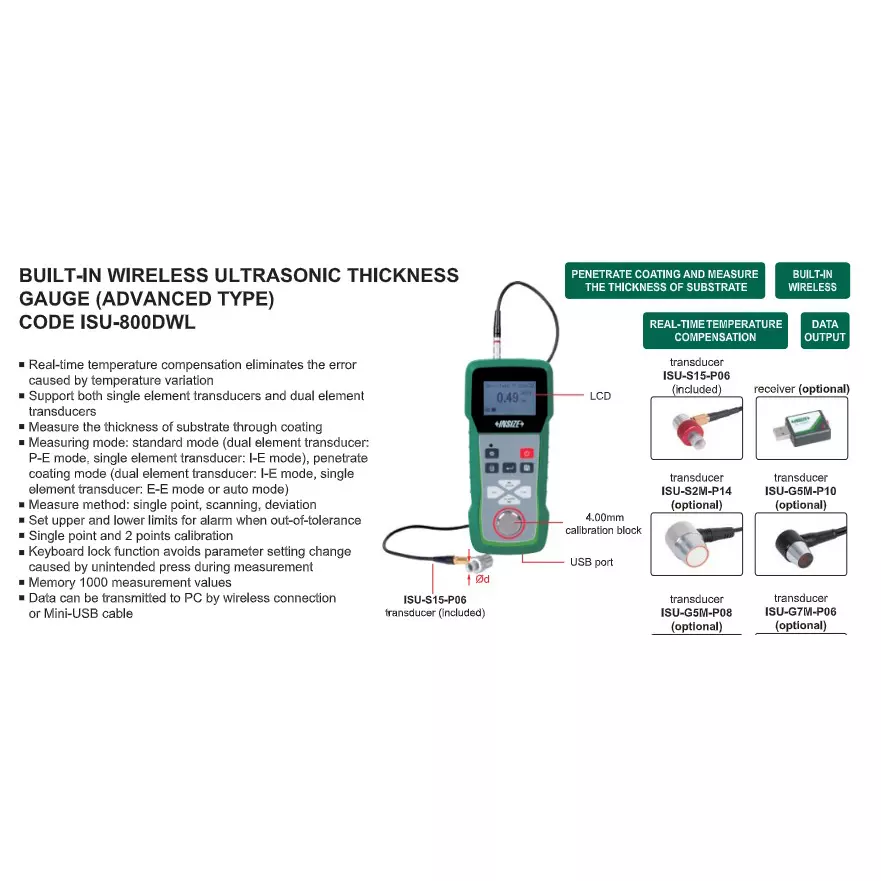

Features |
Real-time temperature compensation eliminates the error caused by temperature variation Support both single element transducers and dual element transducers Measure the thickness of substrate through coating Measuring mode: standard mode (dual element transducer: P-E mode, single element transducer: I-E mode), penetrate coating mode (dual element transducer: I-E mode, single element transducer: E-E mode or auto mode) Measure method: single point, scanning, deviation |
Resolution |
0.01 mm/0.001 mm |
Frequency |
15 MHz |
Power Supply |
3.7 V Li-ion Rechargeable Battery |
Country of Origin |
China |
Type |
Advanced |
Velocity |
1-19999 m/s |
Name of Manufacturer/Packer/Importer |
INSIZE |
Net Weight |
260 g |
Probe Diameter |
8 mm |
Data Transmission |
Wireless and USB |
In-built |
Bluetooth |
