| Insulation Class | F |
| Frequency | 50 Hz ±5% |
| Mounting Type | Foot Mounted (B3 Construction) |
| Rated Voltage | 415 V ±10% |
Insulation Class |
F |
Frequency |
50 Hz ±5% |
Mounting Type |
Foot Mounted (B3 Construction) |
Rated Voltage |
415 V ±10% |
Phase |
3 Phase |
Type of Product |

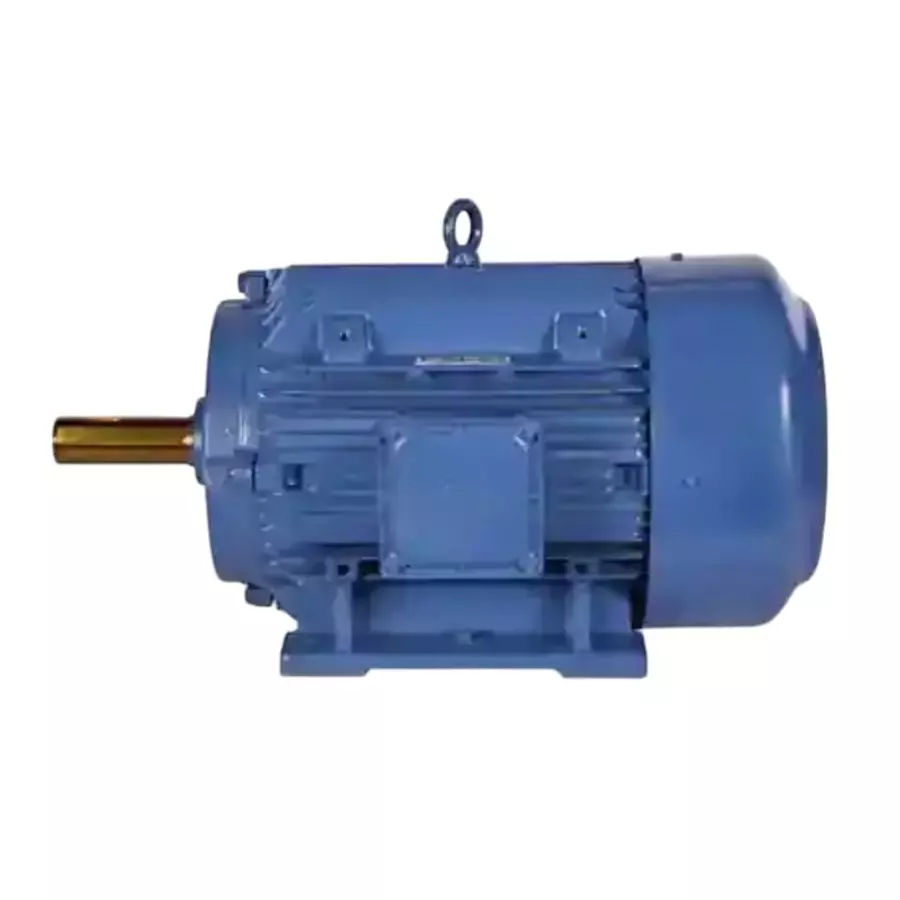

Squirrel Cage Induction Motor |
Speed |
1000 RPM |
Pole |
6 Pole |
Model No |
4G20L6A3CT000 |
Frame Size |
200L |
Power |
18.50 kW |
Ambient Temperature |
50°C |
Efficiency Class |
IE4 - Safe Area |
Duty |
S1 |
Combined Variations |
±10% |
Protection |
IP55 |
Material |
Cast Iron |
Cooling Method |
Totally Enclosed Fan Cooled |
Country of Origin |
India |
Temperature Rise |
B |
Name of Manufacturer/Packer/Importer |
Himanshu Electrical |
Motor Power (HP) |
25 HP |
Conform to |
IS/IEC 60034 & IS: 12615 |
