Ships within 90 days
Nameplate RPM
Power
View
View
View
View
| Insulation Class | F |
| Frequency | 60/50 Hz |
| Mounting Type | Rigid Base |
| Rated Voltage | - |
Insulation Class |
F |
Frequency |
60/50 Hz |
Mounting Type |
Rigid Base |
Rated Voltage |
- |
Phase |
Three Phase |
Type of Product |

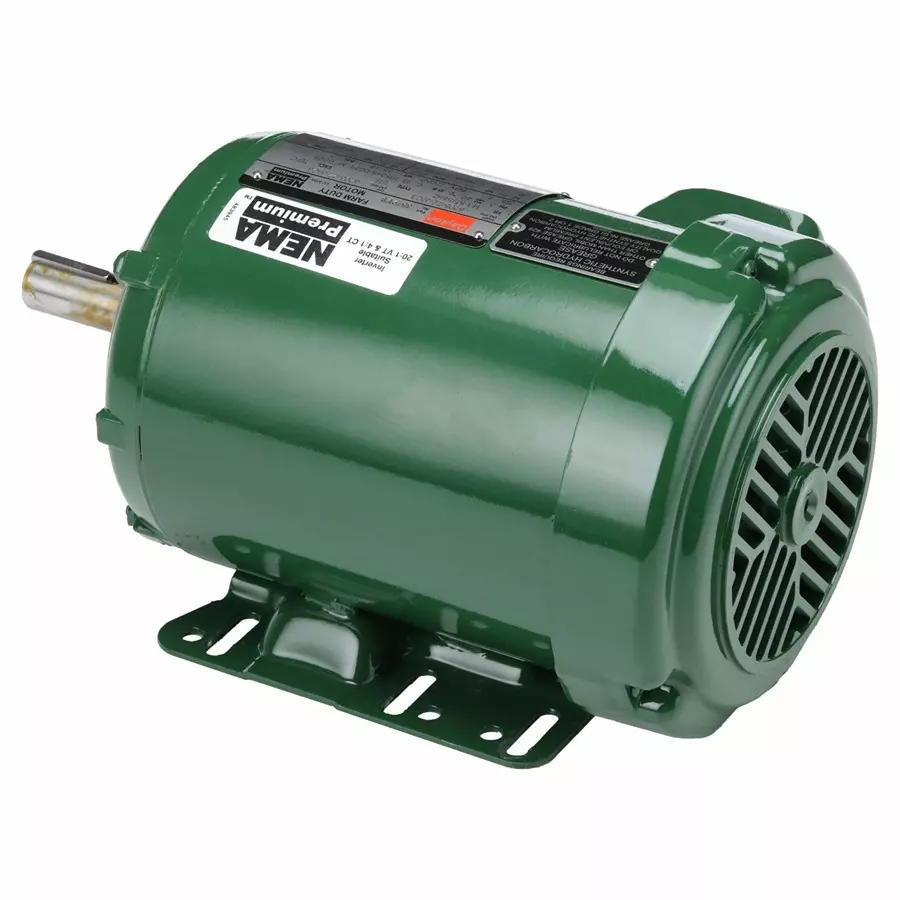

General Purpose Farm Duty Motor |
Speed |
- |
Pole |
- |
Frame Size |
- |
Power |
1-1/2 HP |
Standard |
Csa Certified (258525) Ul Recognized (E47479) |
Frame |
143-5T/56HZT |
Frame Material |
Rolled Steel |
Country of Origin |
Mexico |
Duty Cycle |
Continuous |
Voltage |
230/460 V AC |
Shaft Diameter |
7/8 inch |
Thermal Protection |
None |
Enclosure Design |
Totally Enclosed Fan-Cooled |
Overall Length |
13 inch |
Shaft rotation |
CW/CCW |
UNSPSC Code |
26101602 |
Length Less Shaft |
10-5/8 inch |
Shaft Length |
2-3/8 inch |
Full Load (Amps) |
4.3/2.1 A |
Includes |
Shaft Key, Shaft Slinger, Gasketed Conduit Box |
Max. Ambient Temp. (F) |
40 °C |
Part No |
35Z917 |
Motor Design |
3-Phase |
Motor Shaft Design |
Keyed |
Item No |
35Z917 |
Motor Mounting Position |
Horizontal |
Nominal Efficiency |
86.5 % |
Motor Service Factor |
1.25 |
Motor Bearings |
Ball |
Motor Application |
Farm Duty |
Nameplate RPM |
1755 RPM |
Finish Type |
Dayton Gray |
Item - Farm Duty Motors |
General Purpose Farm Duty Motor |
Length (mm) |
269.9 mm |
Overall Length (cm) |
33.02 cm |
Shaft Diameter (mm) |
22.22 mm |
Shaft Length (mm) |
60.33 mm |
