| Inner Diameter | 30 mm |
| Outer Diameter | 47 mm |
| Material | High Carbon Chromium Steel |

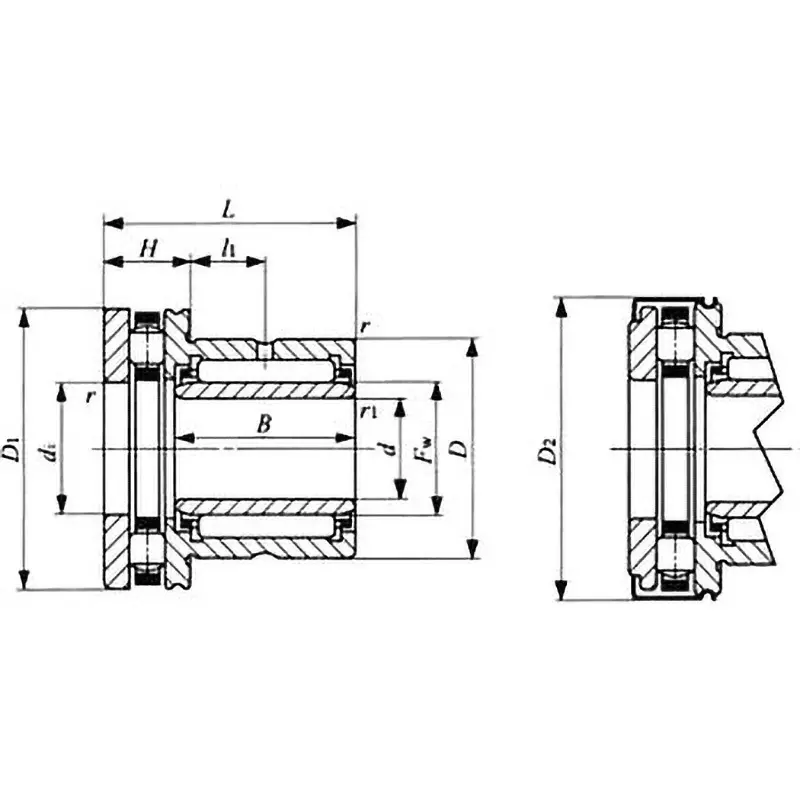

| Type of Product | Needle Bearing With Thrust Roller Bearing NBXI |
Inner Diameter |
30 mm |
Outer Diameter |
47 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Needle Bearing With Thrust Roller Bearing NBXI |
Model No |
NBXI3030 |
Type |
With inner ring |
Country of Origin |
Japan |
Mass (g) |
225 |
Race ring shape |
Needle roller bearing |
Rolling element material |
High carbon chromium bearing steel |
JIS grade |
0 |
Monotaro ID |
38313396 |
Dimension d1 (Φmm) |
52 |
Inscribed Circle Diameter Fw (Φmm) |
35 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Width B (mm) |
20 |
Basic Dynamic Load Rating (N) |
(Radial) 26900 (Axial) 29100 |
Cover |
Without dust cover |
Basic Static Load Rating (N) |
(Radial) 46200 (Axial) 91100 |
Allowable Rotation Speed (min-1 [rpm]) |
7000 |
Dimension L (mm) |
30 |
Dimensions H (mm) |
12 |
Inner ring |
LRT303520 |
