Ships within 25 days
View
View
View
View
| Inner Diameter | 100 mm |
| Outer Diameter | 135 mm |
| Material | High Carbon Chromium Steel |
| Type of Product | Thrust Needle Bearing NTB |
Inner Diameter |
100 mm |
Outer Diameter |
135 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Thrust Needle Bearing NTB |
Model No |
NTB100135 |
Country of Origin |
Japan |
Mass (g) |
119 |
Load direction |
Thrust |
No. of Track Trains |
Single row |
Race ring shape |
Needle roller bearing |
Rolling element material |
High carbon chromium bearing steel |
JIS grade |
0 |
Monotaro ID |
38319102 |

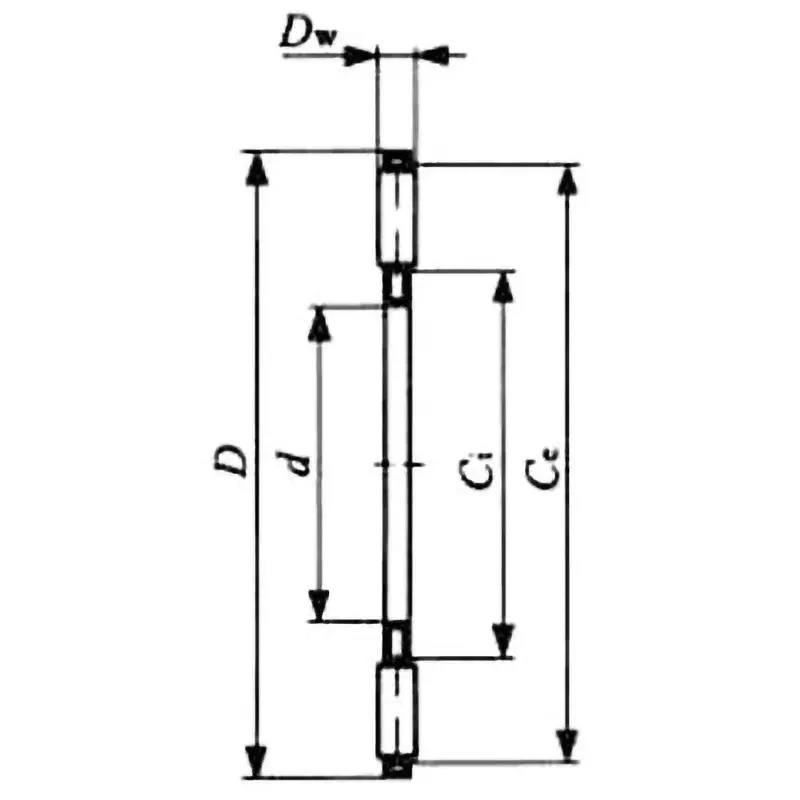

Width Dw (mm) |
4 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Allowable Rotation Speed (min-1 [rpm]) |
2000 |
Suitable For |
(Inner ring) WS100135 (Outer ring) GS100135 (Thrust washer) AS100135 |
Basic static load rating Co (N) |
541000 |
Basic dynamic load rating C (N) |
80300 |
