| Inner Diameter | 35 mm |
| Outer Diameter | 52 mm |
| Material | High Carbon Chromium Steel |
| Type of Product | Single Thrust Ball Bearings 51100 Series |
Inner Diameter |
35 mm |
Outer Diameter |
52 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Single Thrust Ball Bearings 51100 Series |
Model No |
51107 |
Country of Origin |
Japan |
Mass (g) |
85 |
Load direction |
Thrust |
Width T (mm) |
12 |
Outer ring type |
Flat |
Shield Shape |
Open type |
Inner Diameter D1 (Φmm) |
37 (minimum) |
Outer Diameter d1 (Φmm) |
52 (max) |
JIS grade |
0 |

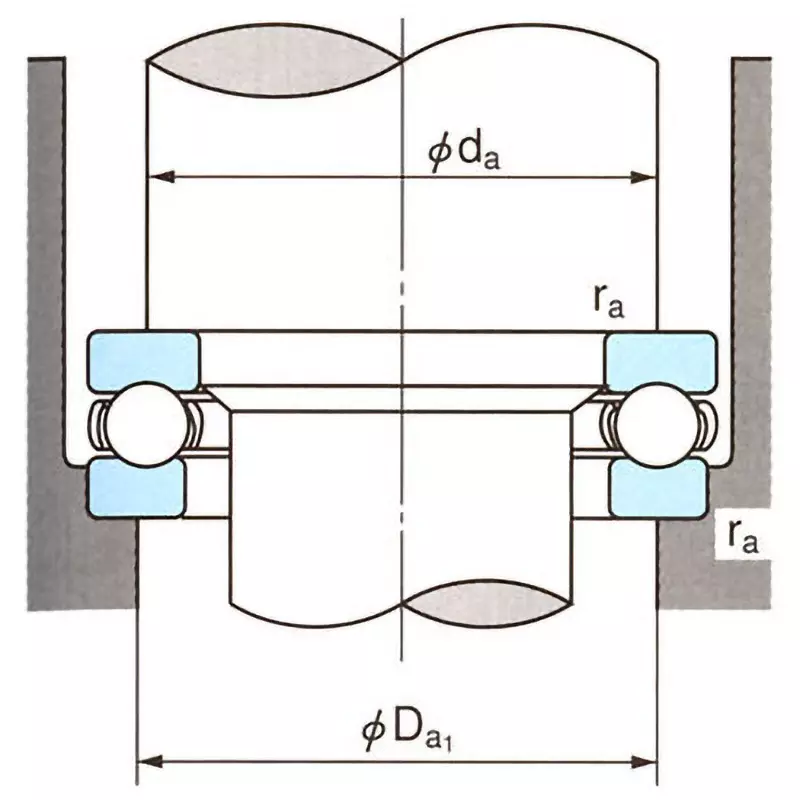

Mounting Dimension, Maximum Da1 (Φmm) |
42 |
Basic dynamic load rating Ca (N) |
20400 |
Basic static load rating Coa (N) |
44500 |
Mounting Dimension, Maximum ra (mm) |
0.6 |
Mounting Dimension, Minimum da (mm) |
45 |
Ball Material |
Resin |
Monotaro ID |
7029127 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Chamfer Dimension r (mm) |
0.6 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
4000 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
6000 |
