| Inner Diameter | 12 mm |
| Outer Diameter | 26 mm |
| Material | High Carbon Chromium Steel |

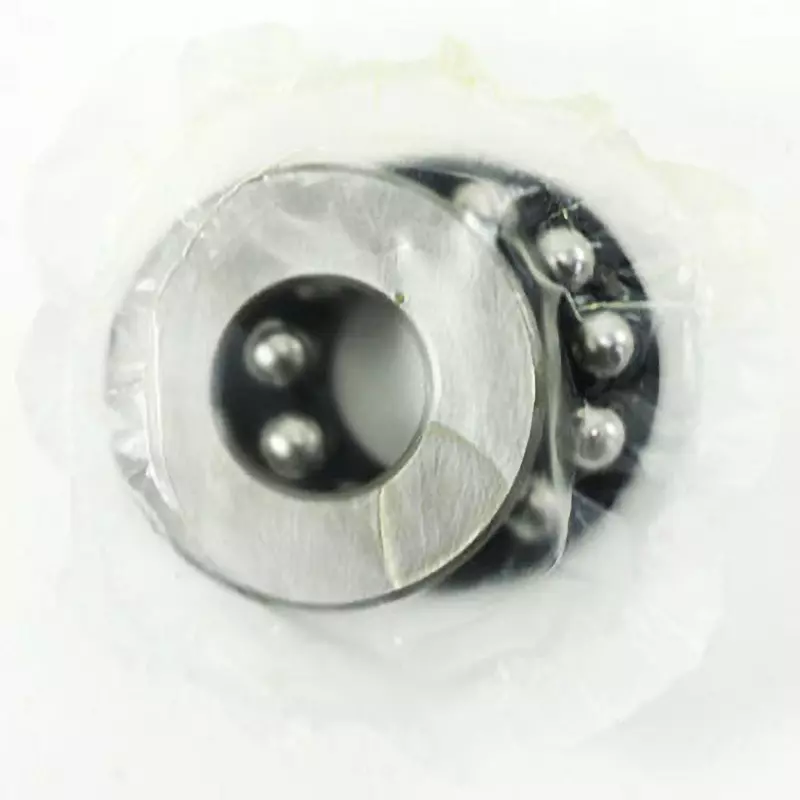

| Type of Product | Single Thrust Ball Bearings 51100 Series |
Inner Diameter |
12 mm |
Outer Diameter |
26 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Single Thrust Ball Bearings 51100 Series |
Model No |
51101 |
Country of Origin |
Japan |
Mass (g) |
22 |
Load direction |
Thrust |
Width T (mm) |
9 |
Outer ring type |
Flat |
Shield Shape |
Open type |

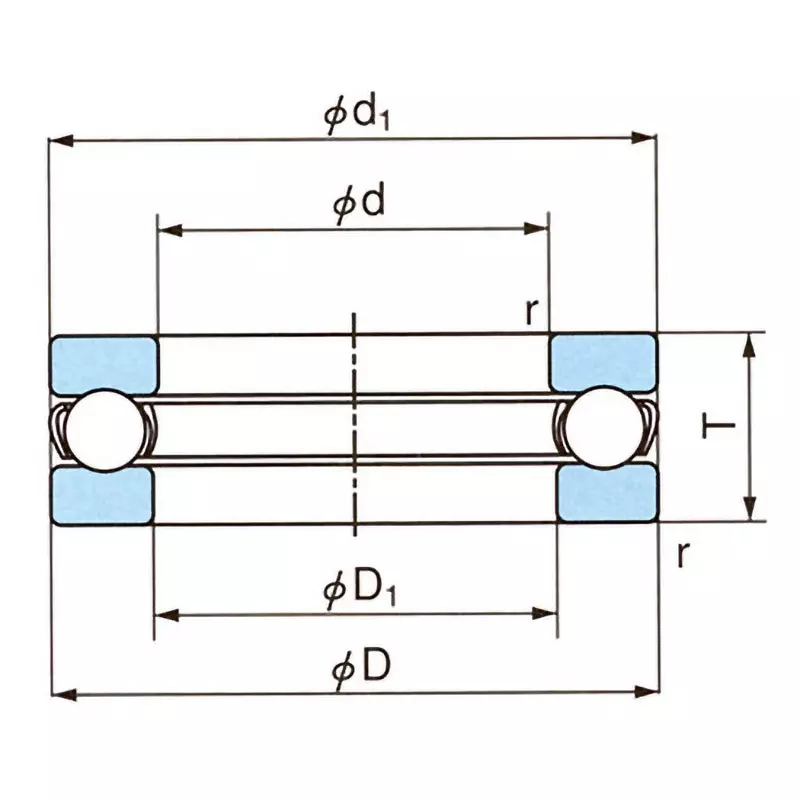

Inner Diameter D1 (Φmm) |
13 (minimum) |
Outer Diameter d1 (Φmm) |
26 (maximum) |
JIS grade |
0 |

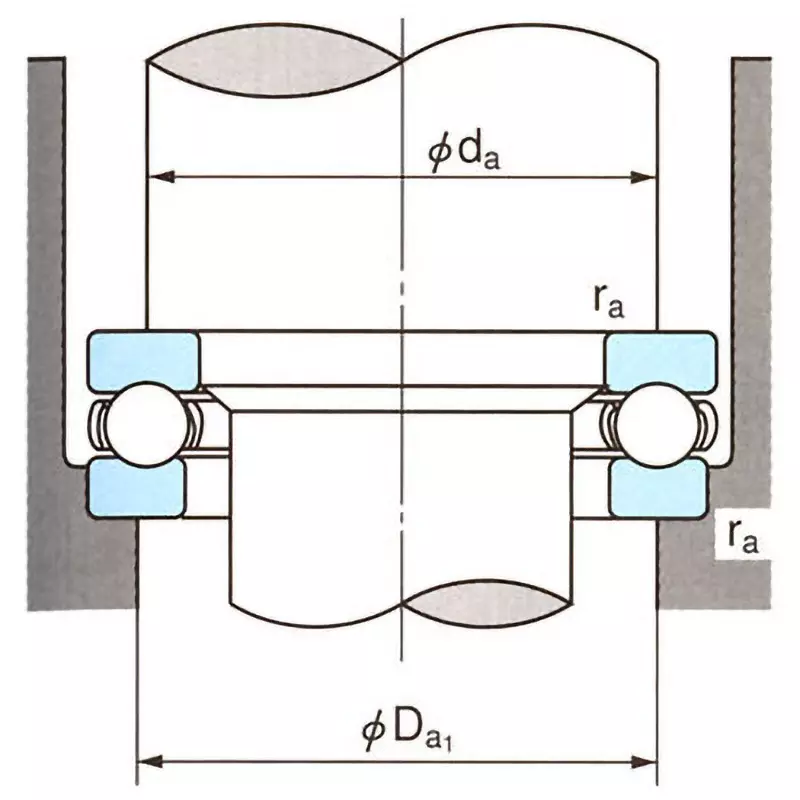

Mounting Dimension, Maximum Da1 (Φmm) |
18 |
Basic dynamic load rating Ca (N) |
10300 |
Basic static load rating Coa (N) |
15400 |
Mounting Dimension, Maximum ra (mm) |
0.3 |
Mounting Dimension, Minimum da (mm) |
20 |
Ball Material |
Resin |
Monotaro ID |
7029066 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Chamfer Dimension r (mm) |
0.3 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
6500 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
9800 |
