| Inner Diameter | 45 mm |
| Outer Diameter | 73 mm |
| Material | High Carbon Chromium Steel |
| Type of Product | Single Thrust Ball Bearings 51200 Series |
Inner Diameter |
45 mm |
Outer Diameter |
73 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Single Thrust Ball Bearings 51200 Series |
Model No |
51209 |
Country of Origin |
JAPAN |
Mass (g) |
320 |
Load direction |
Thrust |
Width T (mm) |
20 |
Outer ring type |
Flat |
Shield Shape |
Open type |
Inner Diameter D1 (Φmm) |
47 (minimum) |
Race ring shape |
Thrust ball bearing |
Outer Diameter d1 (Φmm) |
73 (max) |
JIS grade |
0 |

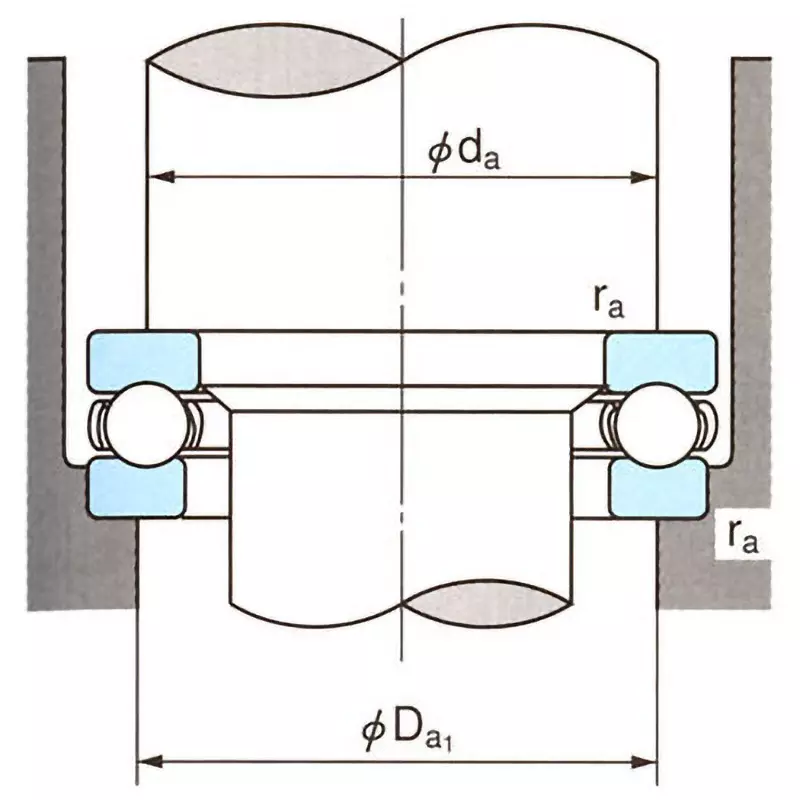

Mounting Dimension, Maximum Da1 (Φmm) |
56 |
Basic dynamic load rating Ca (N) |
47500 |
Basic static load rating Coa (N) |
105000 |
Mounting Dimension, Maximum ra (mm) |
1 |
Mounting Dimension, Minimum da (mm) |
62 |
Monotaro ID |
7029346 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Chamfer Dimension r (mm) |
1 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
2600 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
3900 |
