| Inner Diameter | 55 mm |
| Outer Diameter | 78 mm |
| Material | High Carbon Chromium Steel |

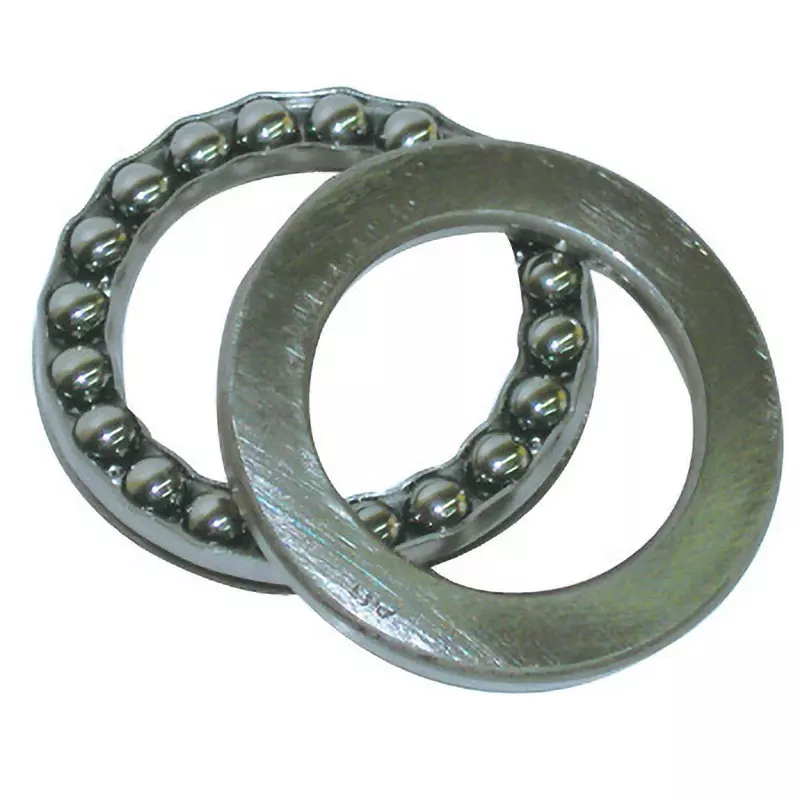

| Type of Product | Single Thrust Ball Bearings 51100 Series |
Inner Diameter |
55 mm |
Outer Diameter |
78 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Single Thrust Ball Bearings 51100 Series |
Model No |
51111 |
Country of Origin |
JAPAN |
Mass (g) |
240 |
Load direction |
Thrust |

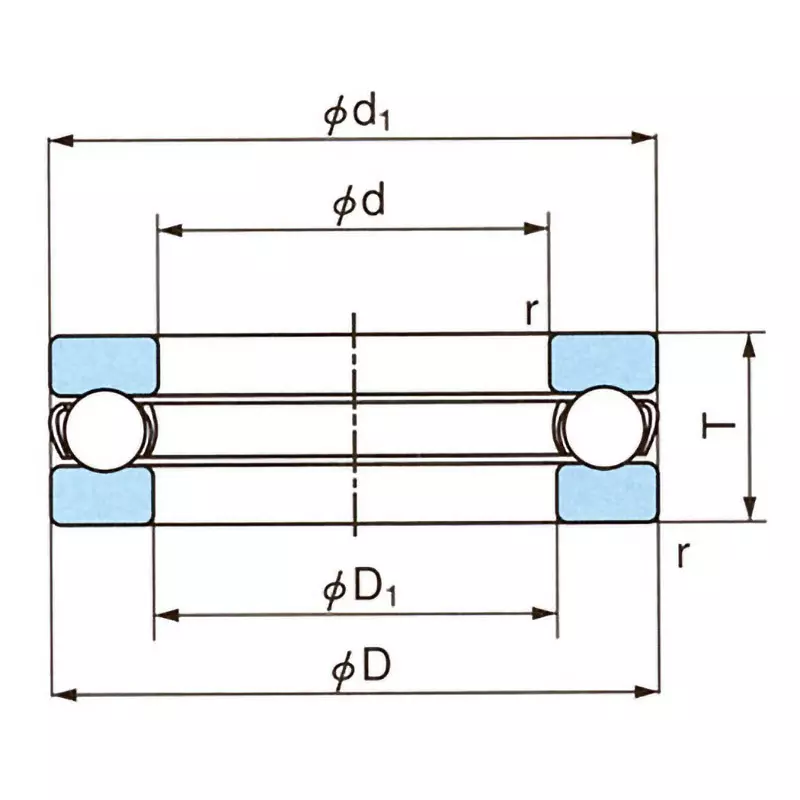

Width T (mm) |
16 |
Outer ring type |
Flat |
Shield Shape |
Open type |
Inner Diameter D1 (Φmm) |
57 (minimum) |
Outer Diameter d1 (Φmm) |
78 (maximum) |
JIS grade |
0 |

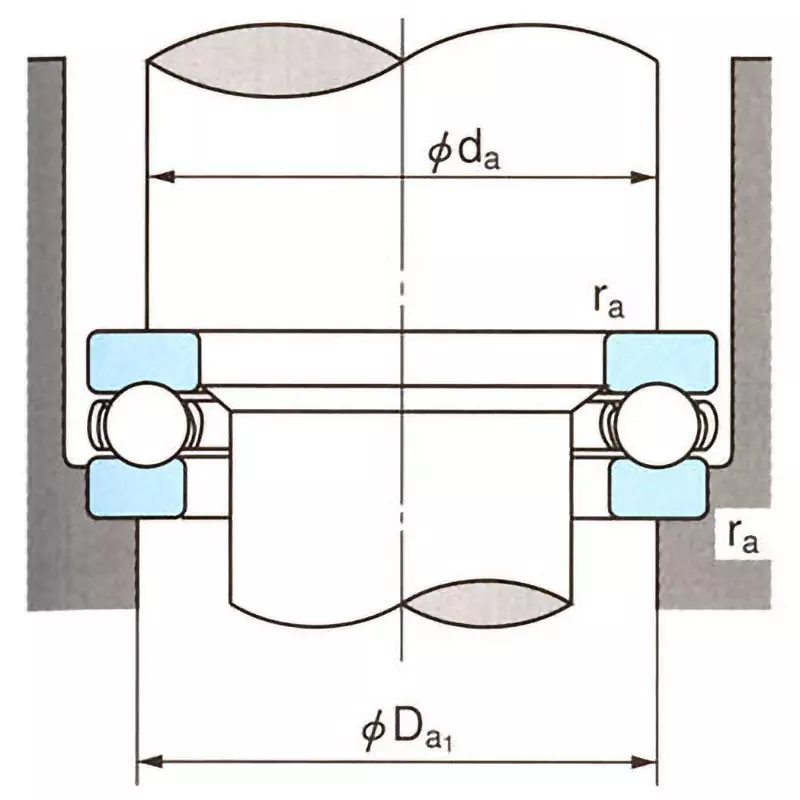

Mounting Dimension, Maximum Da1 (Φmm) |
64 |
Basic dynamic load rating Ca (N) |
35000 |
Basic static load rating Coa (N) |
93000 |
Mounting Dimension, Maximum ra (mm) |
0.6 |
Mounting Dimension, Minimum da (mm) |
69 |
Ball Material |
Resin |
Monotaro ID |
7029163 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Chamfer Dimension r (mm) |
0.6 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
2800 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
4200 |
