| Inner Diameter | 100 mm |
| Outer Diameter | 135 mm |
| Material | High Carbon Chromium Steel |

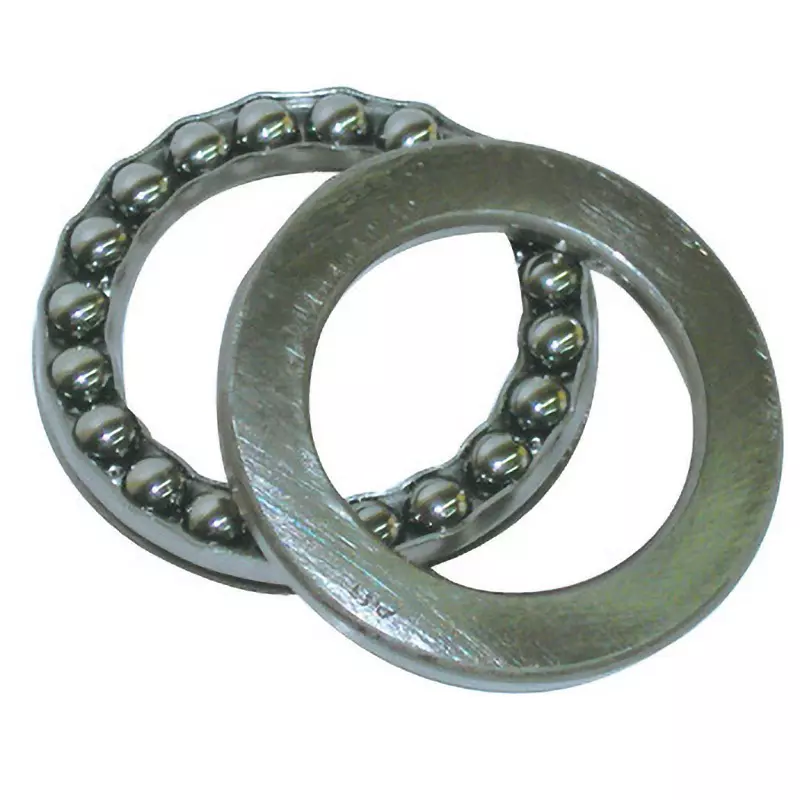

| Type of Product | Single Thrust Ball Bearings 2900 Series |
Inner Diameter |
100 mm |
Outer Diameter |
135 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Single Thrust Ball Bearings 2900 Series |
Model No |
2920 |
Country of Origin |
Japan |
Mass (g) |
930 |
Load direction |
Thrust |
Width T (mm) |
25 |
Outer ring type |
Flat |
Shield Shape |
Open type |

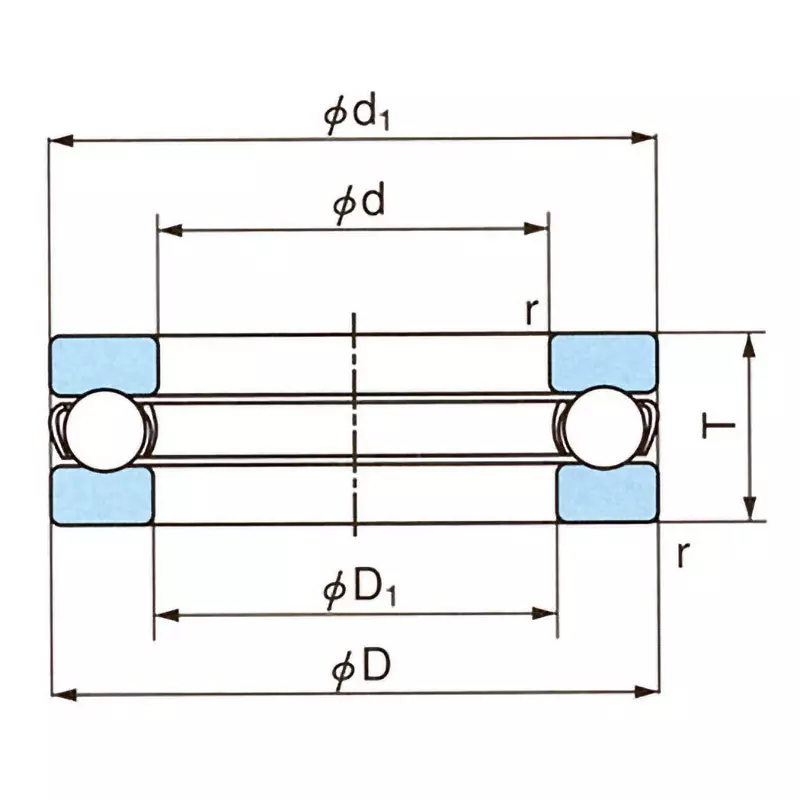

Inner Diameter D1 (Φmm) |
100.2 (minimum) |
Race ring shape |
Thrust ball bearing |
Outer Diameter d1 (Φmm) |
135 (maximum) |
JIS grade |
0 |
Basic dynamic load rating Ca (N) |
78000 |
Basic static load rating Coa (N) |
253000 |

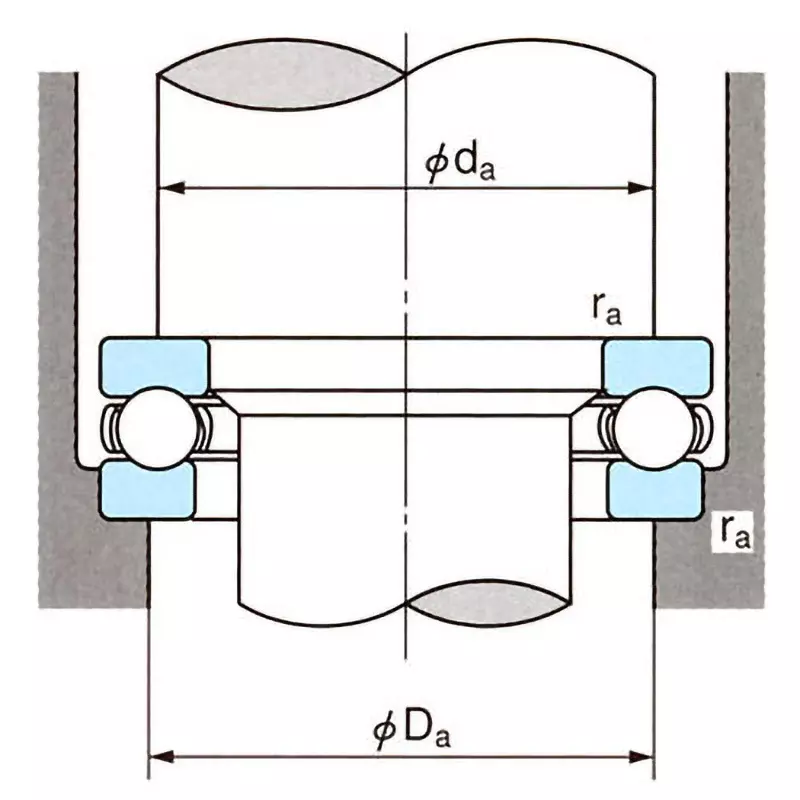

Mounting Dimension, Maximum ra (mm) |
0.6 |
Mounting Dimension, Minimum da (mm) |
121 |
Monotaro ID |
7031272 |
Mounting Dimension, Maximum Da (Φmm) |
114 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Chamfer Dimension r (mm) |
0.6 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
1700 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
2500 |
