| Inner Diameter | 65 mm |
| Outer Diameter | 100 mm |
| Material | High Carbon Chromium Steel |

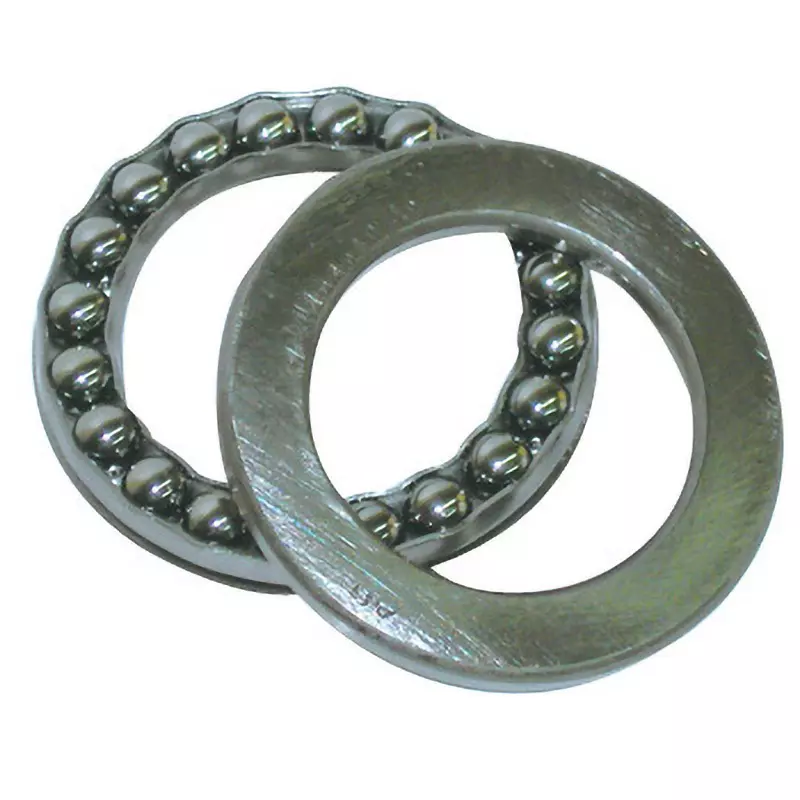

| Type of Product | Single Thrust Ball Bearings 51200 Series |
Inner Diameter |
65 mm |
Outer Diameter |
100 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Single Thrust Ball Bearings 51200 Series |
Model No |
51213 |
Country of Origin |
Japan |
Mass (g) |
770 |
Load direction |
Thrust |
Width T (mm) |
27 |
Outer ring type |
Flat |
No. of Track Trains |
Single row |
Shield Shape |
Open type |

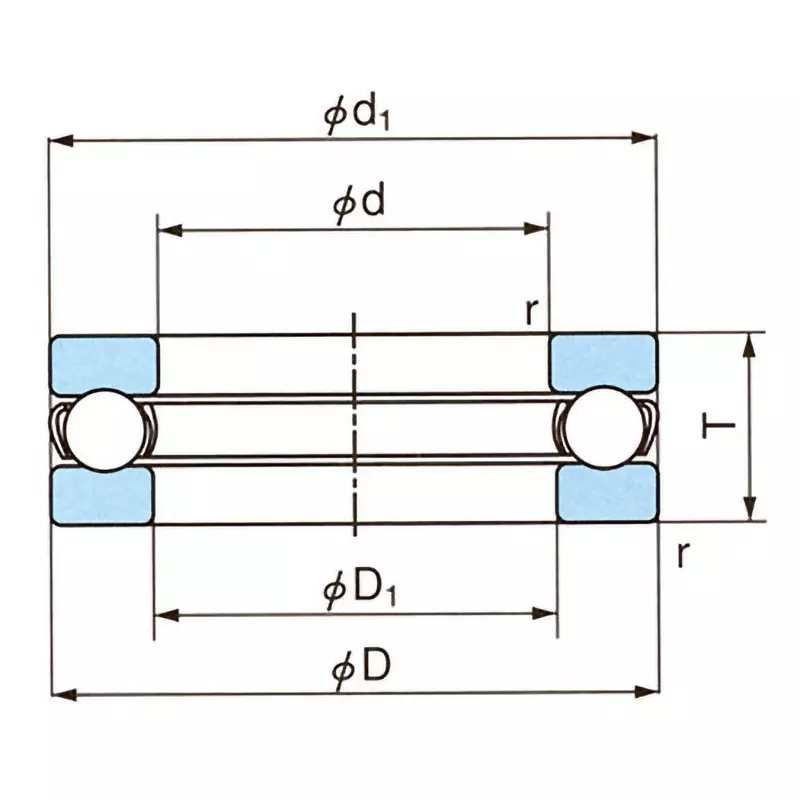

Inner Diameter D1 (Φmm) |
67 (minimum) |
Race ring shape |
Thrust ball bearing |
Outer Diameter d1 (Φmm) |
100 (maximum) |
Rolling element material |
High carbon chromium bearing steel |
JIS grade |
0 |
Basic dynamic load rating Ca (N) |
75000 |
Basic static load rating Coa (N) |
189000 |
Monotaro ID |
68557273 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Chamfer Dimension r (mm) |
1 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
1900 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
2800 |
