| Inner Diameter | 70 mm |
| Outer Diameter | 95 mm |
| Material | High Carbon Chromium Steel |

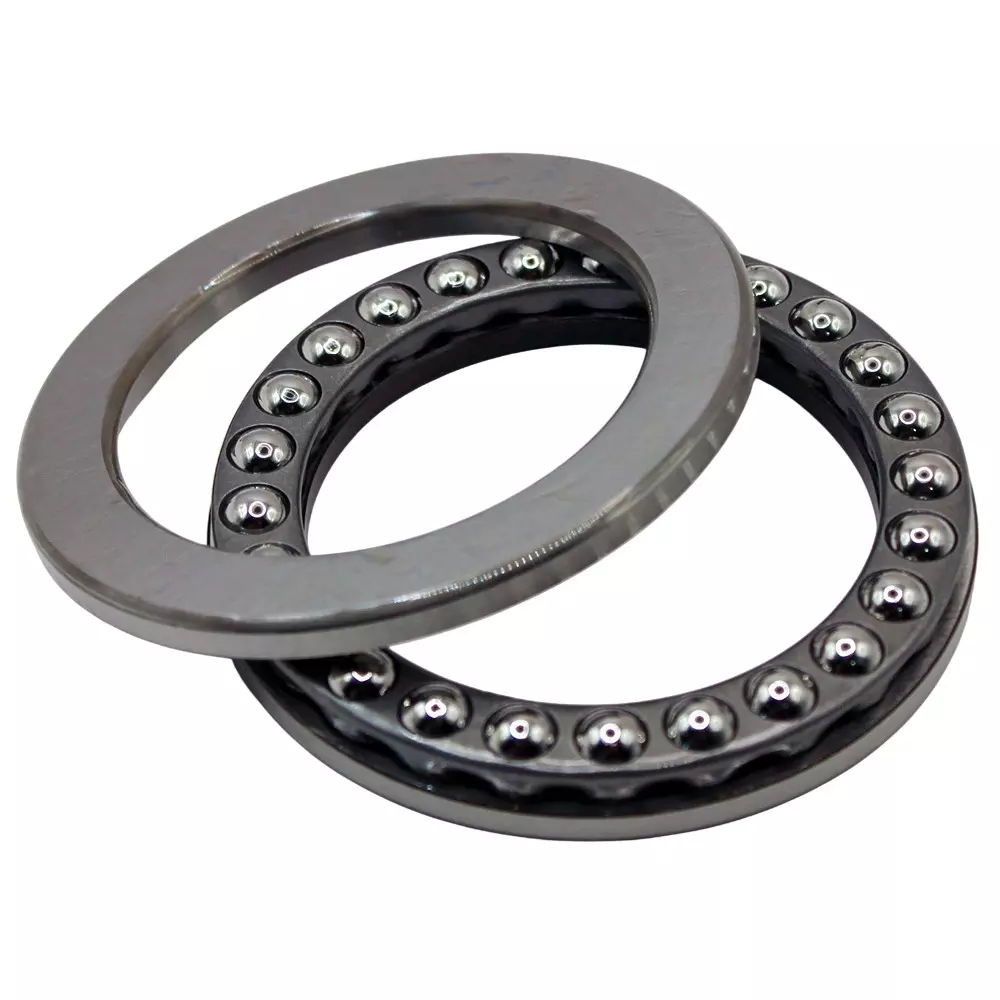

| Type of Product | Single Thrust Ball Bearings 51100 Series |
Inner Diameter |
70 mm |
Outer Diameter |
95 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Single Thrust Ball Bearings 51100 Series |
Model No |
51114 |
Country of Origin |
Japan |
Mass (g) |
360 |
Load direction |
Thrust |
Width T (mm) |
18 |
Outer ring type |
Flat |
Shield Shape |
Open type |
Inner Diameter D1 (Φmm) |
72 (minimum) |
Outer Diameter d1 (Φmm) |
95 (maximum) |
JIS grade |
0 |

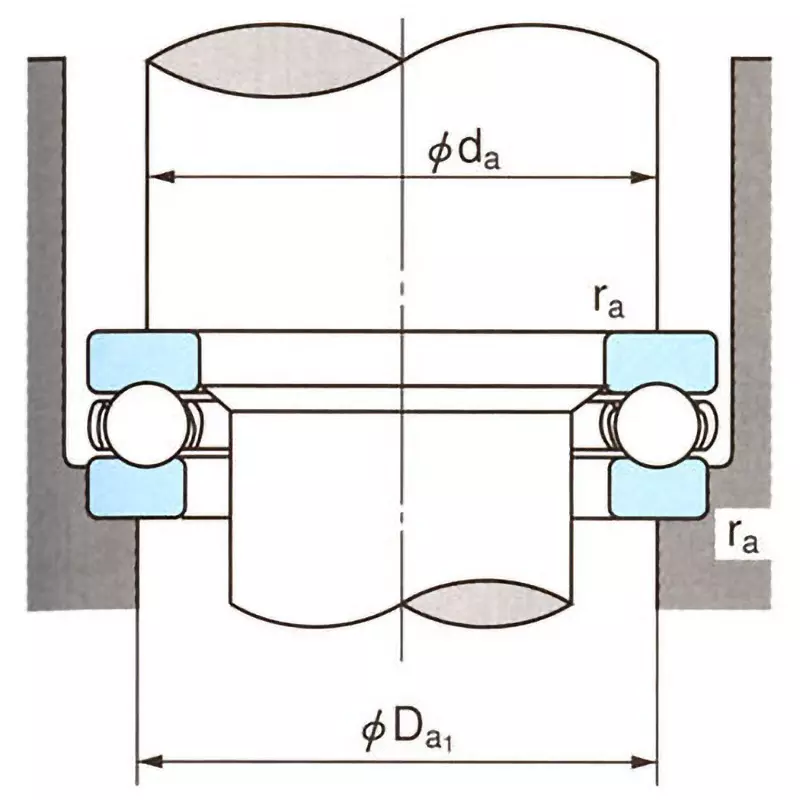

Mounting Dimension, Maximum Da1 (Φmm) |
80 |
Basic dynamic load rating Ca (N) |
43000 |
Basic static load rating Coa (N) |
127000 |
Mounting Dimension, Maximum ra (mm) |
1 |
Mounting Dimension, Minimum da (mm) |
85 |
Ball Material |
Resin |
Monotaro ID |
7029197 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Chamfer Dimension r (mm) |
1 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
2400 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
3600 |
