| Inner Diameter | 18 mm |
| Outer Diameter | 35 mm |
| Material | High Carbon Chromium Steel |
| Type of Product | Single Thrust Ball Bearings 2900 Series |
Inner Diameter |
18 mm |
Outer Diameter |
35 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Single Thrust Ball Bearings 2900 Series |
Model No |
2903 |
Country of Origin |
Japan |
Mass (g) |
45 |
Load direction |
Thrust |
Width T (mm) |
12 |
Outer ring type |
Flat |
Shield Shape |
Open type |
Inner Diameter D1 (Φmm) |
18.2 (minimum) |
Race ring shape |
Thrust ball bearing |
Outer Diameter d1 (Φmm) |
35 (max) |
JIS grade |
0 |
Basic dynamic load rating Ca (N) |
14400 |
Basic static load rating Coa (N) |
24700 |

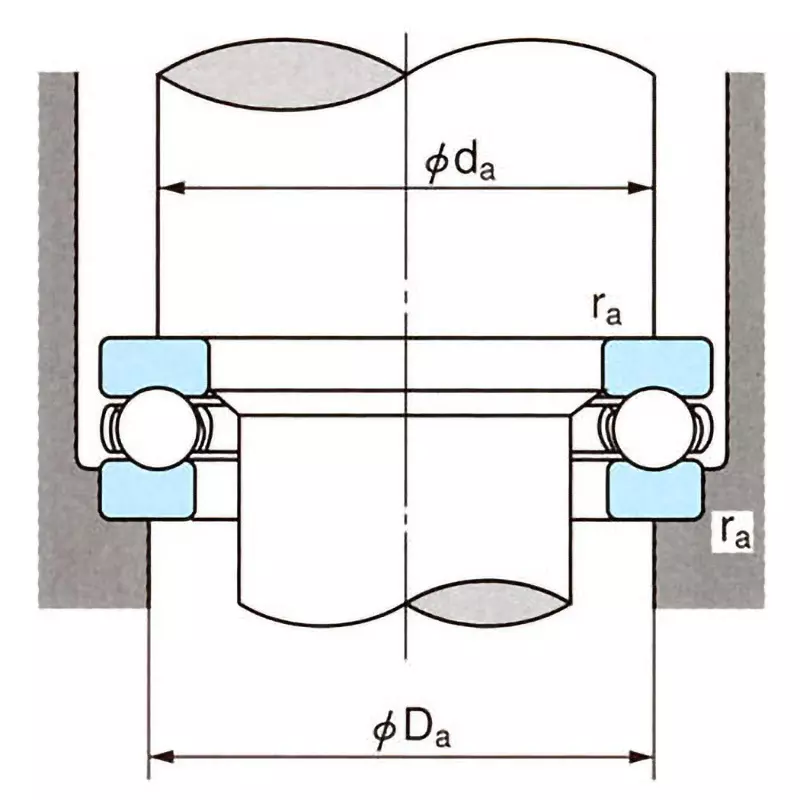

Mounting Dimension, Maximum ra (mm) |
0.6 |
Mounting Dimension, Minimum da (mm) |
28 |
Monotaro ID |
7031105 |
Mounting Dimension, Maximum Da (Φmm) |
25 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Chamfer Dimension r (mm) |
0.6 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
4800 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
7300 |
