| Inner Diameter | 82 mm |
| Material | High Carbon Chromium Steel |
| Type of Product | Single Thrust Ball Bearings 51300 Series |
| Model No | 51316 |
Inner Diameter |
82 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Single Thrust Ball Bearings 51300 Series |
Model No |
51316 |
Country of Origin |
Japan |
Load direction |
Thrust |
Outer ring type |
Flat |
No. of Track Trains |
Single row |
Shield Shape |
Open type |

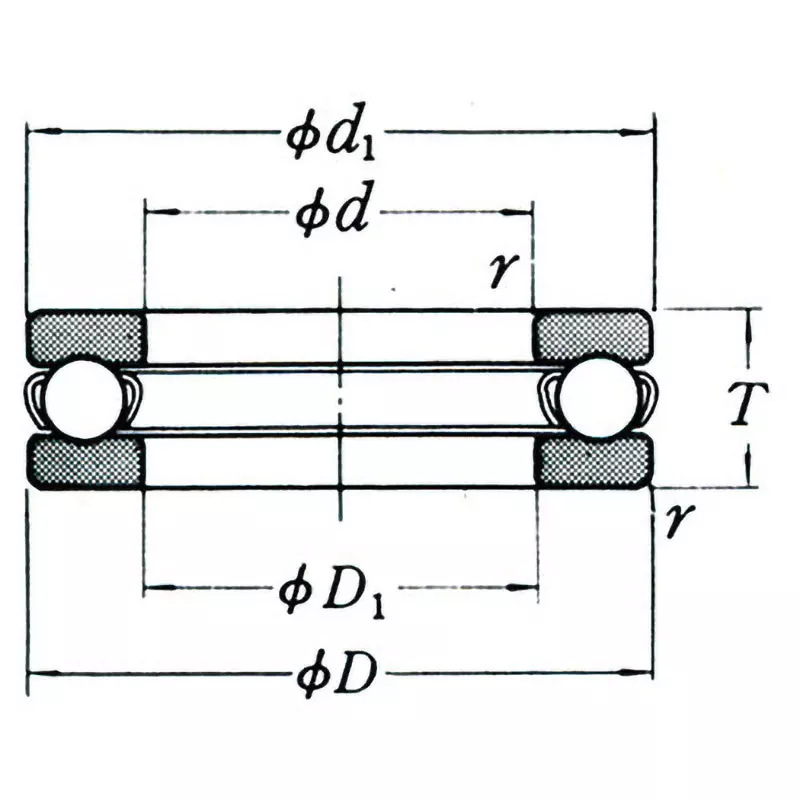

Inner Diameter D1 (Φmm) |
82 |
Race ring shape |
Thrust ball bearing |
Outer Diameter d1 (Φmm) |
140 |
Rolling element material |
High carbon chromium bearing steel |
Basic load rating Coa (N) |
395000 |
JIS grade |
0 |
Basic load rating Ca (N) |
164000 |
Monotaro ID |
32997894 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Chamfer Dimension r (mm) |
1.5 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
1300 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
1900 |
Mass (Kg) |
2.74 |
