| Inner Diameter | 20 mm |
| Outer Diameter | 40 mm |
| Material | High Carbon Chromium Steel |
| Type of Product | Single Thrust Ball Bearing 5353 Type (Aligning Seat Type) |
Inner Diameter |
20 mm |
Outer Diameter |
40 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Single Thrust Ball Bearing 5353 Type (Aligning Seat Type) |
Model No |
53204U |
Country of Origin |
Japan |
Mass (g) |
96 |
Width T (mm) |
14 |

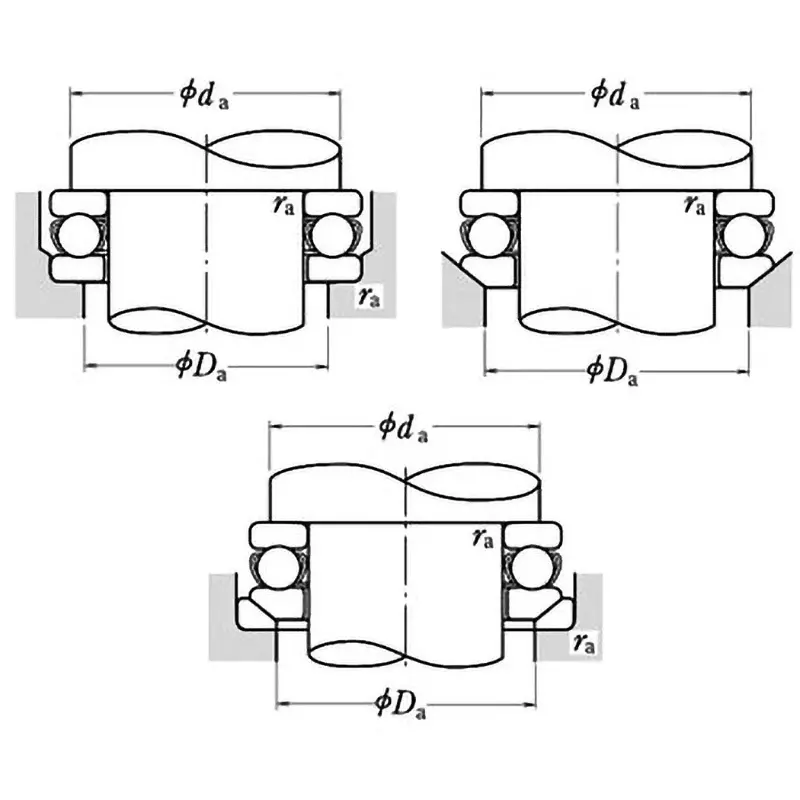

Mounting Dimension, Maximum ra (mm) |
0.6 |
Monotaro ID |
38397931 |

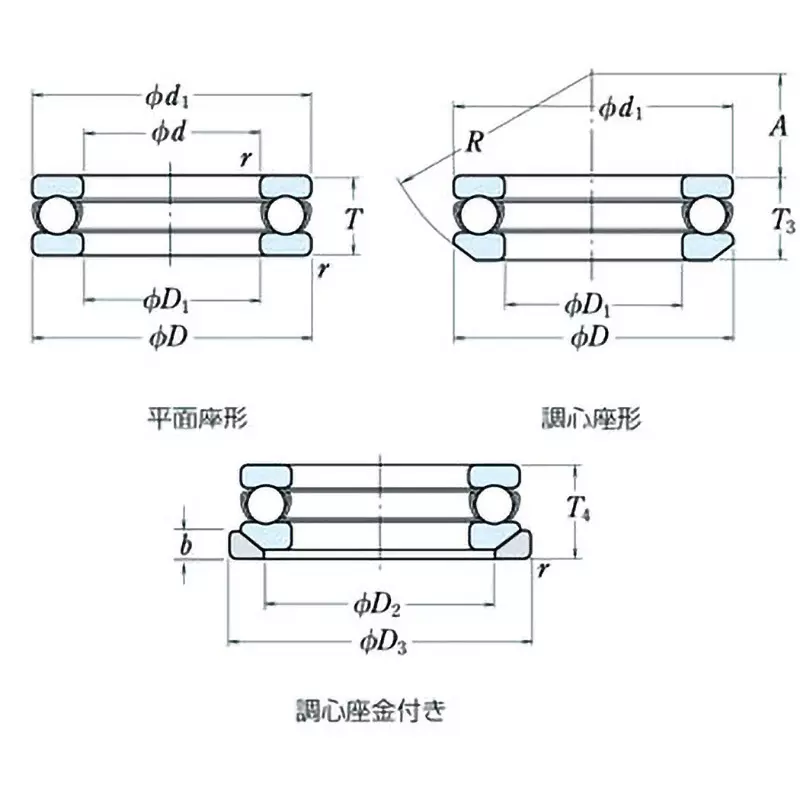

Dimension d1 (Φmm) |
22 |
Mounting Dimension, Maximum Da (Φmm) |
28 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
4300 |
Nominal No. |
53204U |
Dimension d3 (mm) |
42 |
Dimension R |
(Minimum) 0.6 mm |
Mounting Dimension, Maximum da (mm) |
32 |
Dimension T4 (mm) |
17 |
Dimension T3 (mm) |
14.7 |
Dimension d2 (Φmm) |
30 |
Dimensions B (mm) |
5 |
Dimensions A (mm) |
18 |
