Ships within 25 days
View
View
View
View
| Inner Diameter | 85 mm |
| Outer Diameter | 150 mm |
| Material | High Carbon Chromium Steel |
| Type of Product | Single Thrust Ball Bearing 5353 Type (Aligning Seat Type) |
Inner Diameter |
85 mm |
Outer Diameter |
150 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Single Thrust Ball Bearing 5353 Type (Aligning Seat Type) |
Model No |
53317U |
Country of Origin |
Japan |
Width T (mm) |
49 |
Mounting Dimension, Maximum ra (mm) |
1.5 |
Monotaro ID |
38398315 |

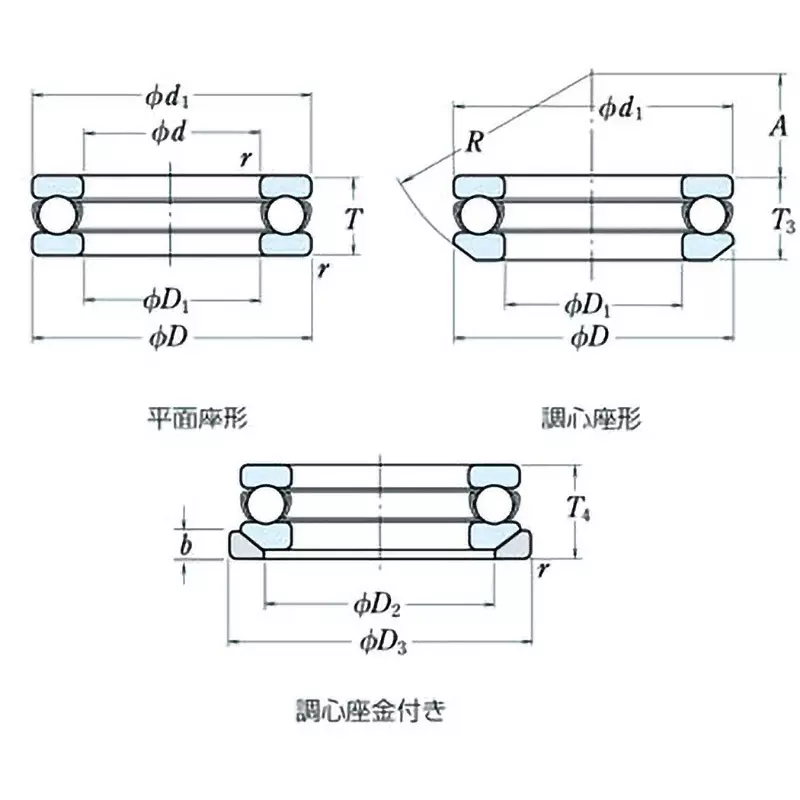

Dimension d1 (Φmm) |
88 |
Mounting Dimension, Maximum Da (Φmm) |
111 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
1100 |
Mass (Kg) |
4.67 |
Nominal No. |
53317U |
Dimension d3 (mm) |
155 |
Dimension R |
(Minimum) 1.5 mm |
Mounting Dimension, Maximum da (mm) |
124 |
Dimension T4 (mm) |
58 |
Dimension T3 (mm) |
53.1 |
Dimension d2 (Φmm) |
115 |
Dimensions B (mm) |
17.5 |
Dimensions A (mm) |
43 |
