| Inner Diameter | 35 mm |
| Outer Diameter | 62 mm |
| Material | High Carbon Chromium Steel |
| Type of Product | Double Thrust Ball Bearing Type 54200 (Aligning Seat Type) |
Inner Diameter |
35 mm |
Outer Diameter |
62 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Double Thrust Ball Bearing Type 54200 (Aligning Seat Type) |
Model No |
54207U |
Country of Origin |
Japan |
Mass (g) |
570 |

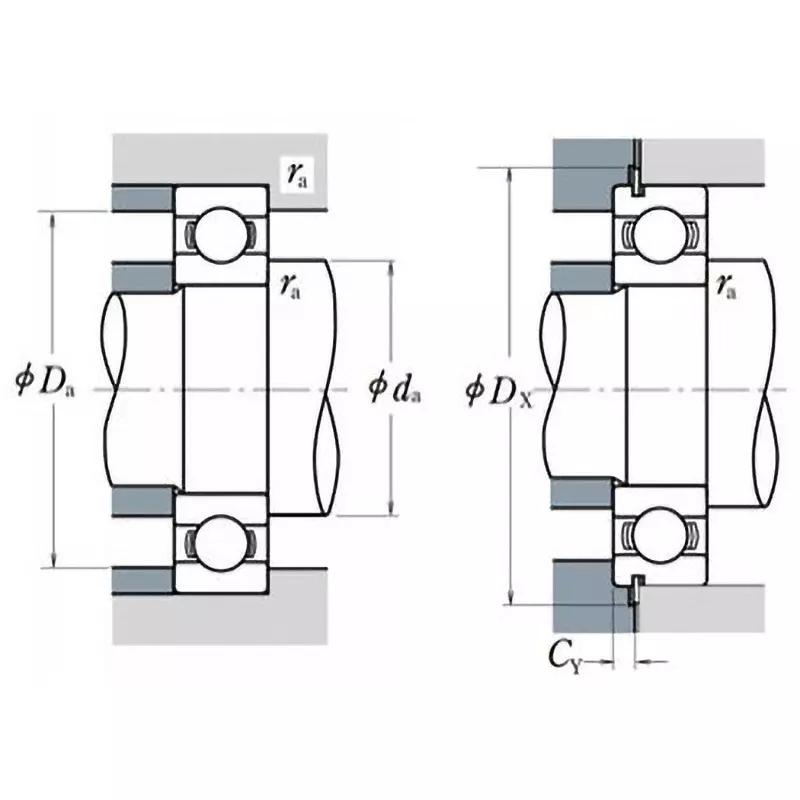

Mounting Dimension, Maximum ra (mm) |
1 |
Monotaro ID |
38399033 |
Dimension d1 (Φmm) |
37 |
Mounting Dimension, Maximum Da (Φmm) |
48 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Dimension R |
(Minimum) 1 mm |
Dimension t2 (mm) |
21 |
Dimension T5 (mm) |
34 |
Dimension d2 (Φmm) |
48 |
Dimensions B (mm) |
8 |
Dimension r1 (mm) |
(Minimum) 0.3 |
Dimension d3 (Φmm) |
65 |
Dimension A1 |
21 mm |
Dimension T6 (mm) |
22.9 |
