| Inner Diameter | 320 mm |
| Outer Diameter | 440 mm |
| Material | High Carbon Chromium Steel |
| Type of Product | Single Thrust Ball Bearing Type 51200 |
Inner Diameter |
320 mm |
Outer Diameter |
440 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Single Thrust Ball Bearing Type 51200 |
Model No |
51264XM |
Country of Origin |
Japan |
Load direction |
Thrust |
Width T (mm) |
95 |
Outer ring type |
Flat |
Shield Shape |
Open type |
Basic load rating Coa (N) |
2680000 |
JIS grade |
0 |
Basic load rating Ca (N) |
585000 |

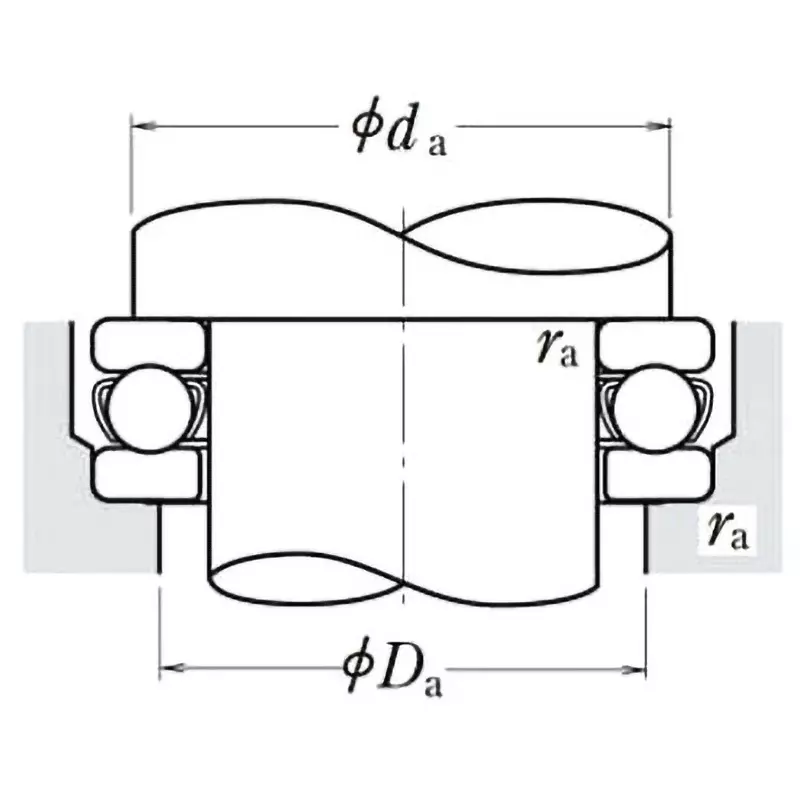

Mounting Dimension, Maximum ra (mm) |
2.5 |
Monotaro ID |
38396906 |

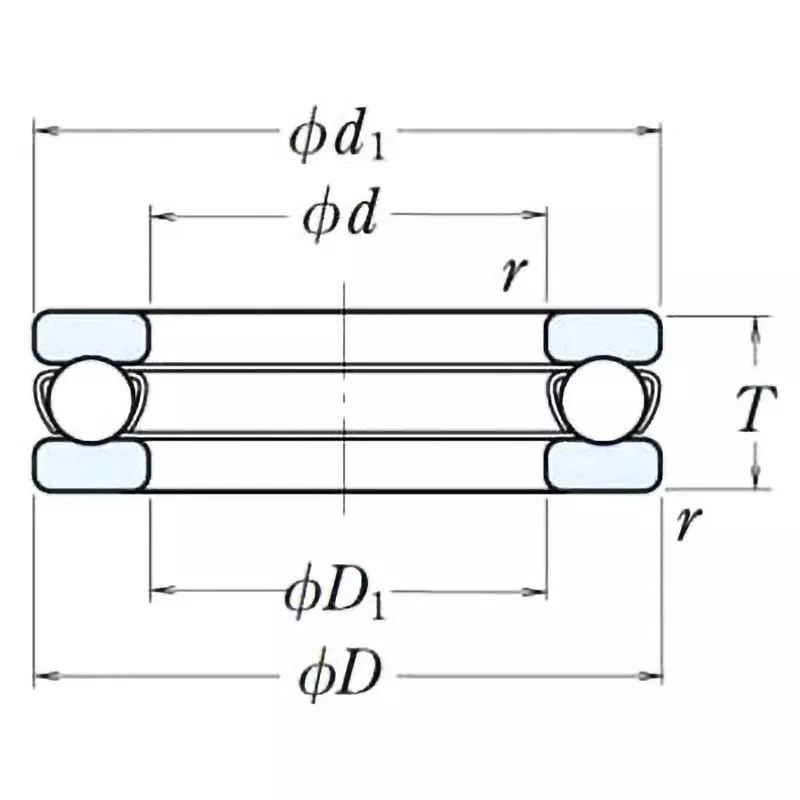

Dimension d1 (Φmm) |
325 |
Mounting Dimension, Maximum Da (Φmm) |
369 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
450 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
670 |
Mass (Kg) |
45 |
Nominal No. |
51264 |
Dimension R |
(Minimum) 3 mm |
Mounting Dimension, Maximum da (mm) |
391 |
