| Inner Diameter | 110 mm |
| Outer Diameter | 190 mm |
| Material | High Carbon Chromium Steel |
| Type of Product | Single Thrust Ball Bearing 5151 Type |
Inner Diameter |
110 mm |
Outer Diameter |
190 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Single Thrust Ball Bearing 5151 Type |
Model No |
51322X |
Country of Origin |
Japan |
Load direction |
Thrust |
Width T (mm) |
63 |
Outer ring type |
Flat |
Shield Shape |
Open type |
Basic load rating Coa (N) |
755000 |
JIS grade |
0 |
Basic load rating Ca (N) |
282000 |

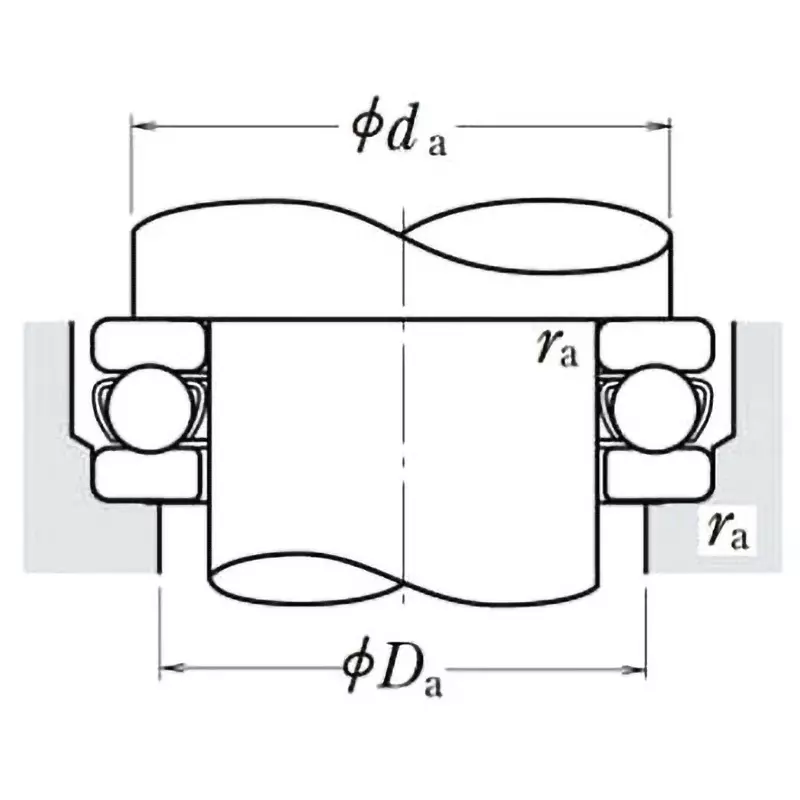

Mounting Dimension, Maximum ra (mm) |
2 |
Monotaro ID |
38397082 |

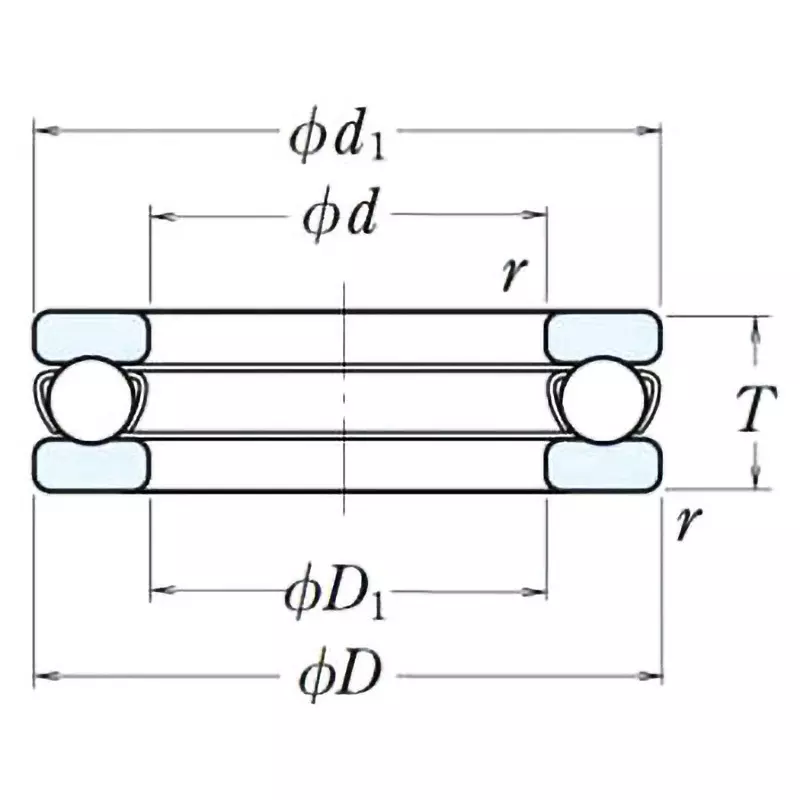

Dimension d1 (Φmm) |
113 |
Mounting Dimension, Maximum Da (Φmm) |
142 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
900 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
1300 |
Mass (Kg) |
7.19 |
Nominal No. |
51322 |
Dimension R |
(Minimum) 2 mm |
Mounting Dimension, Maximum da (mm) |
158 |
