| Inner Diameter | 35 mm |
| Outer Diameter | 68 mm |
| Material | High Carbon Chromium Steel |
| Type of Product | Double Thrust Ball Bearing Type 52300 |
Inner Diameter |
35 mm |
Outer Diameter |
68 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Double Thrust Ball Bearing Type 52300 |
Model No |
52307 |
Country of Origin |
Japan |
Mass (g) |
710 |
Width T (mm) |
44 |
Basic load rating Coa (N) |
105000 |
JIS grade |
0 |
Basic load rating Ca (N) |
56000 |

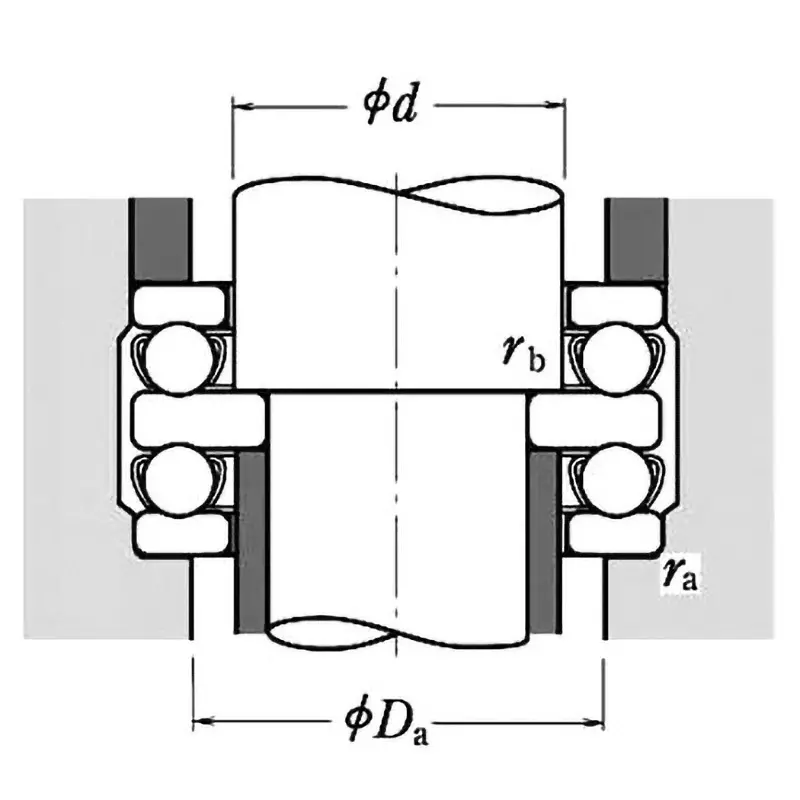

Mounting Dimension, Maximum ra (mm) |
1 |
Monotaro ID |
38398841 |
Dimension d1 (Φmm) |
37 |
Mounting Dimension, Maximum Da (Φmm) |
52 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
2400 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
3600 |
Nominal No. |
52307 |
Dimension R |
(Minimum) 1 mm |
Dimension t2 (mm) |
27 |
Dimension d2 (Φmm) |
30 |
Dimensions B (mm) |
10 |
Dimension r1 (mm) |
(Minimum) 0.3 |
Dimension d3 (Φmm) |
68 |
