| Inner Diameter | 200 mm |
| Outer Diameter | 280 mm |
| Material | High Carbon Chromium Steel |
| Type of Product | Single Thrust Ball Bearing Type 51200 |
Inner Diameter |
200 mm |
Outer Diameter |
280 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Single Thrust Ball Bearing Type 51200 |
Model No |
51240XM |
Country of Origin |
Japan |
Load direction |
Thrust |
Width T (mm) |
62 |
Outer ring type |
Flat |
Shield Shape |
Open type |
Basic load rating Coa (N) |
1110000 |
JIS grade |
0 |
Basic load rating Ca (N) |
315000 |

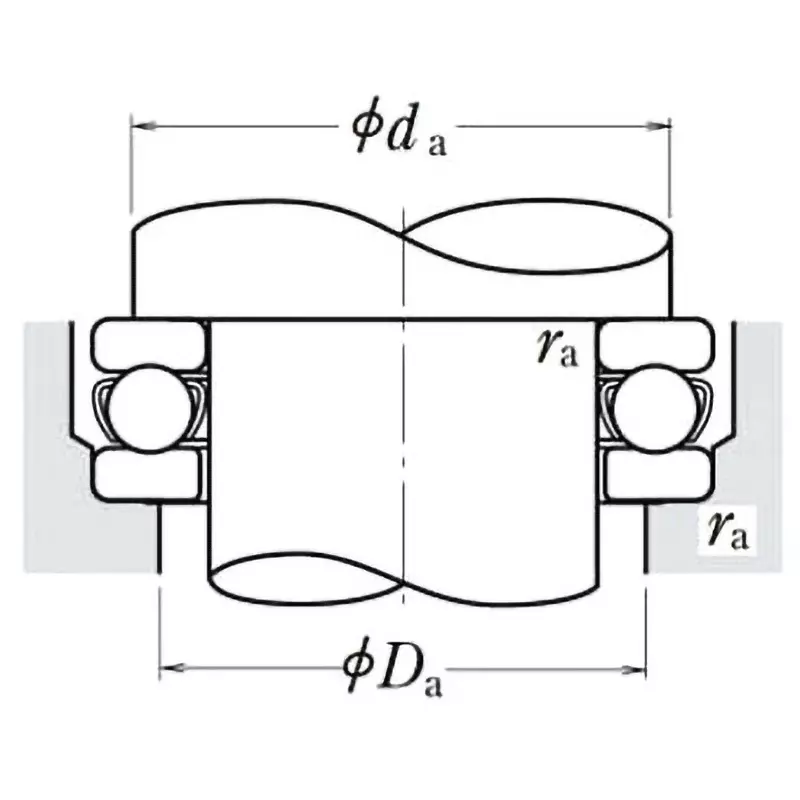

Mounting Dimension, Maximum ra (mm) |
2 |
Monotaro ID |
38396845 |

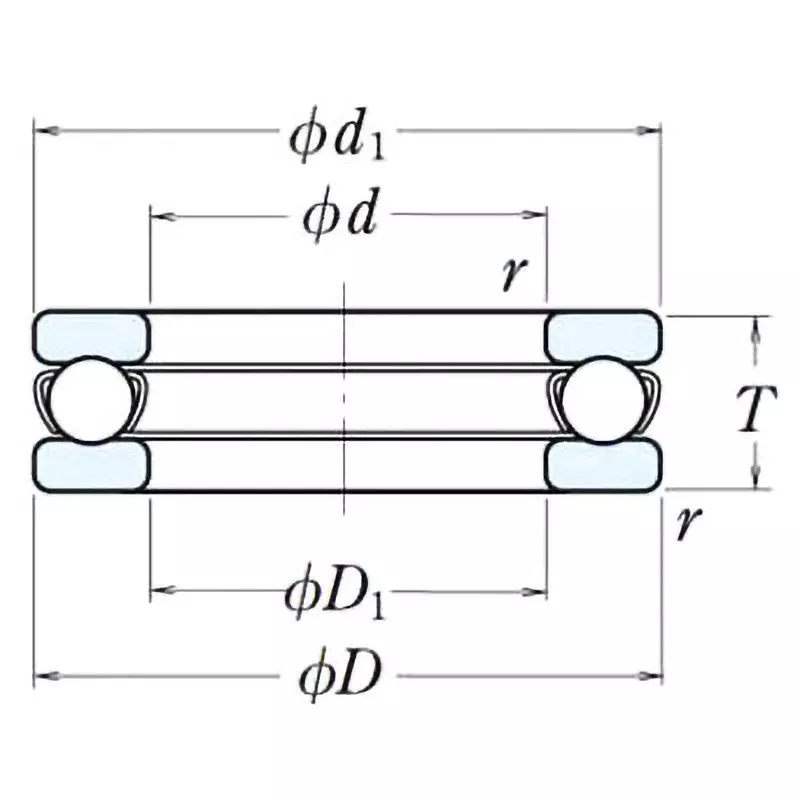

Dimension d1 (Φmm) |
204 |
Mounting Dimension, Maximum Da (Φmm) |
232 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
710 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
1100 |
Mass (Kg) |
12.3 |
Nominal No. |
51240 |
Dimension R |
(Minimum) 2 mm |
Mounting Dimension, Maximum da (mm) |
248 |
