| Inner Diameter | 65 mm |
| Outer Diameter | 100 mm |
| Material | High Carbon Chromium Steel |
| Type of Product | Single Thrust Ball Bearing 5353 Type (Aligning Seat Type) |
Inner Diameter |
65 mm |
Outer Diameter |
100 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Single Thrust Ball Bearing 5353 Type (Aligning Seat Type) |
Model No |
53213U |
Country of Origin |
Japan |
Mass (g) |
989 |
Width T (mm) |
27 |

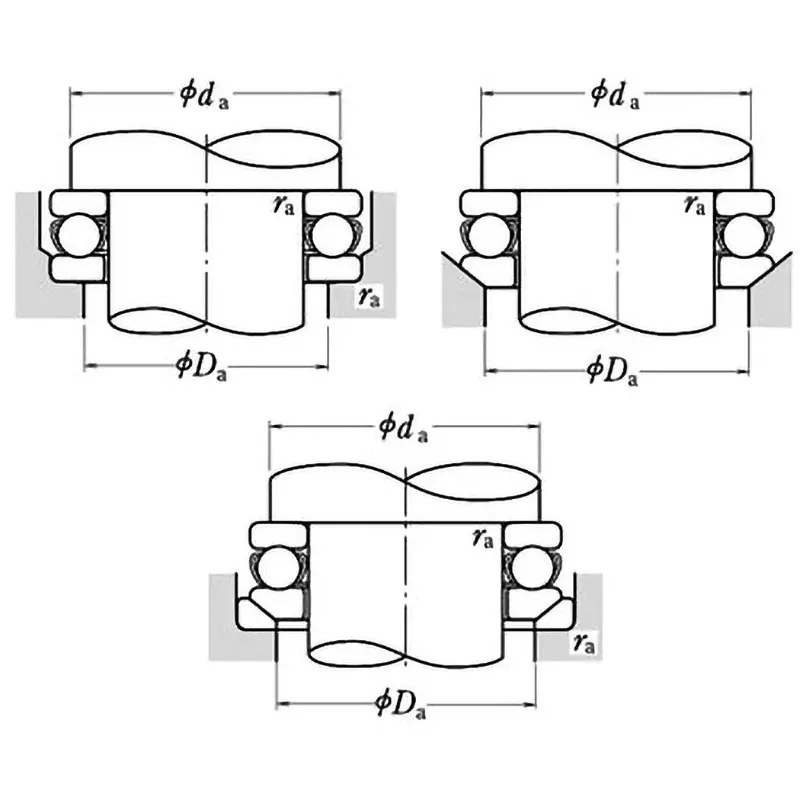

Mounting Dimension, Maximum ra (mm) |
1 |
Monotaro ID |
38398026 |

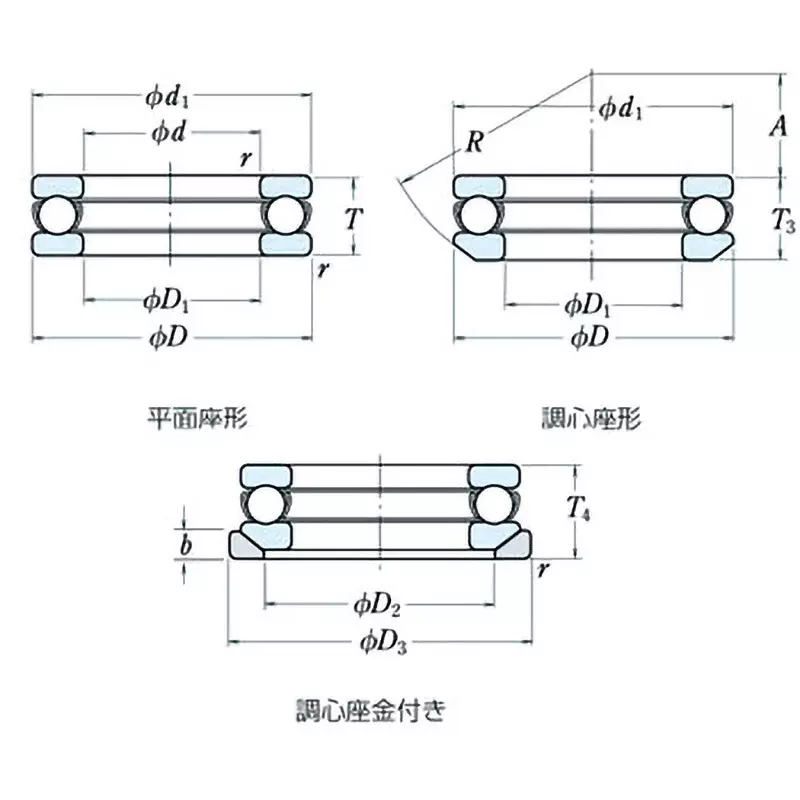

Dimension d1 (Φmm) |
67 |
Mounting Dimension, Maximum Da (Φmm) |
79 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
1900 |
Nominal No. |
53213U |
Dimension d3 (mm) |
105 |
Dimension R |
(Minimum) 1 mm |
Mounting Dimension, Maximum da (mm) |
86 |
Dimension T4 (mm) |
32 |
Dimension T3 (mm) |
28.7 |
Dimension d2 (Φmm) |
82 |
Dimensions B (mm) |
9 |
Dimensions A (mm) |
40 |
