| Inner Diameter | 40 mm |
| Outer Diameter | 90 mm |
| Material | High Carbon Chromium Steel |
| Type of Product | Single Thrust Ball Bearing 5353 Type (Aligning Seat Type) |
Inner Diameter |
40 mm |
Outer Diameter |
90 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Single Thrust Ball Bearing 5353 Type (Aligning Seat Type) |
Model No |
53408U |
Country of Origin |
Japan |
Width T (mm) |
36 |

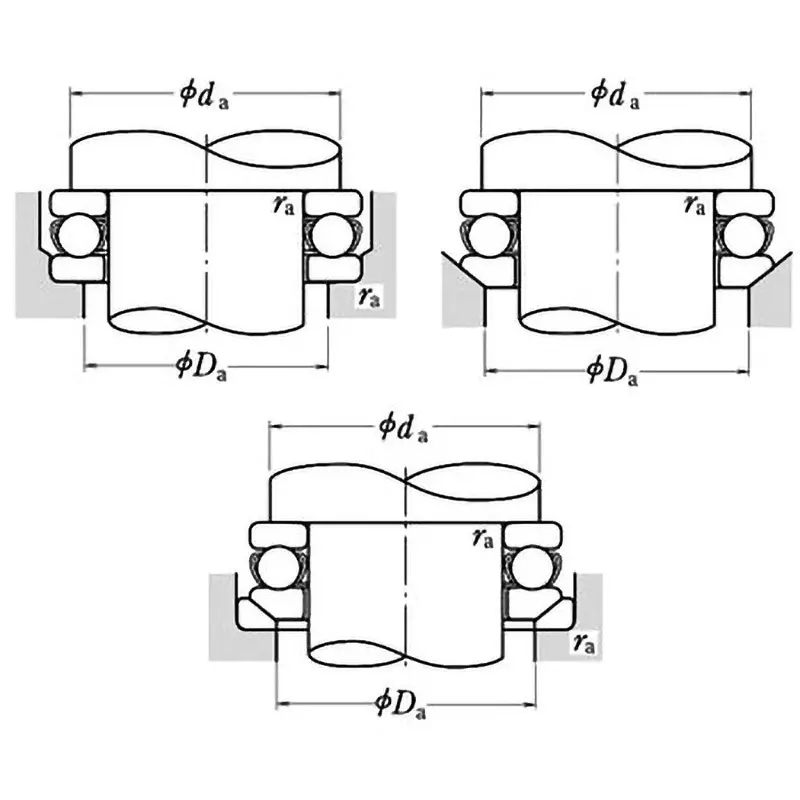

Mounting Dimension, Maximum ra (mm) |
1 |
Monotaro ID |
38398455 |

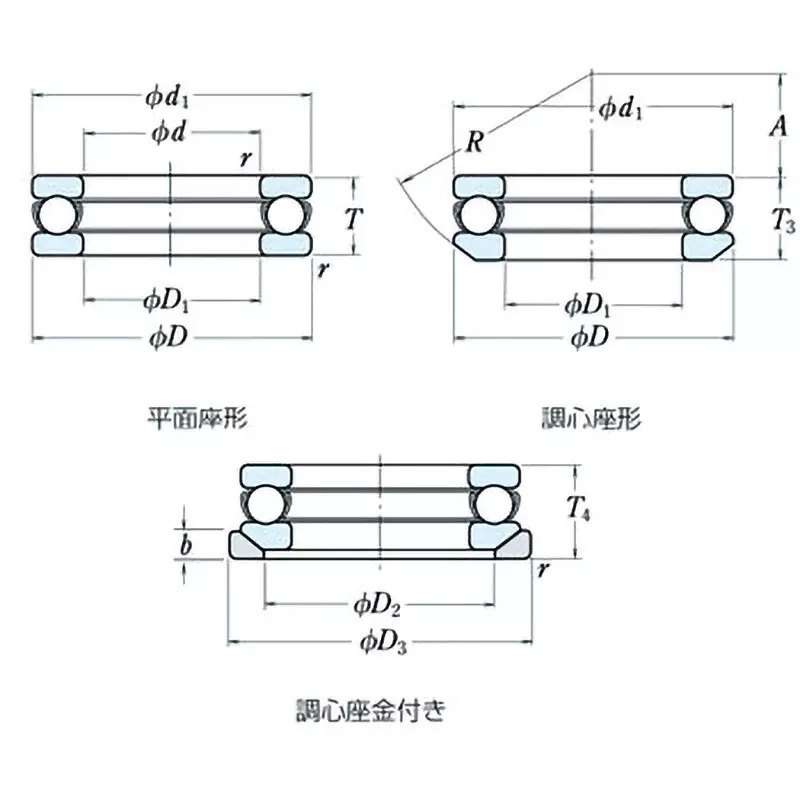

Dimension d1 (Φmm) |
42 |
Mounting Dimension, Maximum Da (Φmm) |
60 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
1700 |
Mass (Kg) |
1.38 |
Nominal No. |
51408U |
Dimension d3 (mm) |
95 |
Dimension R |
(Minimum) 1.1 mm |
Mounting Dimension, Maximum da (mm) |
70 |
Dimension T4 (mm) |
42 |
Dimension T3 (mm) |
38.200000000000003 |
Dimension d2 (Φmm) |
65 |
Dimensions B (mm) |
12 |
Dimensions A (mm) |
26 |
