| Type of Product | Double-direction Thrust Ball Bearing (with Aligning Washer) |
| Model No | 54208U |
| Type | With aligning washer |
| Country of Origin | Japan |
Type of Product |
Double-direction Thrust Ball Bearing (with Aligning Washer) |
Model No |
54208U |
Type |
With aligning washer |
Country of Origin |
Japan |
No. of Track Trains |
Double row |
Race ring shape |
Thrust ball bearing |
Monotaro ID |
12424180 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Nominal No. |
54208U |

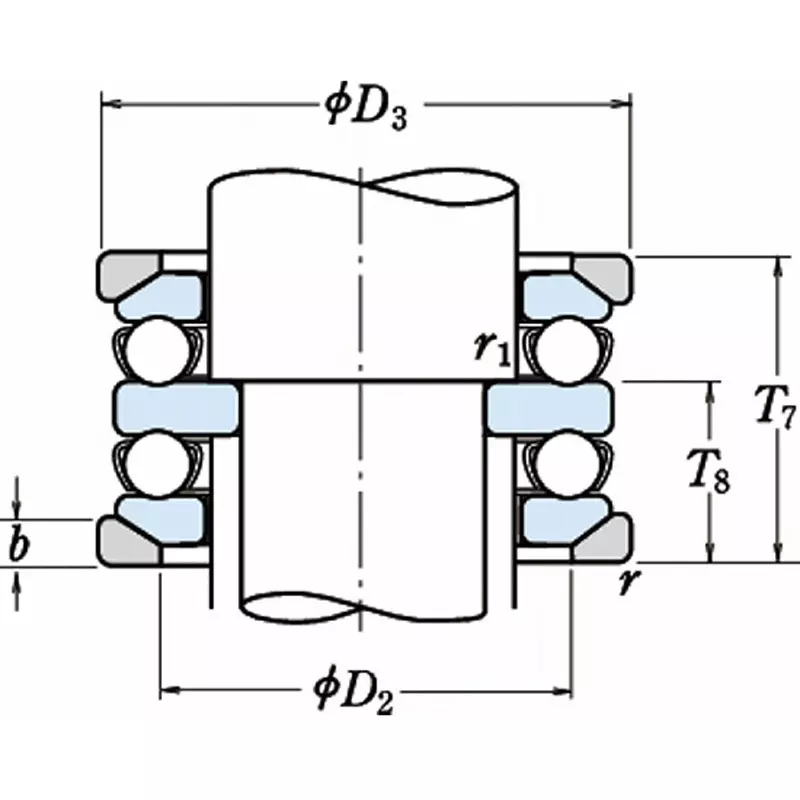

Dimension t1 (mm) |
36 |
Number |
【NSK】54208U |
Dimension r1 (min) (mm) |
0.6 |
Dimension d3 (mm) |
68 |
Dimension R |
[Minimum] 1 mm |
Dimension D2 (mm) |
30 |
Dimensions D (mm) |
40 |
Dimension T7 (mm) |
44 |
Dimension T5 (mm) |
36 |
