| Inner Diameter | 110 mm |
| Outer Diameter | 190 mm |
| Material | High Carbon Chromium Steel |
| Type of Product | Double Thrust Ball Bearing Type 52300 |
Inner Diameter |
110 mm |
Outer Diameter |
190 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Double Thrust Ball Bearing Type 52300 |
Model No |
52322 |
Country of Origin |
Japan |
Width T (mm) |
110 |
Basic load rating Coa (N) |
755000 |
JIS grade |
0 |
Basic load rating Ca (N) |
282000 |

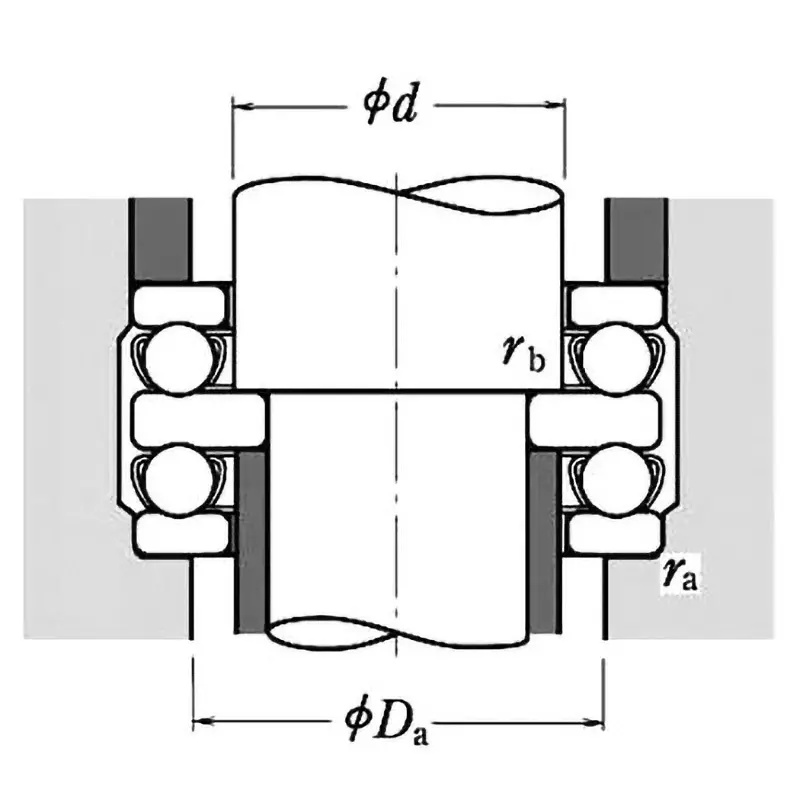

Mounting Dimension, Maximum ra (mm) |
2 |
Monotaro ID |
38398972 |

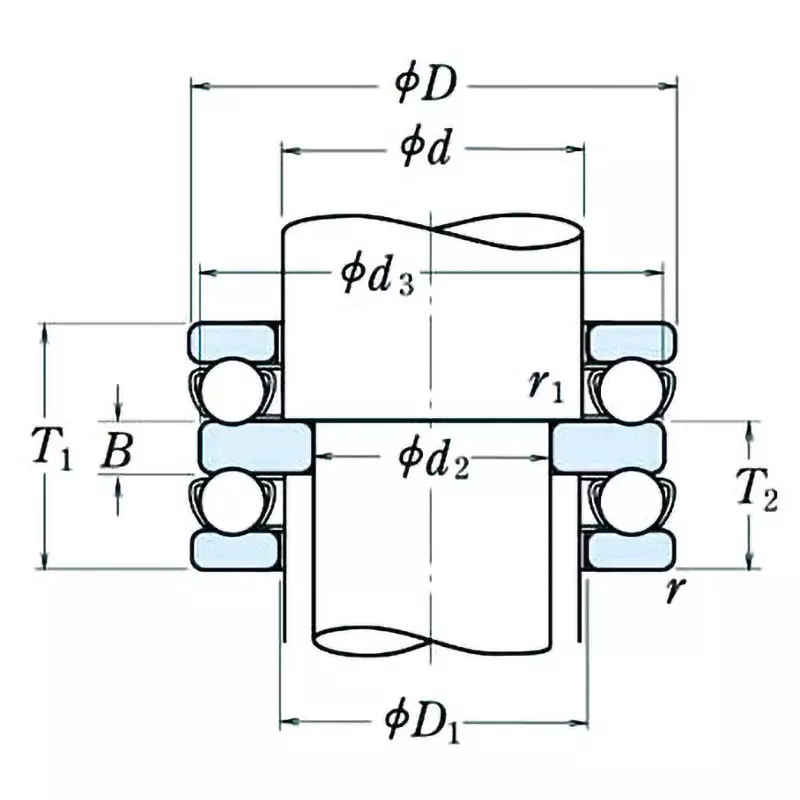

Dimension d1 (Φmm) |
113 |
Mounting Dimension, Maximum Da (Φmm) |
150 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
850 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
1300 |
Mass (Kg) |
12.7 |
Nominal No. |
52322 |
Dimension R |
(Minimum) 2 mm |
Dimension t2 (mm) |
67 |
Dimension d2 (Φmm) |
95 |
Dimensions B (mm) |
24 |
Dimension r1 (mm) |
(Minimum) 1 |
Dimension d3 (Φmm) |
189.5 |
