| Inner Diameter | 80 mm |
| Outer Diameter | 115 mm |
| Material | High Carbon Chromium Steel |
| Type of Product | Double Thrust Ball Bearing Type 54200 (Aligning Seat Type) |
Inner Diameter |
80 mm |
Outer Diameter |
115 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Double Thrust Ball Bearing Type 54200 (Aligning Seat Type) |
Model No |
54216U |
Country of Origin |
Japan |

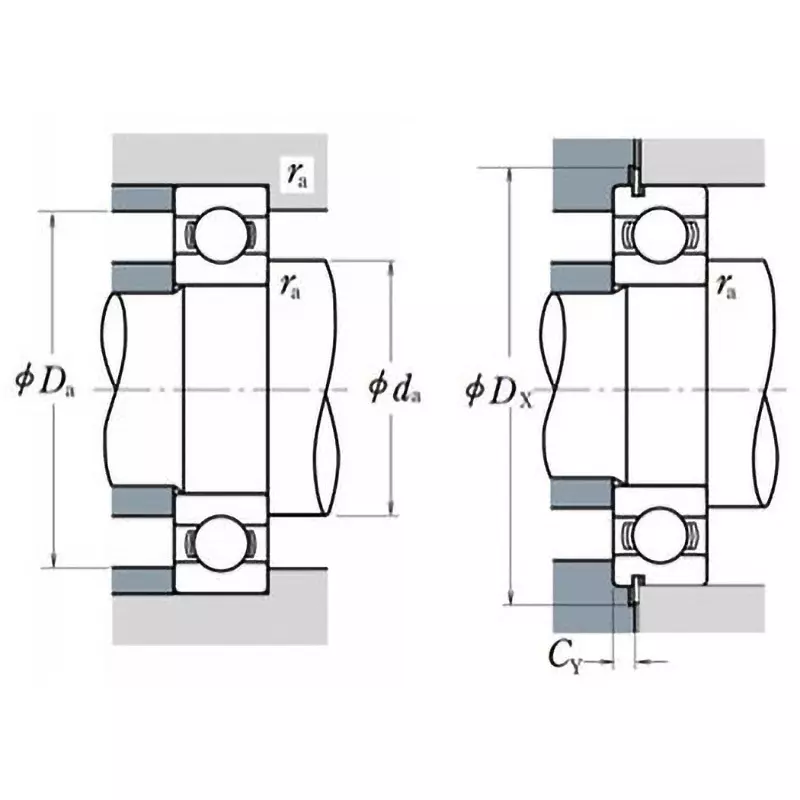

Mounting Dimension, Maximum ra (mm) |
1 |
Monotaro ID |
38399121 |
Dimension d1 (Φmm) |
82 |
Mounting Dimension, Maximum Da (Φmm) |
98 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Mass (Kg) |
2.21 |
Dimension R |
(Minimum) 1 mm |
Dimension t2 (mm) |
29 |
Dimension T5 (mm) |
51 |
Dimension d2 (Φmm) |
98 |
Dimensions B (mm) |
10 |
Dimension r1 (mm) |
(Minimum) 1 |
Dimension d3 (Φmm) |
120 |
Dimension A1 |
45 mm |
Dimension T6 (mm) |
30.5 |
