| Inner Diameter | 50 mm |
| Outer Diameter | 78 mm |
| Material | High Carbon Chromium Steel |

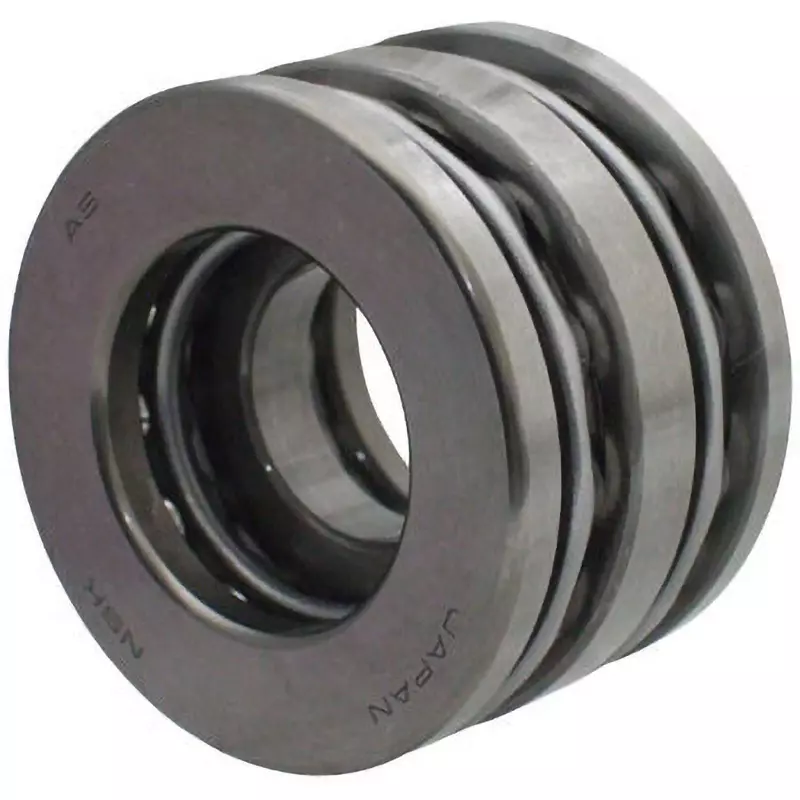

| Type of Product | Double Thrust Ball Bearings 52200 Series |
Inner Diameter |
50 mm |
Outer Diameter |
78 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Double Thrust Ball Bearings 52200 Series |
Model No |
52210 |
Country of Origin |
Japan |
Mass (g) |
697 |
Load direction |
Thrust |

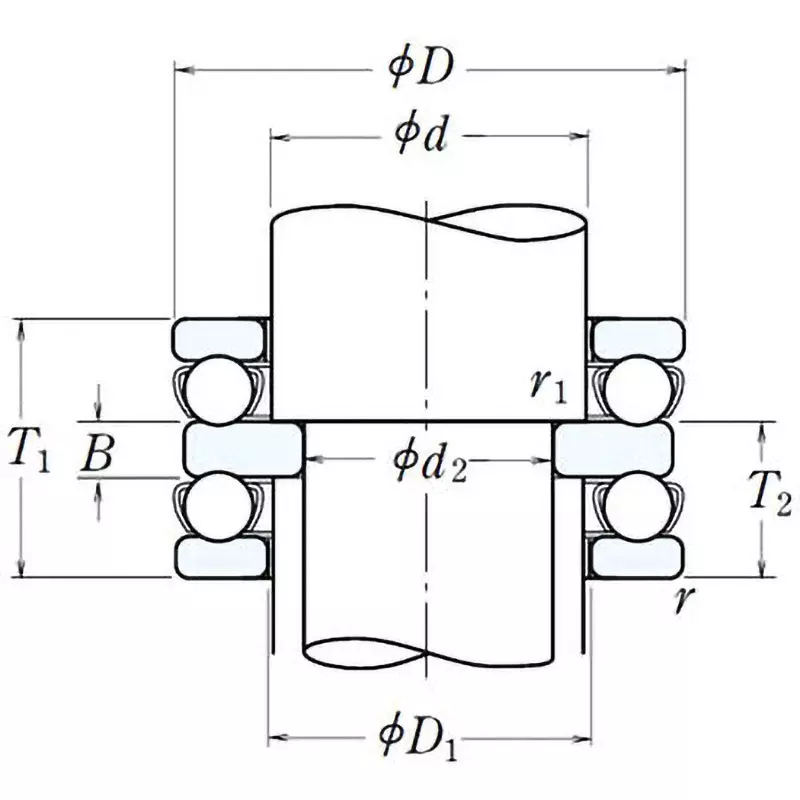

Width T (mm) |
39 |
Outer ring type |
Flat |
Shield Shape |
Open type |
Inner Diameter D1 (Φmm) |
52 |
Race ring shape |
Thrust ball bearing |
Basic load rating Coa (N) |
111000 |
JIS grade |
0 |
Basic load rating Ca (N) |
49000 |
Monotaro ID |
32998016 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Chamfer Dimension r (mm) |
1 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
2400 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
3400 |
Dimension t1 (mm) |
39 |
Dimension t2 (mm) |
24 |
Inner diameter D2 (Φmm) |
40 |
Chamfer Dimension r1 (mm) |
0.6 (minimum) |
