Ships within 25 days
View
View
View
View
| Inner Diameter | 65 mm |
| Outer Diameter | 115 mm |
| Material | High Carbon Chromium Steel |

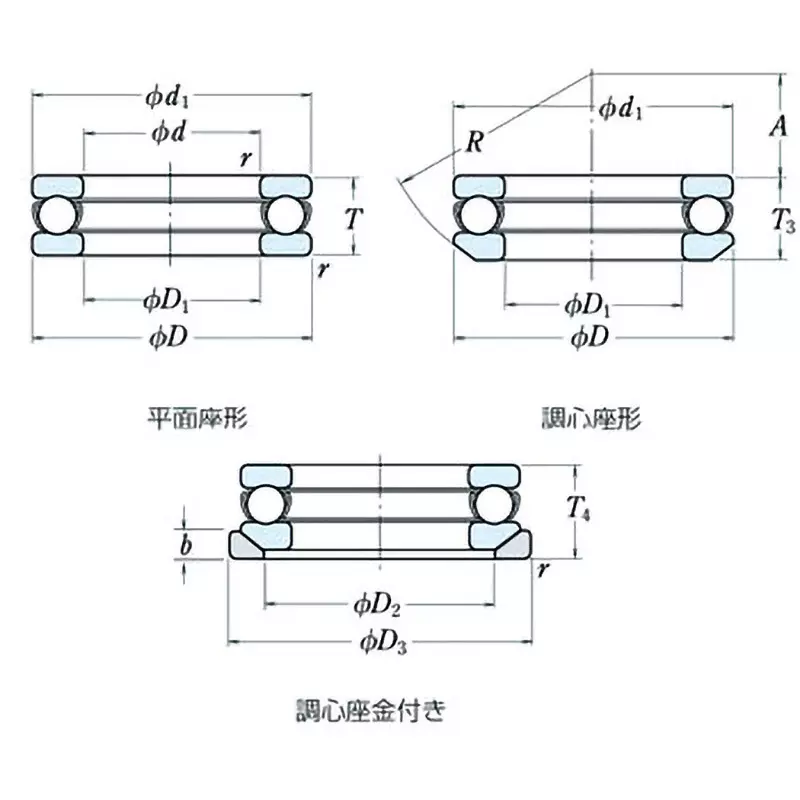

| Type of Product | Single Thrust Ball Bearing 5353 Type (Aligning Seat Type) |
Inner Diameter |
65 mm |
Outer Diameter |
115 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Single Thrust Ball Bearing 5353 Type (Aligning Seat Type) |
Model No |
53313U |
Country of Origin |
Japan |
Width T (mm) |
36 |
Mounting Dimension, Maximum ra (mm) |
1 |
Monotaro ID |
38398272 |
Dimension d1 (Φmm) |
67 |
Mounting Dimension, Maximum Da (Φmm) |
85 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
1500 |
Mass (Kg) |
2.04 |
Nominal No. |
53313U |
Dimension d3 (mm) |
120 |
Dimension R |
(Minimum) 1.1 mm |
Mounting Dimension, Maximum da (mm) |
95 |
Dimension T4 (mm) |
43 |
Dimension T3 (mm) |
39.4 |
Dimension d2 (Φmm) |
90 |
Dimensions B (mm) |
12.5 |
Dimensions A (mm) |
38.5 |
