| Inner Diameter | 65 mm |
| Outer Diameter | 100 mm |
| Material | High Carbon Chromium Steel |
| Type of Product | Double Thrust Ball Bearing 52200 Type |
Inner Diameter |
65 mm |
Outer Diameter |
100 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Double Thrust Ball Bearing 52200 Type |
Model No |
52213 |
Country of Origin |
Japan |

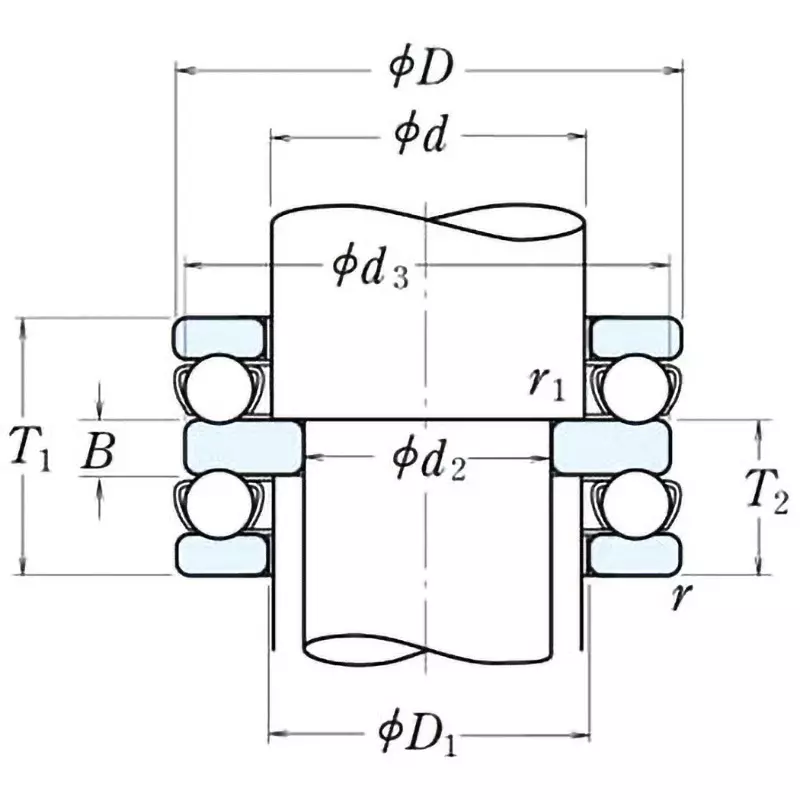

Width T (mm) |
47 |
Basic load rating Coa (N) |
189000 |
JIS grade |
0 |
Basic load rating Ca (N) |
75500 |

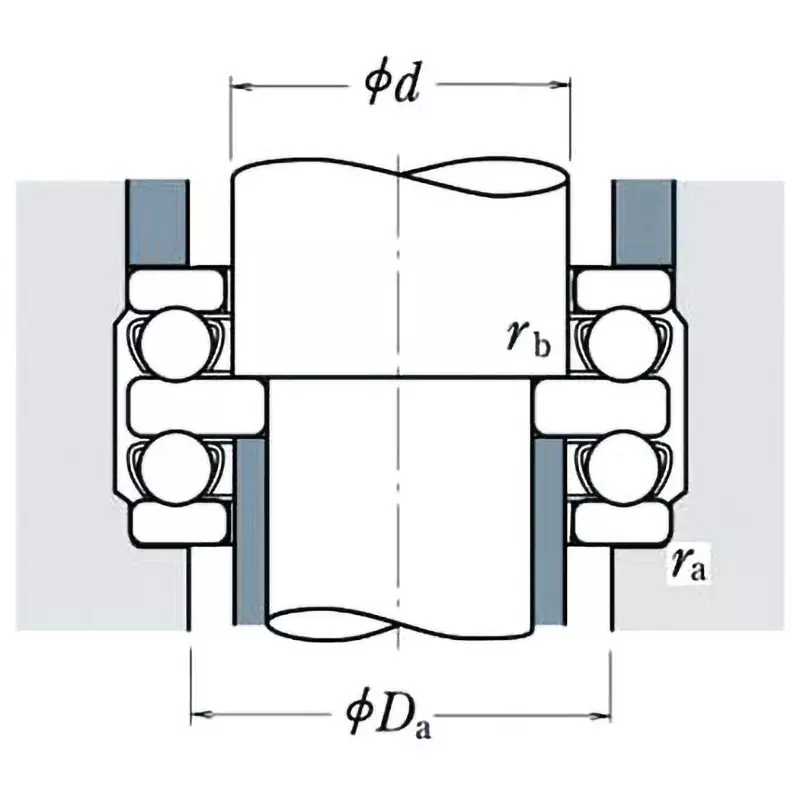

Mounting Dimension, Maximum ra (mm) |
1 |
Monotaro ID |
38398692 |
Dimension d1 (Φmm) |
67 |
Mounting Dimension, Maximum Da (Φmm) |
82 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
1900 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
2800 |
Mass (Kg) |
1.34 |
Nominal No. |
52213 |
Dimension R |
(Minimum) 1 mm |
Dimension t2 (mm) |
28.5 |
Dimension d2 (Φmm) |
55 |
Dimensions B (mm) |
10 |
Dimension r1 (mm) |
(Minimum) 0.6 |
Dimension d3 (Φmm) |
100 |
