| Inner Diameter | 110 mm |
| Outer Diameter | 190 mm |
| Material | High Carbon Chromium Steel |
| Type of Product | Single Thrust Ball Bearing 5353 Type (Aligning Seat Type) |
Inner Diameter |
110 mm |
Outer Diameter |
190 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Single Thrust Ball Bearing 5353 Type (Aligning Seat Type) |
Model No |
53322U |
Country of Origin |
Japan |
Width T (mm) |
63 |
Mounting Dimension, Maximum ra (mm) |
2 |
Monotaro ID |
38398342 |

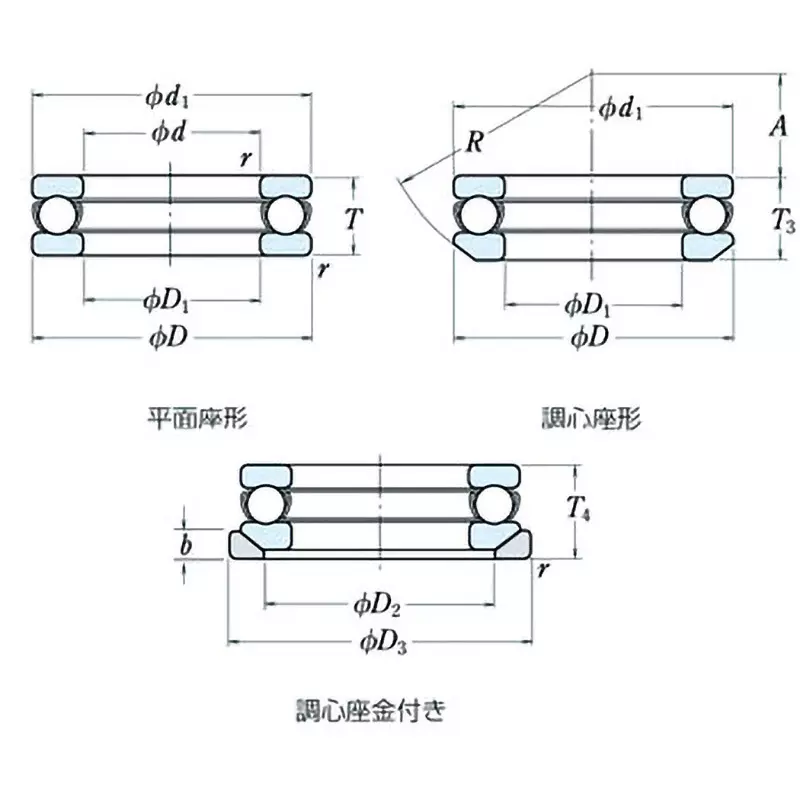

Dimension d1 (Φmm) |
113 |
Mounting Dimension, Maximum Da (Φmm) |
142 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
900 |
Mass (Kg) |
9.1 |
Nominal No. |
53322U |
Dimension d3 (mm) |
195 |
Dimension R |
(Minimum) 2 mm |
Mounting Dimension, Maximum da (mm) |
158 |
Dimension T4 (mm) |
72 |
Dimension T3 (mm) |
67.2 |
Dimension d2 (Φmm) |
150 |
Dimensions B (mm) |
20.5 |
Dimensions A (mm) |
51 |
