| Inner Diameter | 90 mm |
| Outer Diameter | 135 mm |
| Material | High Carbon Chromium Steel |
| Type of Product | Double Thrust Ball Bearing 52200 Type |
Inner Diameter |
90 mm |
Outer Diameter |
135 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Double Thrust Ball Bearing 52200 Type |
Model No |
52218 |
Country of Origin |
Japan |
Width T (mm) |
62 |
Basic load rating Coa (N) |
310000 |
JIS grade |
0 |
Basic load rating Ca (N) |
114000 |

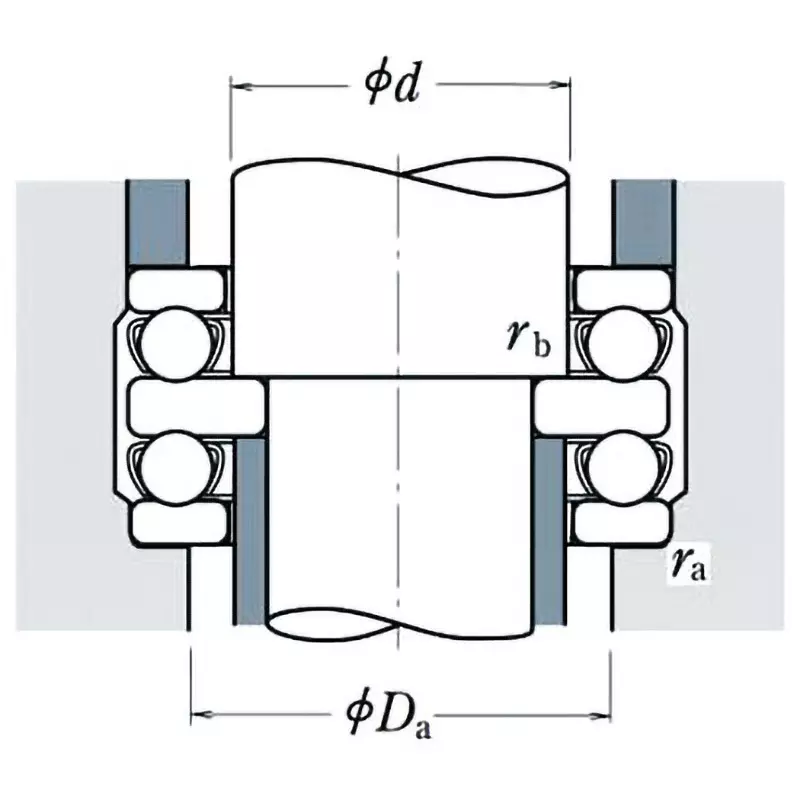

Mounting Dimension, Maximum ra (mm) |
1 |
Monotaro ID |
38398744 |

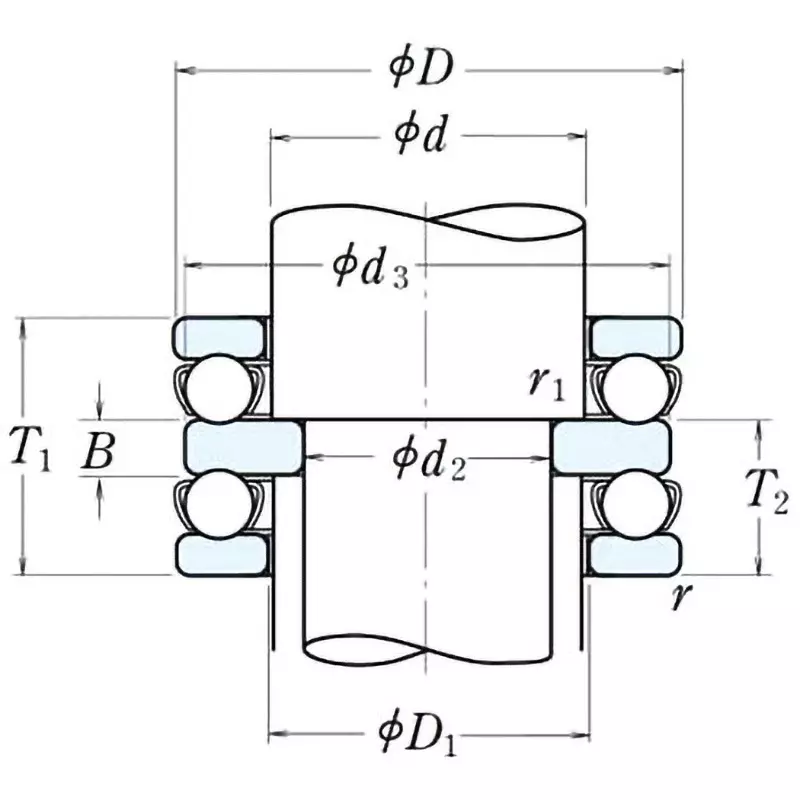

Dimension d1 (Φmm) |
93 |
Mounting Dimension, Maximum Da (Φmm) |
110 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
1400 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
2000 |
Mass (Kg) |
3.09 |
Nominal No. |
52218 |
Dimension R |
(Minimum) 1.1 mm |
Dimension t2 (mm) |
38 |
Dimension d2 (Φmm) |
75 |
Dimensions B (mm) |
14 |
Dimension r1 (mm) |
(Minimum) 1 |
Dimension d3 (Φmm) |
135 |
