| Inner Diameter | 17 mm |
| Outer Diameter | 35 mm |
| Material | High Carbon Chromium Steel |
| Type of Product | Single Thrust Ball Bearing 5353 Type (Aligning Seat Type) |
Inner Diameter |
17 mm |
Outer Diameter |
35 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Single Thrust Ball Bearing 5353 Type (Aligning Seat Type) |
Model No |
53203U |
Country of Origin |
Japan |
Mass (g) |
69 |
Width T (mm) |
12 |

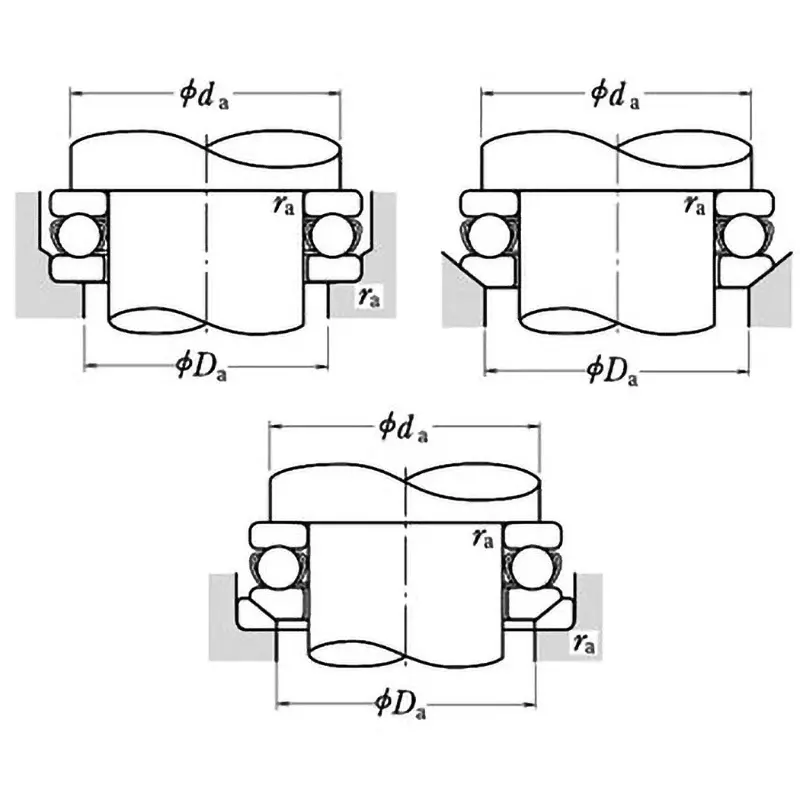

Mounting Dimension, Maximum ra (mm) |
0.6 |
Monotaro ID |
38397922 |

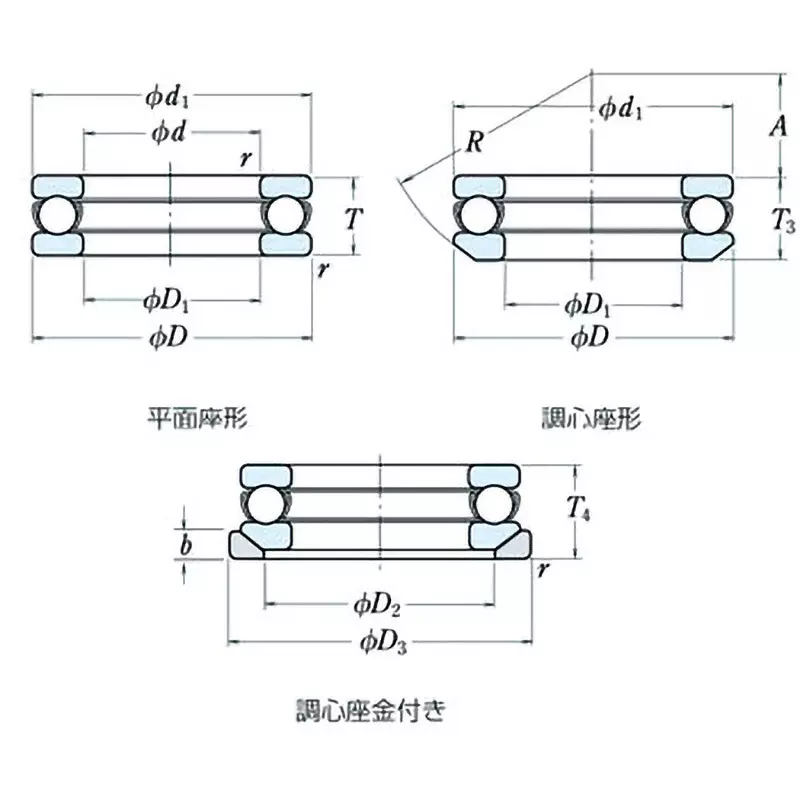

Dimension d1 (Φmm) |
19 |
Mounting Dimension, Maximum Da (Φmm) |
24 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
4800 |
Nominal No. |
53203U |
Dimension d3 (mm) |
38 |
Dimension R |
(Minimum) 0.6 mm |
Mounting Dimension, Maximum da (mm) |
28 |
Dimension T4 (mm) |
15 |
Dimension T3 (mm) |
13.2 |
Dimension d2 (Φmm) |
26 |
Dimensions B (mm) |
4 |
Dimensions A (mm) |
16 |
