| Inner Diameter | 40 mm |
| Outer Diameter | 78 mm |
| Material | High Carbon Chromium Steel |
| Type of Product | Double Thrust Ball Bearing Type 52300 |
Inner Diameter |
40 mm |
Outer Diameter |
78 mm |
Material |
High Carbon Chromium Steel |
Type of Product |
Double Thrust Ball Bearing Type 52300 |
Model No |
52308 |
Country of Origin |
Japan |
Width T (mm) |
49 |
Basic load rating Coa (N) |
135000 |
JIS grade |
0 |
Basic load rating Ca (N) |
70000 |

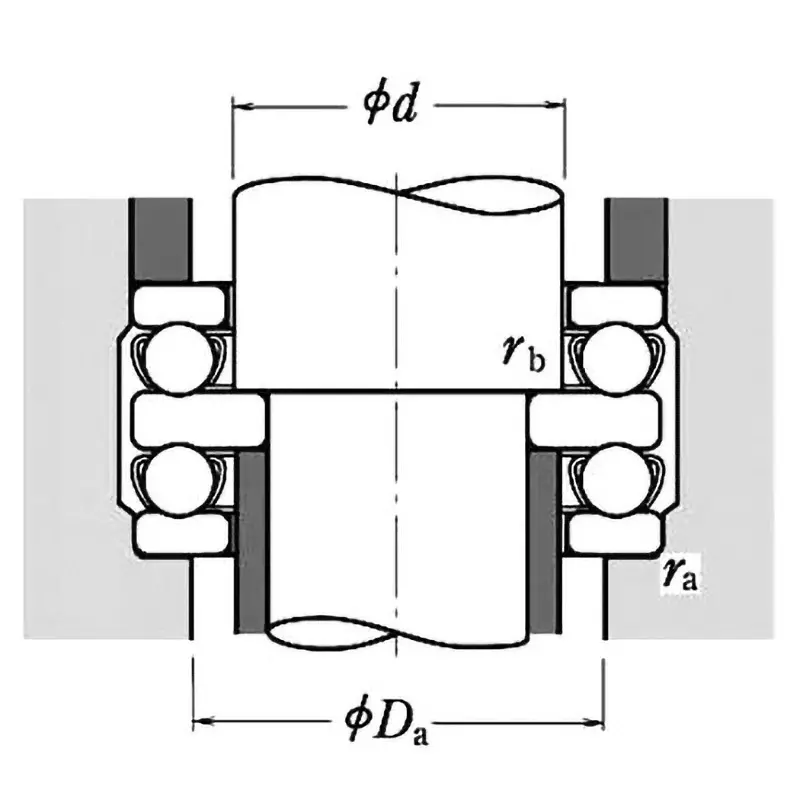

Mounting Dimension, Maximum ra (mm) |
1 |
Monotaro ID |
38398857 |

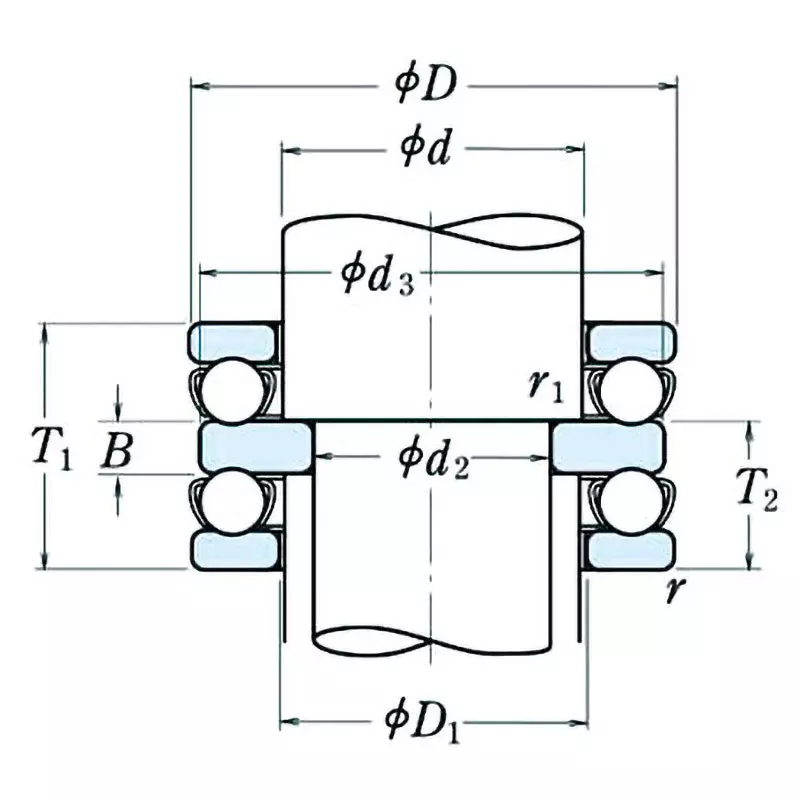

Dimension d1 (Φmm) |
42 |
Mounting Dimension, Maximum Da (Φmm) |
60 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
2000 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
3000 |
Mass (Kg) |
1.04 |
Nominal No. |
52308 |
Dimension R |
(Minimum) 1 mm |
Dimension t2 (mm) |
30.5 |
Dimension d2 (Φmm) |
30 |
Dimensions B (mm) |
12 |
Dimension r1 (mm) |
(Minimum) 0.6 |
Dimension d3 (Φmm) |
78 |
