Chat
Ships within 25 days
Outer Diameter
Model No
View
View
View
View
| Inner Diameter | 55 mm |
| Width | 16 mm |
| Outer Diameter | 78 mm |

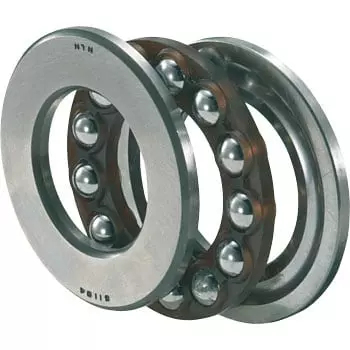

| Type of Product | Thrust Ball Bearing |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Inner Diameter |
55 mm |
Width |
16 mm |
Outer Diameter |
78 mm |
Type of Product |
Thrust Ball Bearing |
Model No |
51111 |
Country of Origin |
Japan |
Load direction |
radial |
Chamfering Size r (mm) |
0.6 (minimum) |
Outer ring type |
flat |
No. of Track Trains |
Single row |
Shield Shape |
Open type |
Race ring shape |
Thrust ball bearing |
Body Material |
High carbon chromium bearing steel |
Rolling element material |
High carbon chromium bearing steel |
JIS grade |
0 |
Basic dynamic load rating Ca (N) |
35000 |
Basic static load rating Coa (N) |
93000 |
Monotaro ID |
347042 |
Dimension d1 (Φmm) |
78 (maximum) |
Grease Limiting Speed (RPM) |
2800 |
Oil Limiting Speed (RPM) |
4000 |
Reference mass (g) |
226 |
Import Country |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corp. |
